JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSIONFIG.408A FRONT STABILIZERFIG.413A FRONT AXLEFIG.416A WHEEL HUB PIPINGFIG.430A REAR SUSPENSIONFIG.437A AXLE HOUSINGFIG.439A REAR AXLEFIG.449A ROAD WHEEL/TIREFIG.451A STEERING WHEELFIG.453A STEERING COLUMNFIG.480A STEERING UNITFIG.486A POWER STEERING OIL PUMPFIG.490A PEDAL/PEDAL BRACKETFIG.500A BRAKE MASTER CYLINDERFIG.503A BRAKE PIPINGFIG.510A ANTI LOCK BRAKE SYSTEMFIG.520A FRONT WHEEL BRAKEFIG.530A REAR WHEEL BRAKEFIG.542A PARKING BRAKEFIG.550A BODY MOUNTINGFIG.560A CHASSIS FRAME

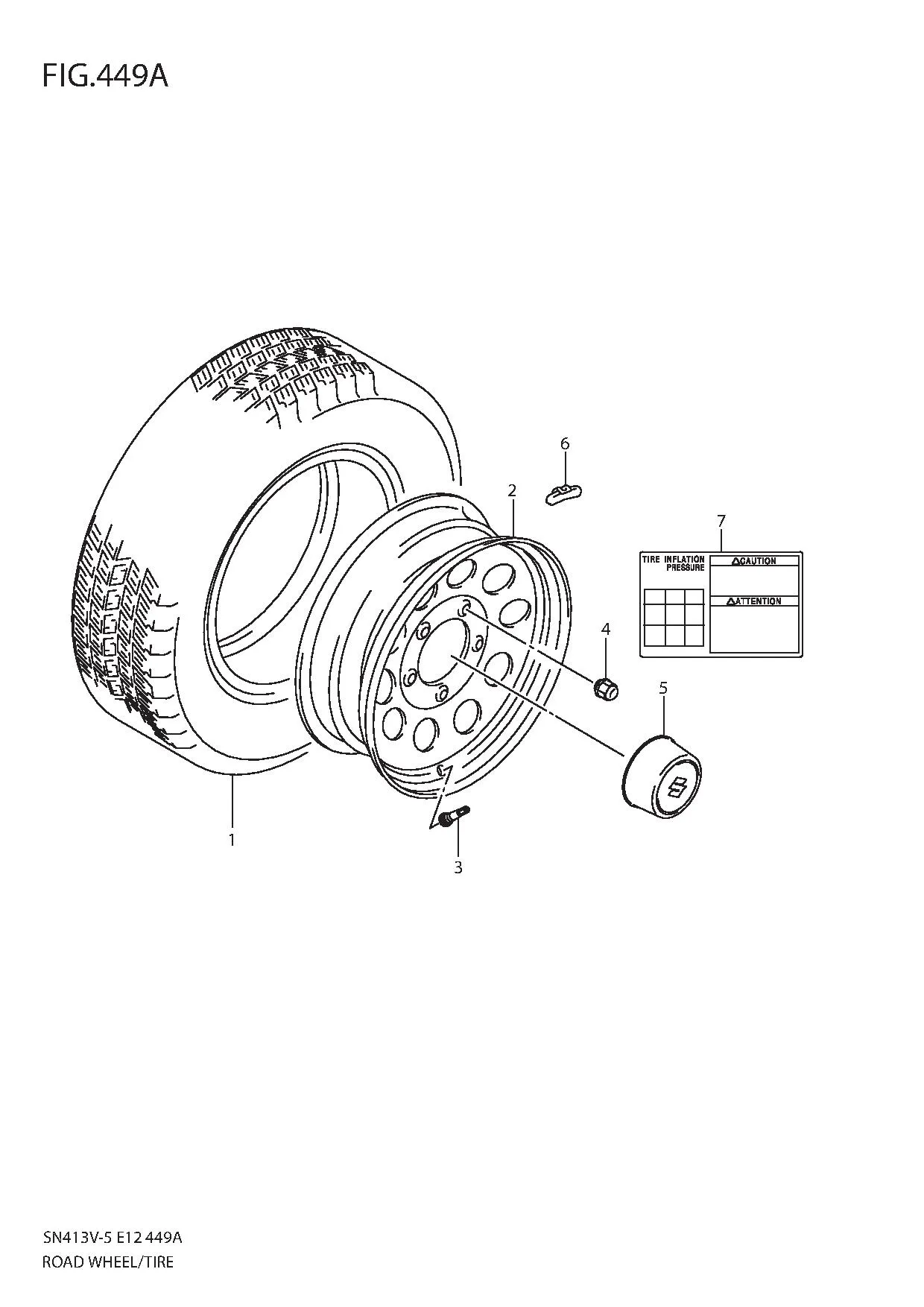

FIG.449A ROAD WHEEL/TIRE

FIG.449A ROAD WHEEL/TIRE
No No. Part Description Qty Price Per Pcs Remarks
1 43110-57M42-000 TIRE (205/70R15) (BS) 5 Rp3.172.000
2 43210-81A25-39M
SUB: 43210-81A24-39M		 WHEEL (15X5 1/2JJ) 5 Rp2.303.000
3 43130-78030-000 VALVE, TIRE (TR413) (BS) 5 Rp62.000
4 09159-12057-000 NUT 20 Rp51.000
5 43252-76J00-000 CAP, WHEEL CENTER 2 Rp180.000
6-1 43221-50J00-000 WEIGHT, WHEEL BALANCE (5G) 0 Rp35.000
6-2 43222-50J00-000 WEIGHT, WHEEL BALANCE (10G) 0 Rp42.000
6-3 43223-50J00-000 WEIGHT, WHEEL BALANCE (15G) 0 Rp47.000
6-4 43224-50J00-000 WEIGHT, WHEEL BALANCE (20G) 0 Rp48.500
6-5 43225-50J00-000 WEIGHT, WHEEL BALANCE (25G) 0 Rp53.000
6-6 43226-50J00-000 WEIGHT, WHEEL BALANCE (30G) 0 Rp57.000
6-7 43227-50J00-000 WEIGHT, WHEEL BALANCE (35G) 0 Rp58.000
6-8 43228-50J00-000 WEIGHT, WHEEL BALANCE (40G) 0 Rp61.000
6-9 43229-50J00-000 WEIGHT, WHEEL BALANCE (45G) 0 Rp65.000
7 79161-81A20-000 PLACARD, TIRE INFORMATION 1 Rp97.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
