GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body

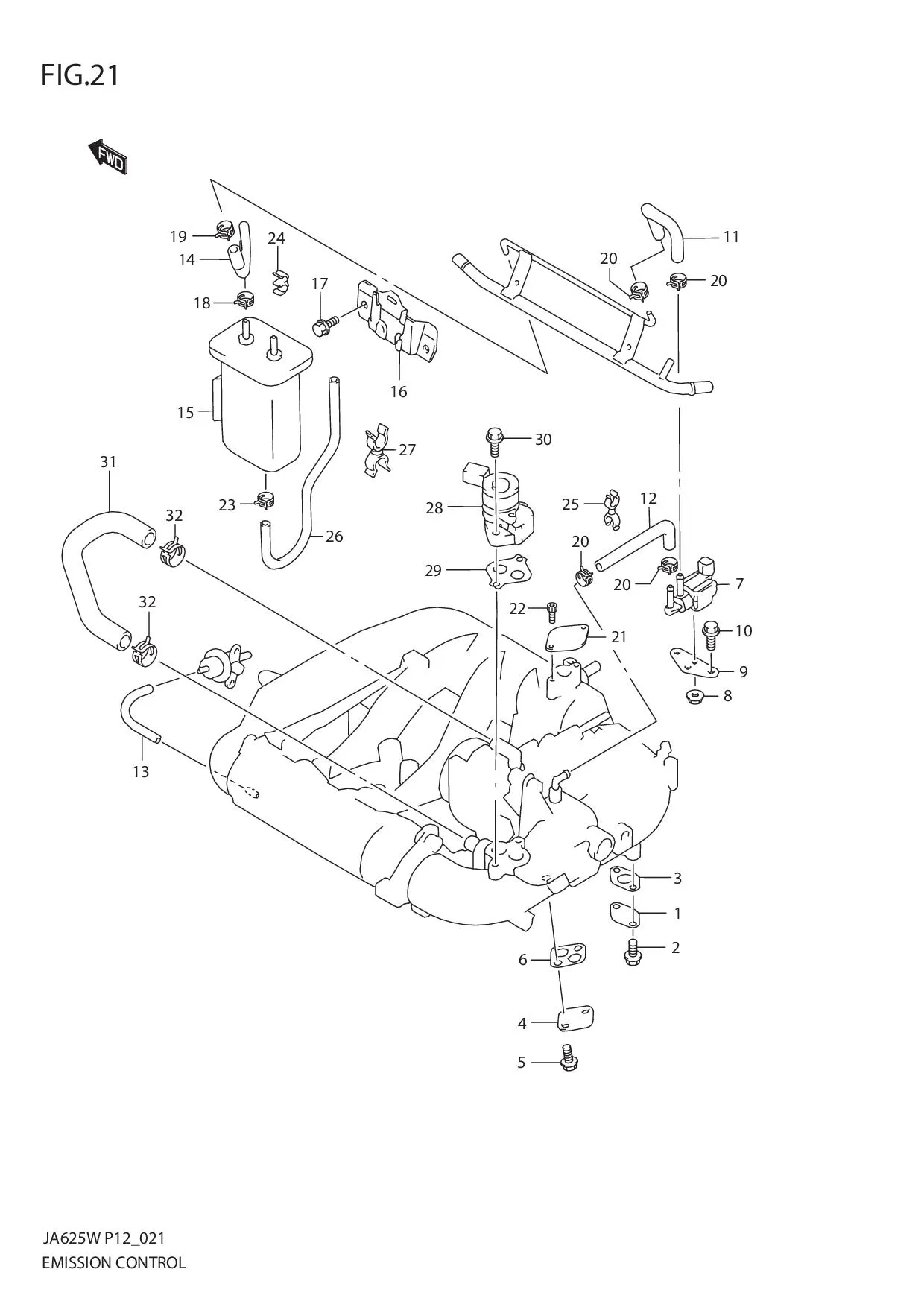

FIG.21 EMISSION CONTROL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	18492-77E00-000	PLATE, EGR PIPE	1	Rp33.000
2	DISCONTINUE SUB: 01550B06123N000	BOLT	2	-
3	18533-77E00-000	GASKET, EGR PIPE	1	Rp29.500
4	18491-77E00-000	PLATE, EGR VALVE	1	Rp39.000
5	01550-0816A-000 SUB: 01550M08163-000	BOLT	2	Rp6.000
6	18529M77E01-000	GASKET, EGR VALVE	1	Rp5.500
7	DISCONTINUE SUB: 18117-65D00-000	VALVE, EVAP CANISTER PURGE	1	-
8	08316-1006A-000 SUB: 08316-10063L000	NUT	1	Rp2.000
9	DISCONTINUE SUB: 18417-67D00-000	BRACKET, PURGE VALVE	1	-
10	DISCONTINUE SUB: 01550B06123N000	BOLT	2	-
11	09355-54115-600	HOSE, PURGE (PIPE TO VSV)	1	Rp106.500	L:600!200
12	09355-54115-600	HOSE, PURGE (VSV TO MANF)	1	Rp106.500	L:600!140
13	09355-35006-601 SUB: 09355-35754-601	HOSE, VAC (RGLTR TO PIPE)	1	Rp66.000	L:600!140
14	DISCONTINUE SUB: 09359-35751-600	HOSE, PURGE (CSTR TO PIPE)	1	-	L:600!260
15	18560-50G01-000	CANISTER	1	Rp1.185.500
16	DISCONTINUE SUB: 18570-65D40-000	BRACKET, CANISTER	1	-
17	01550-0812A-000 SUB: 01550B08123N000	BOLT	2	Rp3.500
18	DISCONTINUE SUB: 09401-06405-000	CLIP	1	-
19	09401-08411-000	CLIP	1	Rp12.500
20	09401-10409-000 SUB: 09401B10409N000	CLIP	4	Rp7.500
21	DISCONTINUE SUB: 18591-54D00-000	PLATE, P-SENSOR	1	-
22	07130-0510B-000	BOLT	2	-
23	09401-12405-000 SUB: 09401-12404-000	CLIP, CANISTER AIR HOSE	1	Rp16.500
24	09408-00033-000 SUB: 09408B00033N000	CLAMP, PURGE HOSE	1	Rp17.000
25	DISCONTINUE SUB: 09408-00138-000	CLAMP, PURGE HOSE	1	-
26	09355-70125-600	HOSE	1	Rp76.500	L:600!460
27	DISCONTINUE SUB: 09408-00050-000	CLAMP	1	-
28	18137-67D00-000	VALVE, IAC	1	Rp4.384.000
29	18134-67D00-000	GASKET, IAC VALVE	1	Rp54.500
30	DISCONTINUE SUB: 01550B06253N000	BOLT	2	-
31	18141-67D00-000	HOSE, IAC VALVE	1	Rp180.000
32	DISCONTINUE SUB: 09401-22405-000	CLIP	2	-
