GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANKSHAFTFIG.7 CAM SHAFTFIG.8 CAM CHAINFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCEL CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

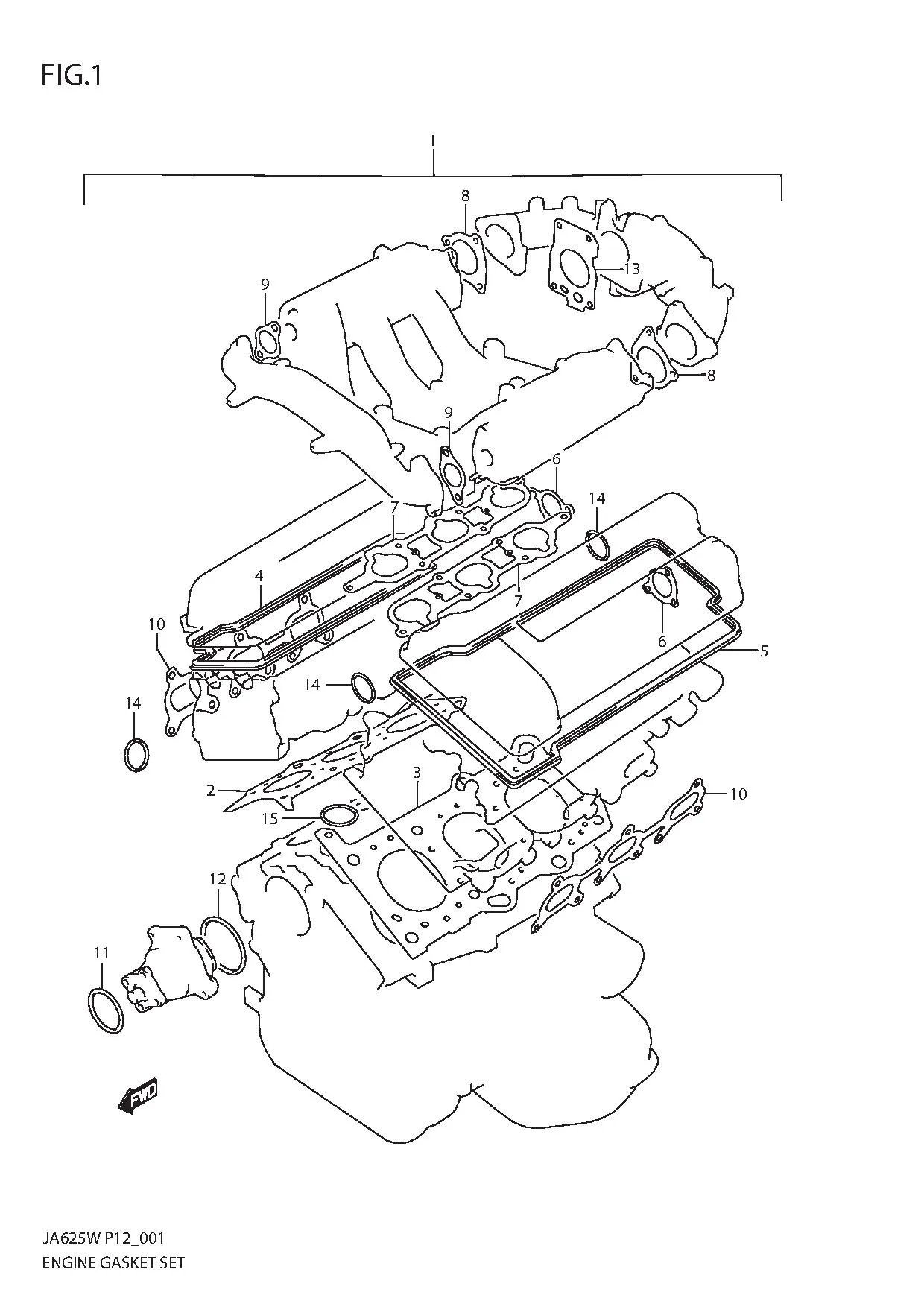

FIG.1 ENGINE GASKET SET

FIG.1 ENGINE GASKET SET
No No. Part Description Qty Price Per Pcs Remarks
1 11400-65874-000
SUB: 11400-65873-000		 GASKET SET, ENGINE 1 Rp3.614.000
2 11141-86FA1-000 •GASKET, CYLINDER HEAD RH 1 Rp1.024.000
3 11142-86FA1-000 •GASKET, CYLINDER HEAD LH 1 Rp1.024.000
4 11176-85FA0-000 •GASKET, CYL HEAD COVER RH 1 Rp290.000
5 11186-85FA0-000 •GASKET, CYL HEAD COVER LH 1 Rp290.000
6 17579-85FA0-000 •GASKET, WATER OUTLET CAP 2 Rp59.500
7 13119-77E00-000 •GASKET, INTAKE MANIFOLD 2 Rp146.500
8 13122-67D00-000 •GASKET, COLLECTOR 2 Rp57.500
9 13139-67D00-000 •GASKET, SURGE TANK PIPE 2 Rp44.500
10 14140-67D03-000
SUB: 14140-67D02-000		 •GASKET, EXHAUST MANIFOLD 2 Rp320.500
11 09280-62003-000 •O RING, WATER PUMP CASE NO.2 1 Rp43.500
12 09280-71003-000 •O RING, WATER PUMP CASE NO.1 1 Rp130.500
13 13421-77E00-000 •GASKET, THROTTLE BODY 1 Rp50.000
14 09280-34005-000 •O RING, WATER OUTLET PIPE 3 Rp28.000
15 09280-44008-000 •O RING, WATER PUMP 1 Rp35.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
