GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANKSHAFTFIG.7 CAM SHAFTFIG.8 CAM CHAINFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCEL CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

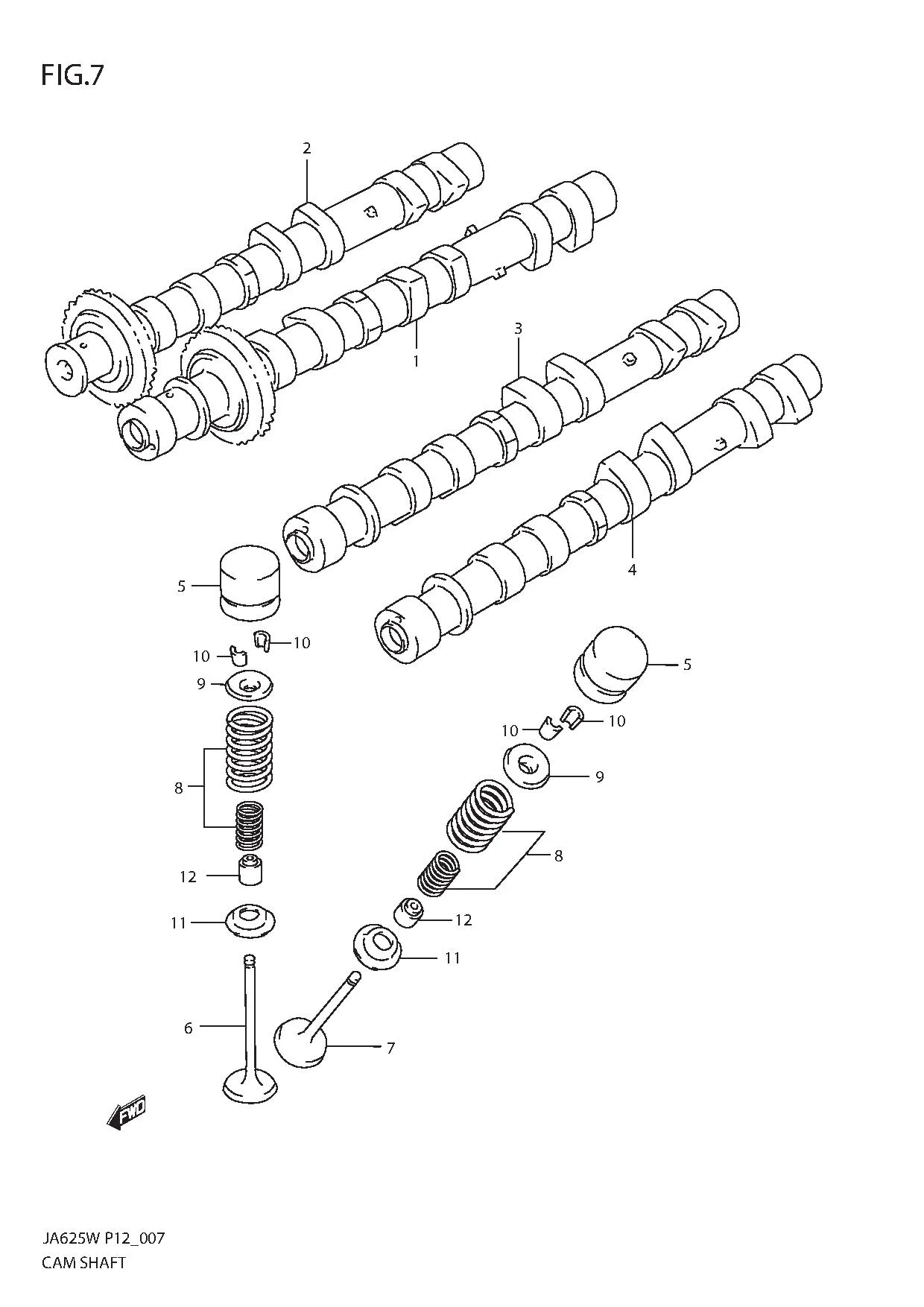

FIG.7 CAM SHAFT

FIG.7 CAM SHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 12710-85FA2-000		 CAM SHAFT, INTAKE RH 1 -
2 DISCONTINUE
SUB: 12720-85FA2-000		 CAM SHAFT, EXHAUST RH 1 -
3 DISCONTINUE
SUB: 12715-85FA2-000		 CAM SHAFT, INTAKE LH 1 -
4 DISCONTINUE
SUB: 12725-85FA2-000		 CAM SHAFT, EXHAUST LH 1 -
5 12891-86521-000 ADJUSTER, HYDRAULIC VALVE LASH 24 Rp1.088.000
6 12911-86FA2-000
SUB: 12911-86FA1-000		 VALVE, INTAKE 12 Rp216.000
7 12915-86F51-000
SUB: 12915-86F50-000		 VALVE, EXHAUST 12 Rp332.500
8 12920-62G00-000 SPRING SET, VALVE 24 Rp120.000
9 DISCONTINUE
SUB: 12931-62G10-000		 RETAINER, VALVE SPRING 24 -
10 12932-85FA0-000 COTTER, VALVE 48 Rp17.000
11 12933-62G01-000 SEAT, VALVE SPRING 24 Rp41.500
12 09289-06003-000 SEAL, OIL (6X13.6X10.2) 24 Rp43.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
