GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANKSHAFTFIG.7 CAM SHAFTFIG.8 CAM CHAINFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCEL CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

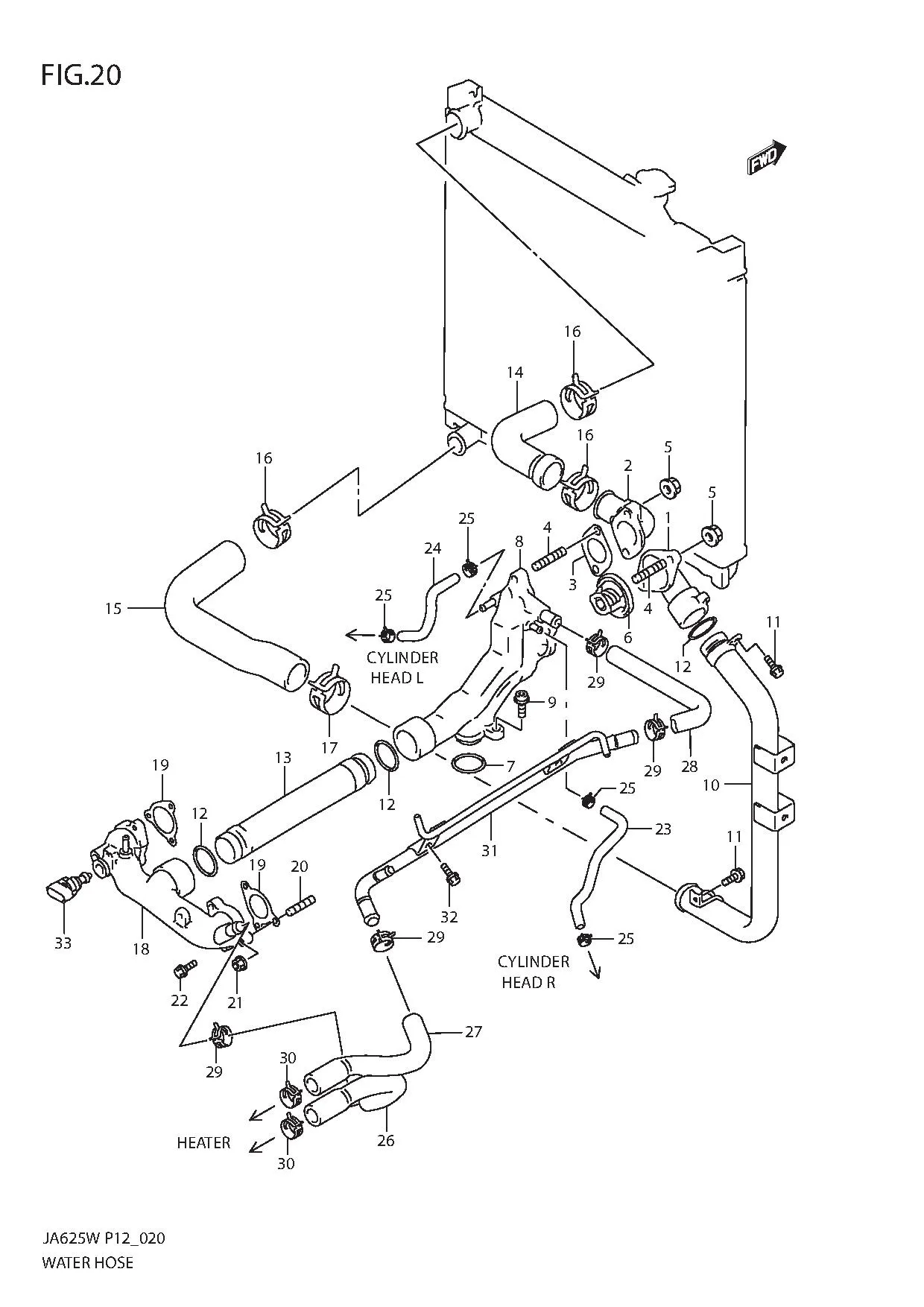

FIG.20 WATER HOSE

FIG.20 WATER HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 17561-67D01-000 CAP, WATER THERMOSTAT 1 Rp520.500
2 17571-67D00-000 CAP, WATER OUTLET 1 Rp423.500
3 17579-67D00-000 GASKET, WATER OUTLET CAP 1 Rp51.500
4 01421-0825A-000
SUB: 01421-08253-000		 STUD BOLT 4 Rp13.000
5 08316-1008A-000
SUB: 08316B10083N000		 NUT 4 Rp3.500
6 17670-77E11-000 THERMOSTAT, WATER (82ßC) 1 Rp324.000
7 09280-44008-000 O RING 1 Rp35.000
8 DISCONTINUE
SUB: 17690-67D01-000		 CASE, THERMOSTAT 1 -
9 07120-1025A-000 BOLT 3 -
10 17550-67D00-000 PIPE, WATER INLET 1 Rp636.500
11 DISCONTINUE
SUB: 01550B06123N000		 BOLT 2 -
12 09280-34005-000 O RING 3 Rp28.000
13 17589-77E00-000 PIPE, WATER OUTLET 1 Rp216.500
14 17841-77E00-000 HOSE, RADIATOR INLET 1 Rp216.500
15 17851-67D01-000 HOSE, RADIATOR OUTLET 1 Rp281.000
16 09401-35403-000
SUB: 09401-36403-000		 CLIP 3 Rp46.500
17 09401-35403-000
SUB: 09401-36403-000		 CLIP 1 Rp46.500
18 17570-67D10-000 CAP, WATER OUTLET 1 Rp1.484.000
19 17579-85FA0-000 GASKET, WATER OUTLET CAP 2 Rp59.500
20 01421-0620A-000
SUB: 01421-06203-000		 STUD BOLT 4 Rp3.500
21 08316-1006A-000
SUB: 08316-10063L000		 NUT 4 Rp2.000
22 01550-0620B-000
SUB: 01550-06203L000		 BOLT 2 Rp3.500
23 17857-77E00-000 HOSE, WATER HEAD RH 1 Rp112.000
24 17858-77E00-000 HOSE, WATER HEAD LH 1 Rp88.500
25 09401-10409-000
SUB: 09401B10409N000		 CLIP 4 Rp7.500
26 17871-67D20-000 HOSE, HEATER INLET 1 Rp121.500
27 17872-67D20-000 HOSE, HEATER OUTLET 1 Rp109.000
28 17873-77E01-000 HOSE, HEATER PIPE TO CASE 1 Rp142.500
29 11199M68K00-000
SUB: 09401-18403-000		 CLIP 4 Rp11.000
30 09401-21405-000 CLIP 2 Rp25.000
31 17880-67D00-000 PIPE, HEATER OUTLET 1 Rp599.500
32 DISCONTINUE
SUB: 01550B06123N000		 BOLT 2 -
33 13650-50G01-000 SENSOR, ENGINE COOLANT TEMP 1 Rp680.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
