GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANKSHAFTFIG.7 CAM SHAFTFIG.8 CAM CHAINFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCEL CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

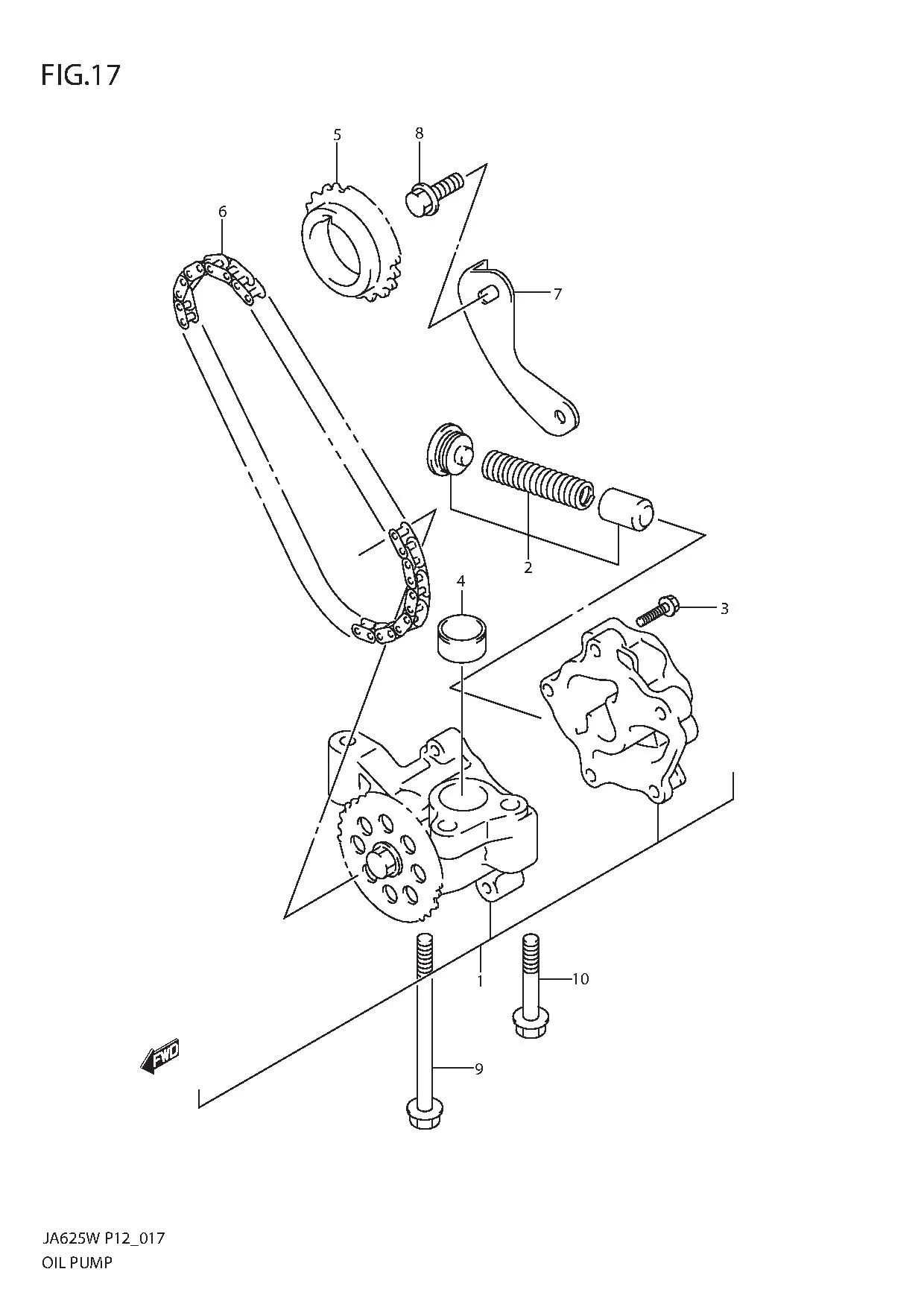

FIG.17 OIL PUMP

FIG.17 OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16100-85FA2-000 PUMP ASSY, OIL 1 Rp3.132.000
2 DISCONTINUE
SUB: 16150-85FA0-000		 •VALVE SET, RELIEF 1 -
3 07120-0625A-000 •BOLT 5 Rp19.000
4 16114-85FA2-000 PIN 1 Rp50.000
5 12632-67D00-000 SPROCKET, OIL PUMP DRIVE 1 Rp503.000
6 16760-85FA0-000 CHAIN, OIL PUMP DRIVE 1 Rp456.000
7 16781-85FA0-000 GUIDE, OIL PUMP CHAIN 1 Rp264.000
8 DISCONTINUE
SUB: 01550B06123N000		 BOLT 2 -
9 09103-08230-000 BOLT (8X100) 1 Rp27.000
10 01550-0850B-000
SUB: 01550-08503-000		 BOLT 2 Rp24.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
