GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANKSHAFTFIG.7 CAM SHAFTFIG.8 CAM CHAINFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCEL CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

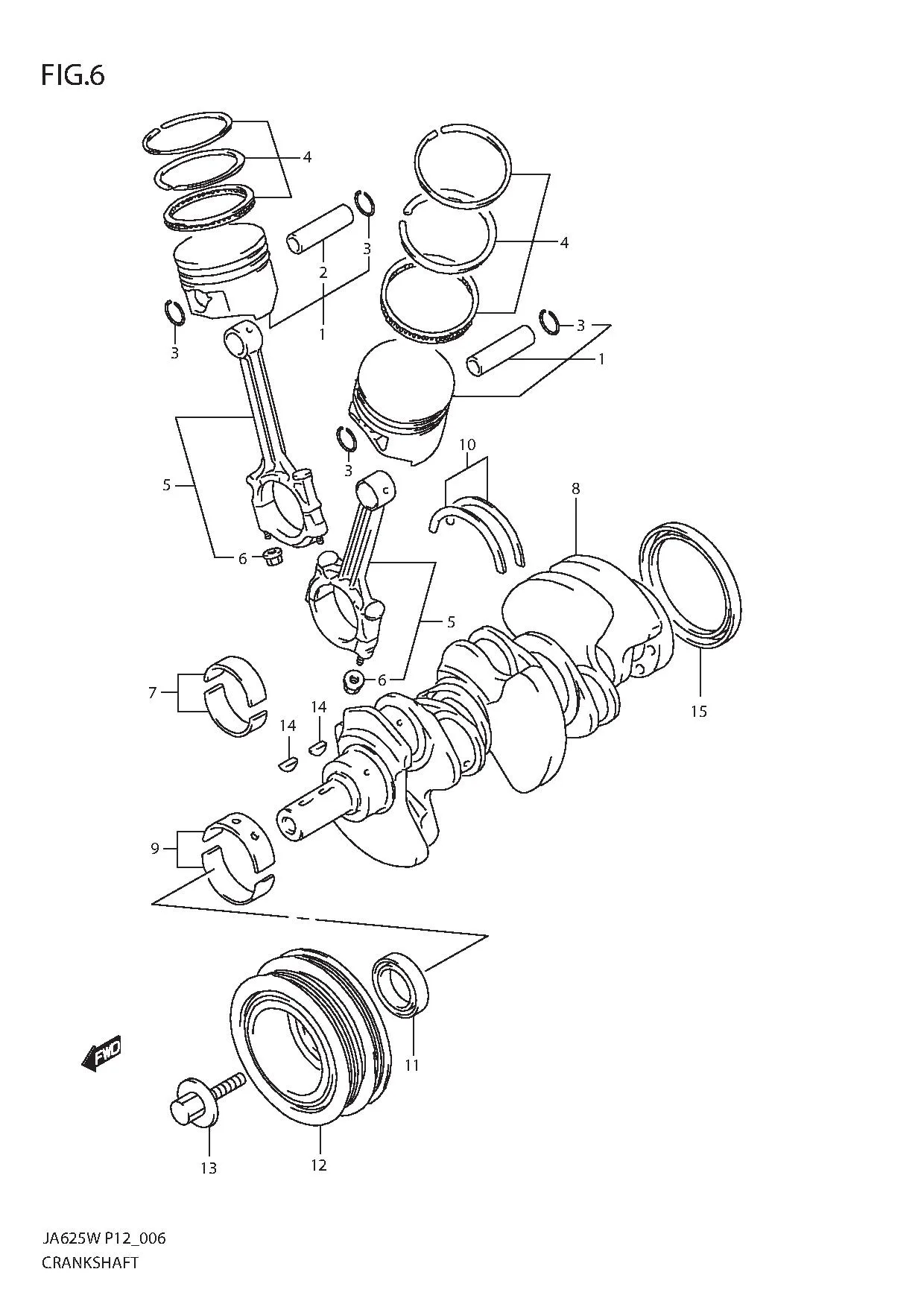

FIG.6 CRANKSHAFT

FIG.6 CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 12100-86830-0B0		 PISTON SET (STD:MARK 2) 6 -
1-3 12100-86831-050
SUB: 12100-86830-050		 PISTON SET (OS:0.50) 6 Rp1.174.500
1-1 12100-86831-0A0
SUB: 12100-86830-0A0		 PISTON SET (STD:MARK 1) 6 Rp1.174.500
2 12151-86FA0-000 •PIN, PISTON 6 Rp88.000
3 09381-21002-000 •RING, SNAP 12 Rp11.000
4-1 12140-86FA0-000 RING SET, PISTON (STD) 6 Rp690.500
4-2 12140-86FA0-050 RING SET, PISTON (OS:0.50) 6 Rp865.500
5 12160-86FB0-000
SUB: 12160-86FA1-000		 CONNROD ASSY 6 Rp1.265.500
6 DISCONTINUE
SUB: 09159-09005-000		 •NUT 12 -
7-2 12100-85824-0B0 BEARING SET, CONNROD (BLACK) 6 Rp289.500 STD,T:1.5
7-6 12100-85824-025
SUB: 12100-85823-025		 BEARING SET, CONNROD 6 Rp276.500 US:0.25,T:1.625
7-5 12100-85824-0E0
SUB: 12100-85823-0E0		 BEARING SET, CONNROD (BLUE) 6 Rp289.500 STD,T:1.5
7-4 12100-85824-0D0
SUB: 12100-85823-0D0		 BEARING SET, CONNROD (YELLOW) 6 Rp289.500 STD,T:1.5
7-3 12100-85824-0C0
SUB: 12100-85823-0C0		 BEARING SET, CONNROD (NON COLOR) 6 Rp246.000 STD,T:1.5
7-1 12100-85824-0A0
SUB: 12100-85823-0A0		 BEARING SET, CONNROD (GREEN) 6 Rp228.500 STD,T:1.5
8 DISCONTINUE
SUB: 12221-86FA0-000		 CRANKSHAFT 1 -
9-1 12340-86FA2-0B0 BEARING SET, CRANKSHAFT (BLACK) 4 Rp244.000 STD,T:2
9-10 12300-86812-0FA BEARING SET, CRANKSHAFT (RED/PINK) 4 Rp249.000 US:0.25,T:2.125
9-9 12300-86812-0EA BEARING SET, CRANKSHAFT (RED/BLUE) 4 Rp274.000 US:0.25,T:2.125
9-8 12300-86812-0DA BEARING SET, CRANKSHAFT (RED/YELLOW) 4 Rp274.000 US:0.25,T:2.125
9-7 12300-86812-0CA BEARING SET, CRANKSHAFT (RED) 4 Rp274.000 US:0.25,T:2.125
9-6 12300-86812-0BA BEARING SET, CRANKSHAFT (RED/BLACK) 4 Rp274.000 US:0.25,T:2.125
9-5 12340-86FA2-0F0 BEARING SET, CRANKSHAFT (PINK) 4 Rp274.000 STD,T:2
9-4 12340-86FA2-0E0 BEARING SET, CRANKSHAFT (BLUE) 4 Rp239.000 STD,T:2
9-3 12340-86FA2-0D0 BEARING SET, CRANKSHAFT (YELLOW) 4 Rp226.500 STD,T:2
9-2 12340-86FA2-0C0 BEARING SET, CRANKSHAFT (NON COLOR) 4 Rp219.000 STD,T:2
10-1 12300-85830-000 BEARING SET, CRANK THRUST 1 Rp158.000 STD,T:2.5
10-2 12300-85830-012 BEARING SET, CRANK THRUST 1 Rp190.500 OS:0.125,T:2.563
11 09283-45012-000
SUB: 09283-45011-000		 SEAL, OIL (45X63X7.5) 1 Rp173.500
12 12610-85FA1-000 PULLEY, CRANK SHAFT 1 Rp3.425.000
13 12615-85FA0-000 BOLT, CRANK SHAFT PULLEY 1 Rp172.500
14 08341M31059-000 KEY 2 Rp4.500
15 09283-98002-000 SEAL, OIL (98X116X10) 1 Rp479.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
