GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANKSHAFTFIG.7 CAM SHAFTFIG.8 CAM CHAINFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCEL CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

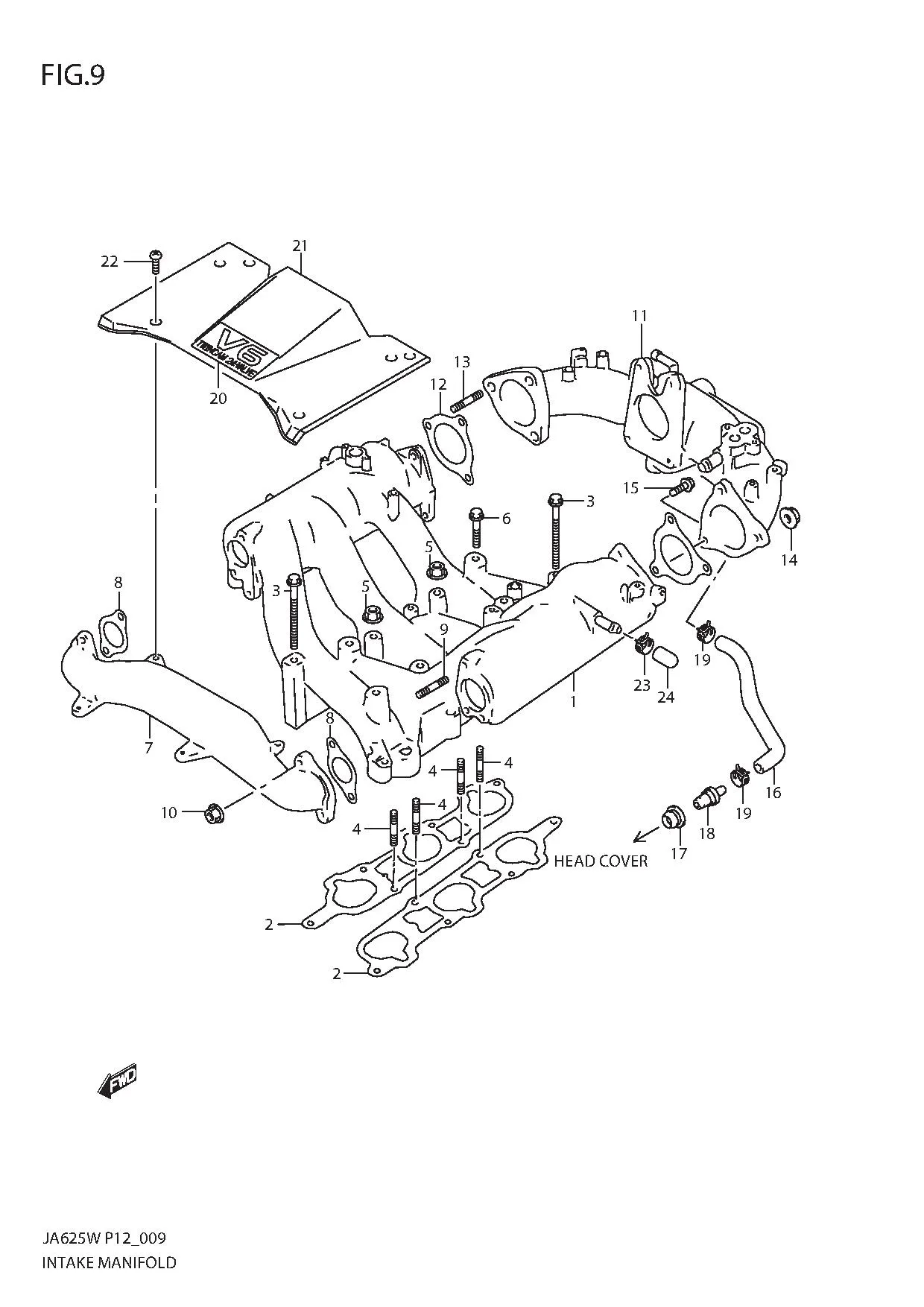

FIG.9 INTAKE MANIFOLD

FIG.9 INTAKE MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 13110-67D40-000		 MANIFOLD, INTAKE 1 -
2 13119-77E00-000 GASKET, INTAKE MANIFOLD 2 Rp146.500
3 09103-08230-000 BOLT (8X100) 2 Rp27.000
4 01421-0885A-000 STUD BOLT 4 Rp27.500
5 08316-1008A-000
SUB: 08316B10083N000		 NUT 4 Rp3.500
6 01550-0845A-000
SUB: 01550-08453-000		 BOLT 6 Rp18.000
7 DISCONTINUE
SUB: 13131-67D00-000		 PIPE, SURGE TANK 1 -
8 13139-67D00-000 GASKET, SURGE TANK PIPE 2 Rp44.500
9 01421-0825A-000
SUB: 01421-08253-000		 STUD BOLT 4 Rp13.000
10 08316-1008A-000
SUB: 08316B10083N000		 NUT 4 Rp3.500
11 DISCONTINUE
SUB: 13140-67D10-000		 COLLECTOR, INTAKE 1 -
12 13122-67D00-000 GASKET, COLLECTOR 2 Rp57.500
13 01421-0825A-000
SUB: 01421-08253-000		 STUD BOLT 4 Rp13.000
14 08316-1008A-000
SUB: 08316B10083N000		 NUT 4 Rp3.500
15 01550-0825A-000
SUB: 01550-08253-000		 BOLT 2 Rp3.500
16 DISCONTINUE
SUB: 11193-77E00-000		 HOSE, PCV 1 -
17 11198M79F00-000
SUB: 11198M58B00-000		 SEAL, PCV VALVE 1 Rp16.500
18 18118-77E00-000 VALVE, PCV 1 Rp408.000
19 09401-13414-000 CLAMP 2 Rp18.000
20 11965-77E11-000 LABEL, V6 1 Rp89.500
21 DISCONTINUE
SUB: 13170-77E02-000		 COVER, SURGE TANK 1 -
22 09125-06105-000 SCREW (6X20) 4 Rp24.000
23 DISCONTINUE
SUB: 09251-09003-000		 PLUG, UNION 1 -
24 09401-13414-000 CLIP, PLUG 1 Rp18.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
