GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANKSHAFTFIG.7 CAM SHAFTFIG.8 CAM CHAINFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCEL CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

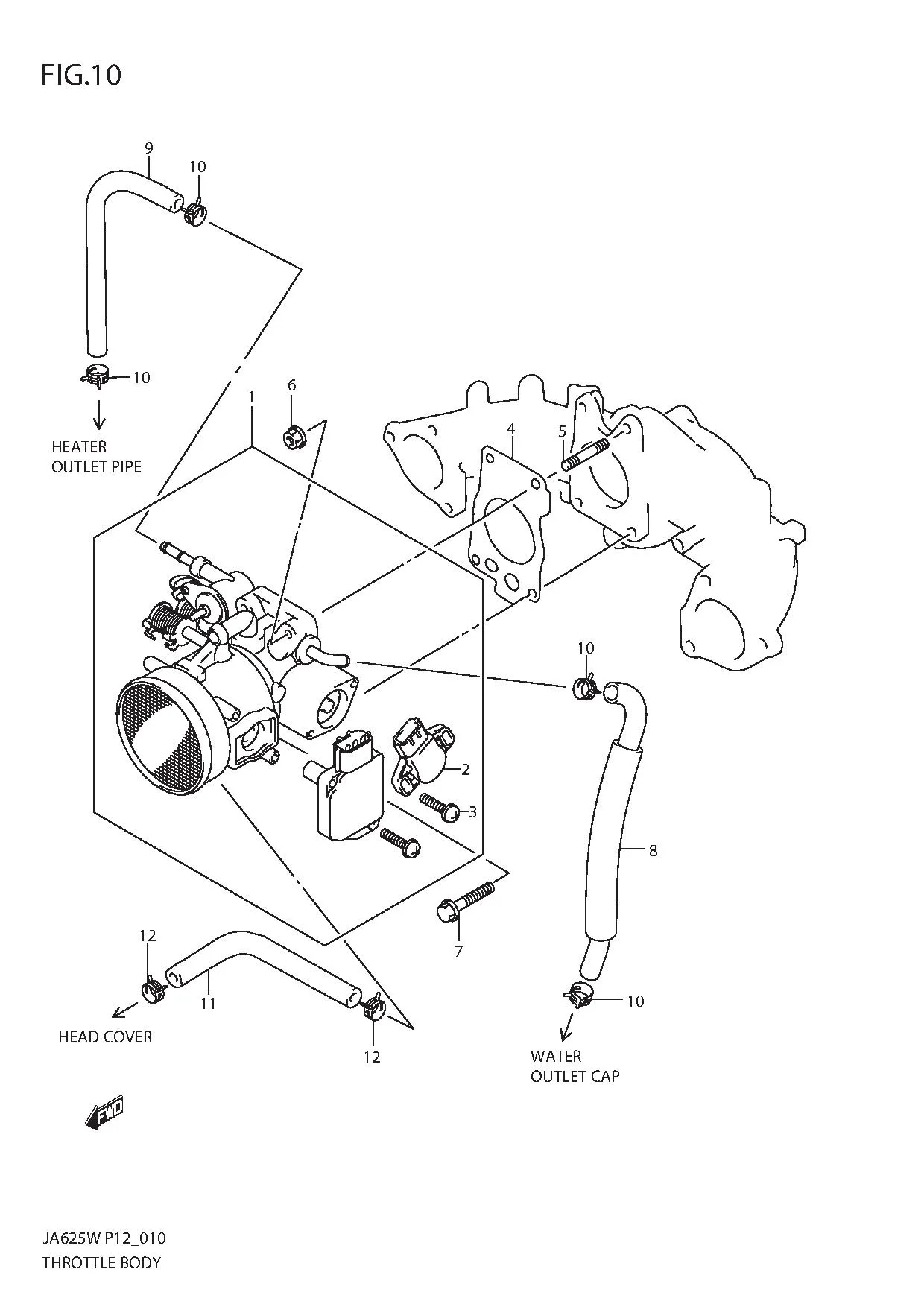

FIG.10 THROTTLE BODY

FIG.10 THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13400-67D00-000 BODY ASSY, THROTTLE 1 Rp19.903.500
2 13420-77E00-000 •SENSOR, THROTTLE POSITION 1 Rp3.573.500
3 02112-74203-000 •SCREW 2 -
4 13421-77E00-000 GASKET, THROTTLE BODY 1 Rp50.000
5 01421-0835A-000
SUB: 01421-08353-000		 STUD BOLT 2 Rp13.500
6 08316-1008A-000
SUB: 08316B10083N000		 NUT 2 Rp3.500
7 01550-0840B-000
SUB: 01550-08403-000		 BOLT 2 Rp5.500
8 11190-77810-000
SUB: 13491-77E01-000		 HOSE, WATER THROTTLE INLET 1 Rp587.500
9 09356-75141-600 HOSE, WATER THROTTLE OUTLET 1 Rp73.500 L:600!210
10 09401-12410-000 CLIP 4 Rp15.000
11 09355-13207-600 HOSE, BREATHER 1 Rp146.000 L:600!170
12 11199M68K00-000
SUB: 09401M18404-000		 CLIP 2 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
