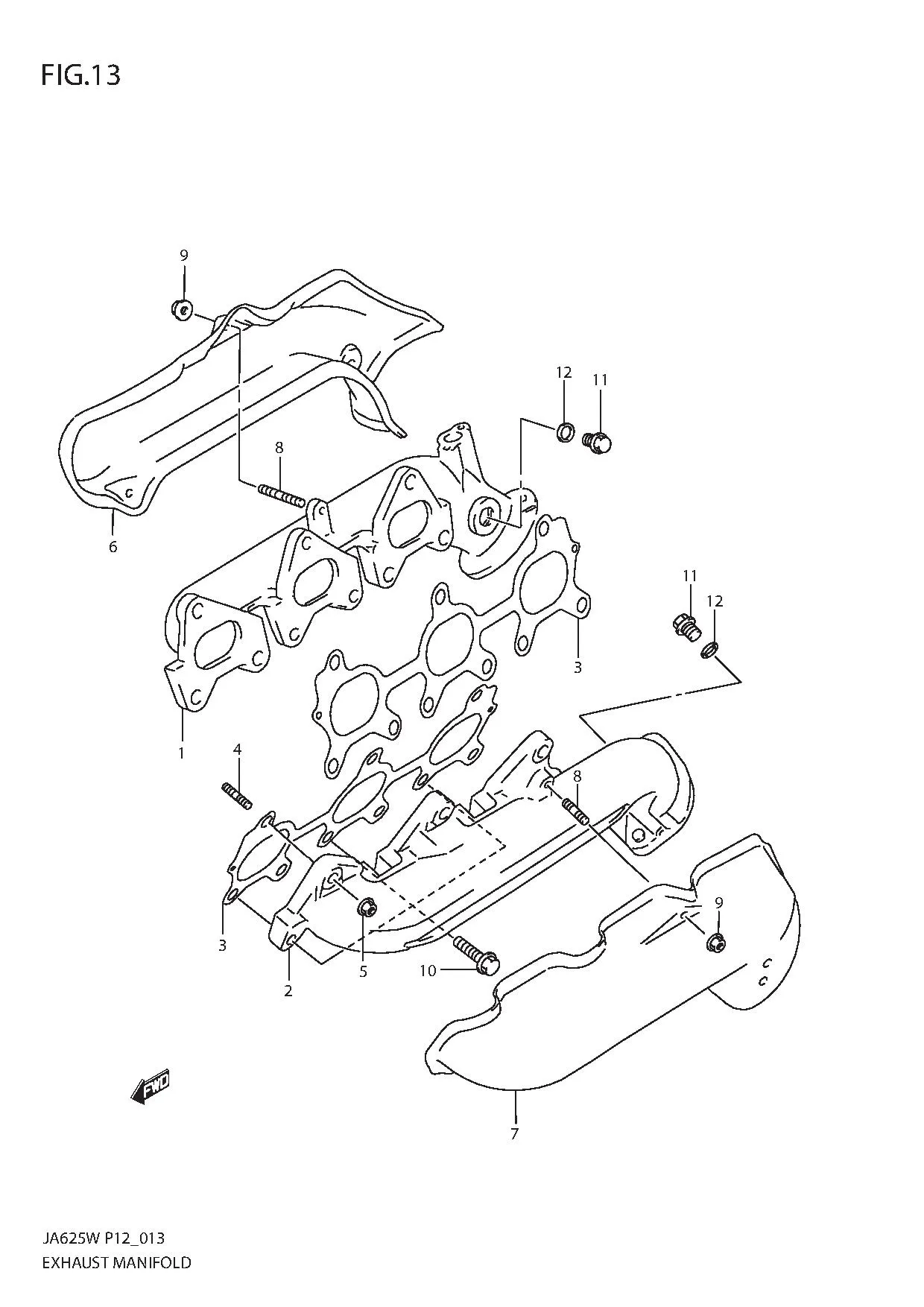

FIG.13 EXHAUST MANIFOLD

FIG.13 EXHAUST MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 14111-77E00-000		 MANIFOLD, EXHAUST RH 1 -
2 DISCONTINUE
SUB: 14112-77EV0-000		 MANIFOLD, EXHAUST LH 1 -
3 14140-67D03-000
SUB: 14140-67D02-000		 GASKET, EXHAUST MANIFOLD 2 Rp320.500
4 DISCONTINUE
SUB: 14118-77E00-000		 STUD BOLT 12 -
5 DISCONTINUE
SUB: 09159-08034-000		 NUT 12 -
6 DISCONTINUE
SUB: 14120-77E01-000		 COVER, EXHAUST MANIFOLD RH 1 -
7 DISCONTINUE
SUB: 14130-77E01-000		 COVER, EXHAUST MANIFOLD LH 1 -
8 01411-0612A-000
SUB: 01411M06123-000		 STUD BOLT 6 Rp11.500
9 09159-06077-000 NUT 6 Rp17.500
10 DISCONTINUE
SUB: 14118-67D00-000		 BOLT 6 -
11 DISCONTINUE
SUB: 09247-18003-000		 PLUG, SENSOR 2 -
12 DISCONTINUE
SUB: 09168-18008-000		 GASKET 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
