GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANKSHAFTFIG.7 CAM SHAFTFIG.8 CAM CHAINFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCEL CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

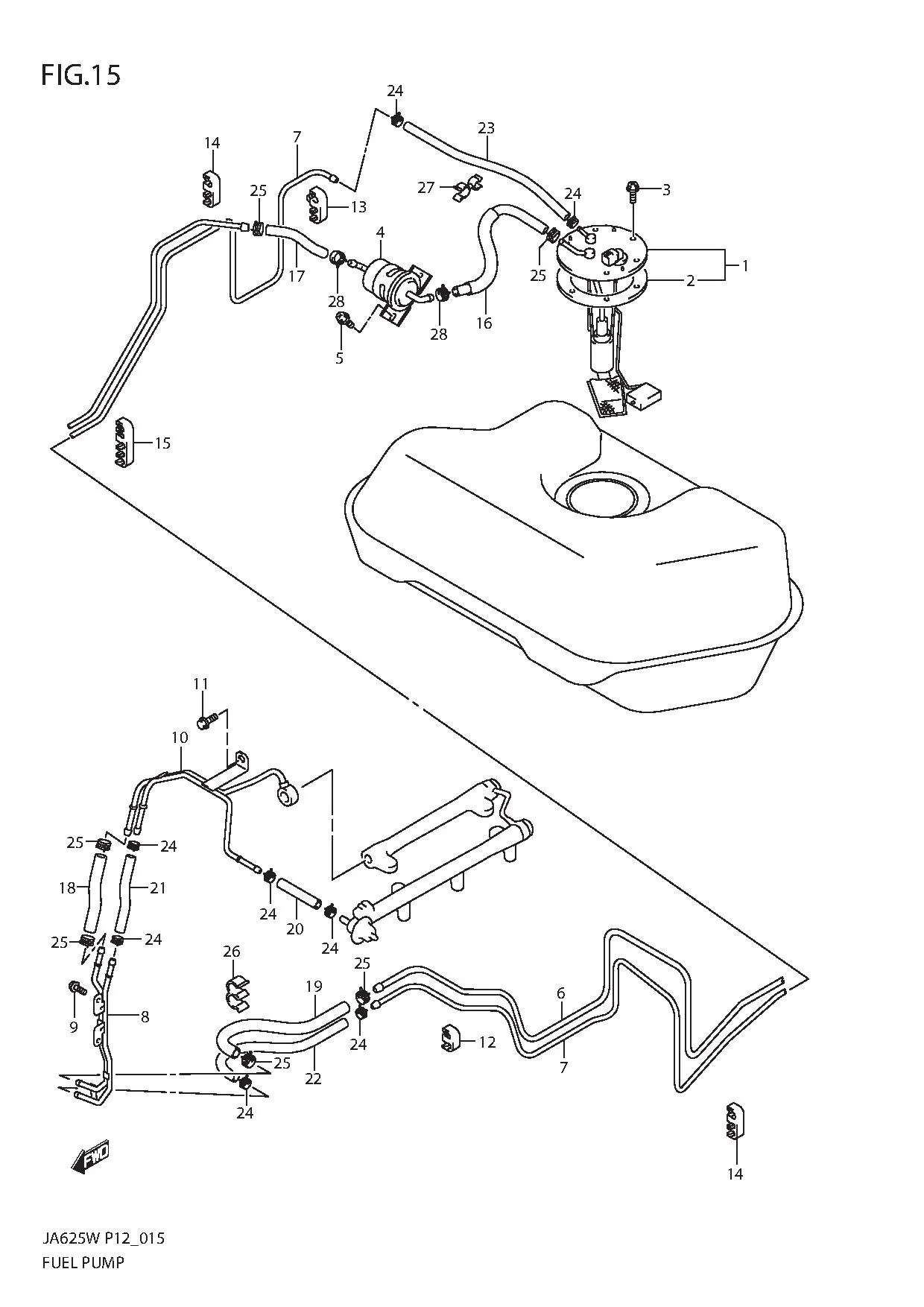

FIG.15 FUEL PUMP

FIG.15 FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 15100-52D60-000		 PUMP ASSY, FUEL 1 -
2 DISCONTINUE
SUB: 15111-52D00-000		 •GASKET, FUEL PUMP 1 -
3 02162-0610A-000
SUB: 02162-06103-000		 SCREW 6 Rp5.000
4 15410-52D00-000 FILTER, FUEL 1 Rp447.500
5 02162-0612B-000
SUB: 02162-06123-000		 BOLT 2 Rp16.000
6 DISCONTINUE
SUB: 15821-52D00-000		 PIPE, FUEL 1 -
7 DISCONTINUE
SUB: 15861-52D00-000		 PIPE, FUEL RETURN 1 -
8 DISCONTINUE
SUB: 15840-52D01-000		 PIPE, FUEL NO.2 1 -
9 DISCONTINUE
SUB: 01550B06123N000		 BOLT 2 -
10 DISCONTINUE
SUB: 15850-67D01-000		 PIPE, FUEL (ENG SIDE) 1 -
11 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
12 DISCONTINUE
SUB: 15892-78E10-000		 CLAMP 1 -
13 DISCONTINUE
SUB: 15893-56B00-000		 CLAMP 2 -
14 15893-60A11-000 CLAMP 3 Rp27.000
15 DISCONTINUE
SUB: 15895-60A11-000		 CLAMP 8 -
16 DISCONTINUE
SUB: 15815-52D00-000		 HOSE, FILTER INLET 1 -
17 09356-75147-600 HOSE, FILTER OUTLET 1 Rp464.000 L:600!120
18 09356-75147-600 HOSE, PIPE TO ENGINE 1 Rp464.000 L:600!160
19 09356-75147-600 HOSE, NO.1 TO NO.2 1 Rp464.000 L:600!200
20 DISCONTINUE
SUB: 15856-52D00-000		 HOSE, ENG SIDE 1 -
21 09356-55117-600 HOSE, ENGINE TO PIPE 1 Rp666.000 L:600!170
22 09356-55117-600 HOSE, NO.2 TO NO.1 1 Rp666.000 L:600!210
23 09356-55117-600 HOSE, PIPE TO PUMP 1 Rp666.000 L:600!350
24 09401-10409-000
SUB: 09401B10409N000		 CLIP, FUEL RTN HOSE 8 Rp7.500
25 09401-13419-000 CLIP, FUEL HOSE 6 Rp26.500
26 DISCONTINUE
SUB: 09408-00083-000		 CLAMP 1 -
27 DISCONTINUE
SUB: 09408-00174-000		 CLAMP 1 -
28 09401-13419-000 CLIP 2 Rp26.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
