GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANKSHAFTFIG.7 CAM SHAFTFIG.8 CAM CHAINFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCEL CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

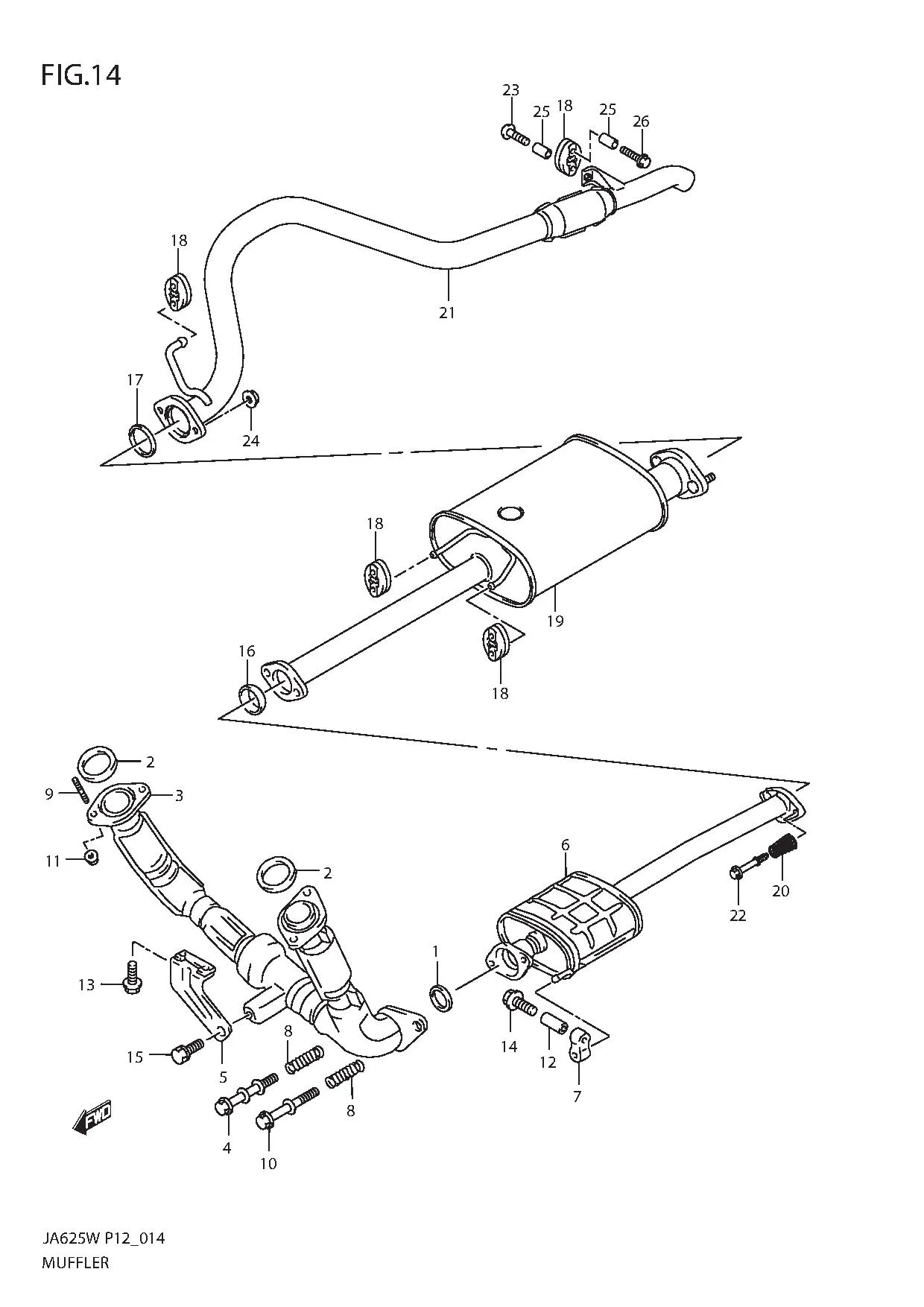

FIG.14 MUFFLER

FIG.14 MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14183-65D00-000 SEAL RING 1 Rp161.000
2 14184-60G00-000 GASKET 2 Rp74.500
3 DISCONTINUE
SUB: 14190B77E23N000		 PIPE, EXHAUST NO.1 1 -
4 DISCONTINUE
SUB: 14193-77E00-000		 BOLT 1 -
5 DISCONTINUE
SUB: 14221-77E12-000		 BRACKET 1 -
6 DISCONTINUE
SUB: 14250-65D41L000		 PIPE, EXHAUST NO.2 1 -
7 14281-71C01-000 MOUNTING 1 Rp87.500
8 14492-67D00-000
SUB: 14492-82600-000		 SPRING 2 Rp64.000
9 09108-10122-000 STUD BOLT 4 Rp35.000
10 09119-10073-000
SUB: 09119-10042-000		 BOLT (10X65) 1 Rp75.000
11 09159-10098-000 NUT 4 Rp33.000
12 09180M08095-000
SUB: 09180-08057-000		 SPACER (8.2X12.5X23.5) 1 Rp7.000
13 01550-0820A-000
SUB: 01550-08203-000		 BOLT 2 Rp5.500
14 01550-0835B-000
SUB: 01550B08353N000		 BOLT 1 Rp4.500
15 01550-1020A-000
SUB: 01550-10203-000		 BOLT 1 Rp21.000
16 14183-65D00-000 SEAL RING 1 Rp161.000
17 14182-58B10-000 GASKET 1 Rp70.000
18 14281-58B01-000 MOUNTING 4 Rp139.500
19 14300-52D21-000 MUFFLER 1 -
20 14492-67D00-000
SUB: 14492-82600-000		 SPRING 2 Rp64.000
21 14630-52D0V-000 PIPE, MUFFLER TAIL 1 -
22 09119-10073-000
SUB: 09119-10042-000		 BOLT (10X65) 2 Rp75.000
23 DISCONTINUE
SUB: 09139-08019-000		 SCREW (8X35) 1 -
24 09159M10049-000 NUT 2 Rp10.500
25 09180M08095-000
SUB: 09180-08057-000		 SPACER (8.2X12.5X23.5) 2 Rp7.000
26 01550-0835B-000
SUB: 01550B08353N000		 BOLT 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
