  5. FIG.3 CYLINDER

GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANKSHAFTFIG.7 CAM SHAFTFIG.8 CAM CHAINFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCEL CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

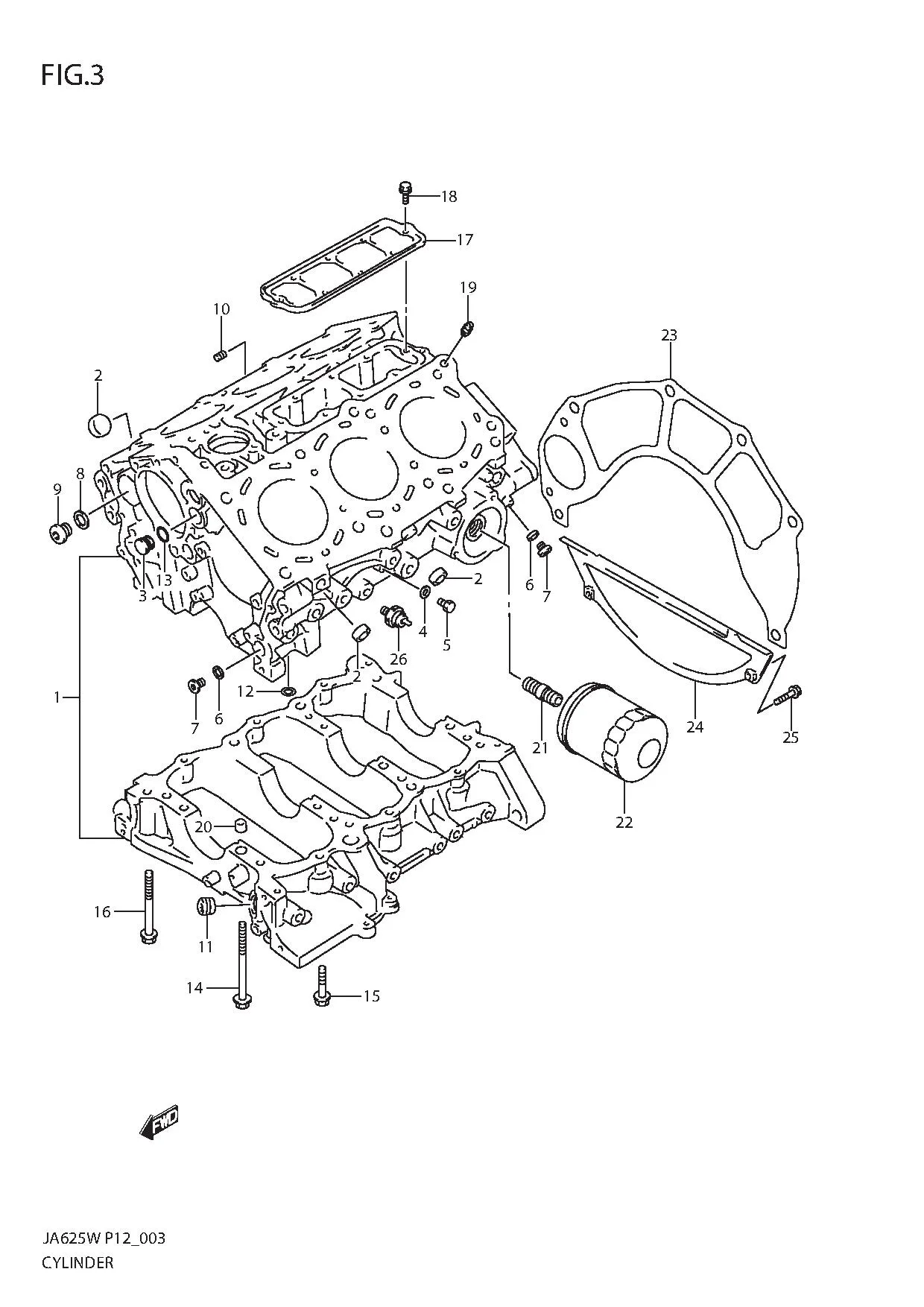

FIG.3 CYLINDER

FIG.3 CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 11200-86FA3-000		 BLOCK ASSY, CYLINDER 1 -
2 09241M30010-000
SUB: 09241-30009-000		 •PLUG 7 Rp5.500
3 DISCONTINUE
SUB: 11214-85FA1-000		 •PLUG 1 -
4 DISCONTINUE
SUB: 09168-10031-000		 •GASKET (10.2X20X2.3) 2 -
5 09103-10286-000 •BOLT (10X12) 2 Rp24.000
6 11216-77E00-000 •GASKET 5 Rp21.000
7 09248-18005-000 •PLUG 5 Rp65.500
8 11217-85FA0-000 •GASKET 1 Rp25.000
9 09248-26001-000 •PLUG 1 Rp94.000
10 09246M05003-000
SUB: 09246M05006-000		 •PLUG 1 Rp7.000
11 09246-16021-000
SUB: 09246-16010-000		 •PLUG 1 Rp48.000
12 09280-22020-000 •O RING (D:2.4,ID:21.8) 1 Rp19.000
13 09280-22019-000 •O RING (D:1.9,ID:21.8) 1 Rp15.500
14 11251-85FA1-000 •BOLT, CRANKCASE 16 Rp57.500
15 01550-0840B-000
SUB: 01550-08403-000		 •BOLT 6 Rp5.500
16 01550-0885B-000 •BOLT 1 -
17 11271-85FA0-000 •PLATE, CYLINDER BLOCK 1 Rp176.500
18 DISCONTINUE
SUB: 01550B06123N000		 •BOLT 8 -
19 16450-85FA1-000 •VALVE, CHECK 2 Rp129.000
20 04211M13189-000 •PIN 5 Rp9.000
21 11241-86FA0-000 •STAND, OIL FILLER 1 Rp88.000
22 16510-85FA0-000 FILTER ASSY, OIL 1 Rp229.500
23 DISCONTINUE
SUB: 11311-85F10-000		 PLATE, CLUTCH HOUSING 1 -
24 DISCONTINUE
SUB: 11320-85F11-000		 PLATE, CLUTCH HOUSING LOWER 1 -
25 DISCONTINUE
SUB: 01550B06253N000		 BOLT 2 -
26 37820-820P0-000
SUB: 37820-82001-000		 SWITCH ASSY, OIL PRESSURE 1 Rp127.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
