GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANKSHAFTFIG.7 CAM SHAFTFIG.8 CAM CHAINFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCEL CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

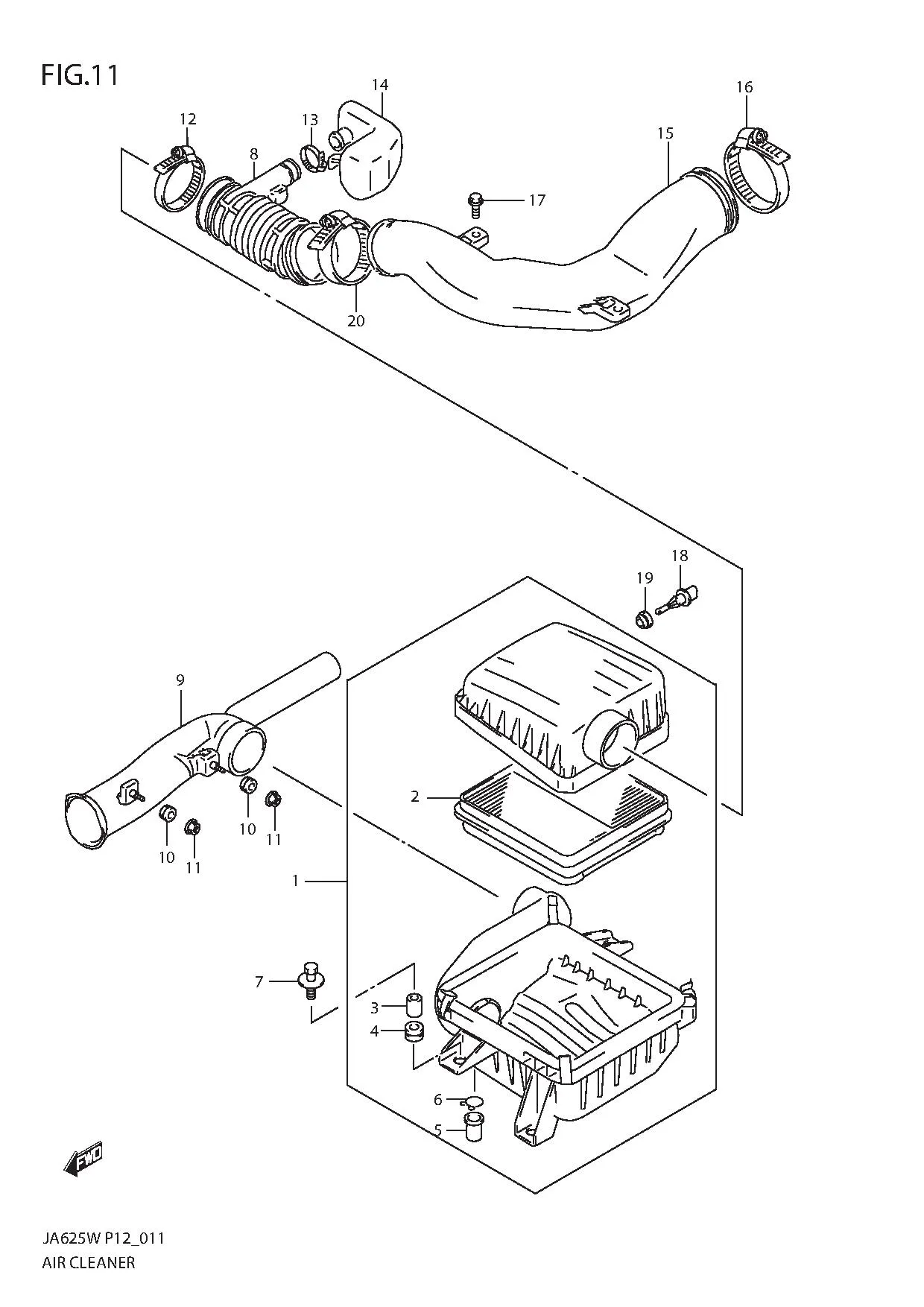

FIG.11 AIR CLEANER

FIG.11 AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-68D02-000 CLEANER ASSY, AIR 1 Rp3.338.000
2 13780-77E00-000 •ELEMENT, AIR CLEANER 1 Rp308.000
3 13877-65D00-000 •SPACER 3 Rp45.000
4 13878-65D00-000 •CUSHION 3 Rp43.000
5 DISCONTINUE
SUB: 13875-78E00-000		 •CAP, DRAIN 1 -
6 DISCONTINUE
SUB: 13876-78E00-000		 •CLIP 1 -
7 09116-06172-000 BOLT (6X30) 3 Rp19.500
8 13881-77E01-000 HOSE, AIR CLEANER OUTLET 1 Rp707.000
9 DISCONTINUE
SUB: 13820-67D00-000		 CASE, AIR CLEANER SUCTION 1 -
10 DISCONTINUE
SUB: 13874-51E50-000		 CUSHION 2 -
11 09159-06081-000 NUT 2 Rp14.500
12 09402-70503-000
SUB: 09402-82511-000		 CLAMP 1 Rp91.500
13 DISCONTINUE
SUB: 13893-65D00-000		 CLAMP 1 -
14 DISCONTINUE
SUB: 13761-77E01-000		 RESONATOR 1 -
15 DISCONTINUE
SUB: 13830-67D00-000		 PIPE, AIR INTAKE 1 -
16 DISCONTINUE
SUB: 09402-00512-000		 CLAMP 1 -
17 01550-0616A-000
SUB: 01550-06163-000		 BOLT 2 Rp3.500
18 13650-52G00-000 SENSOR, INLET AIR TEMPERATURE 1 Rp762.500
19 13655-77E10-000
SUB: 13655-77E00-000		 GROMMET 1 Rp30.000
20 DISCONTINUE
SUB: 13891-65D00-000		 CLAMP 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
