GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANKSHAFTFIG.7 CAM SHAFTFIG.8 CAM CHAINFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCEL CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

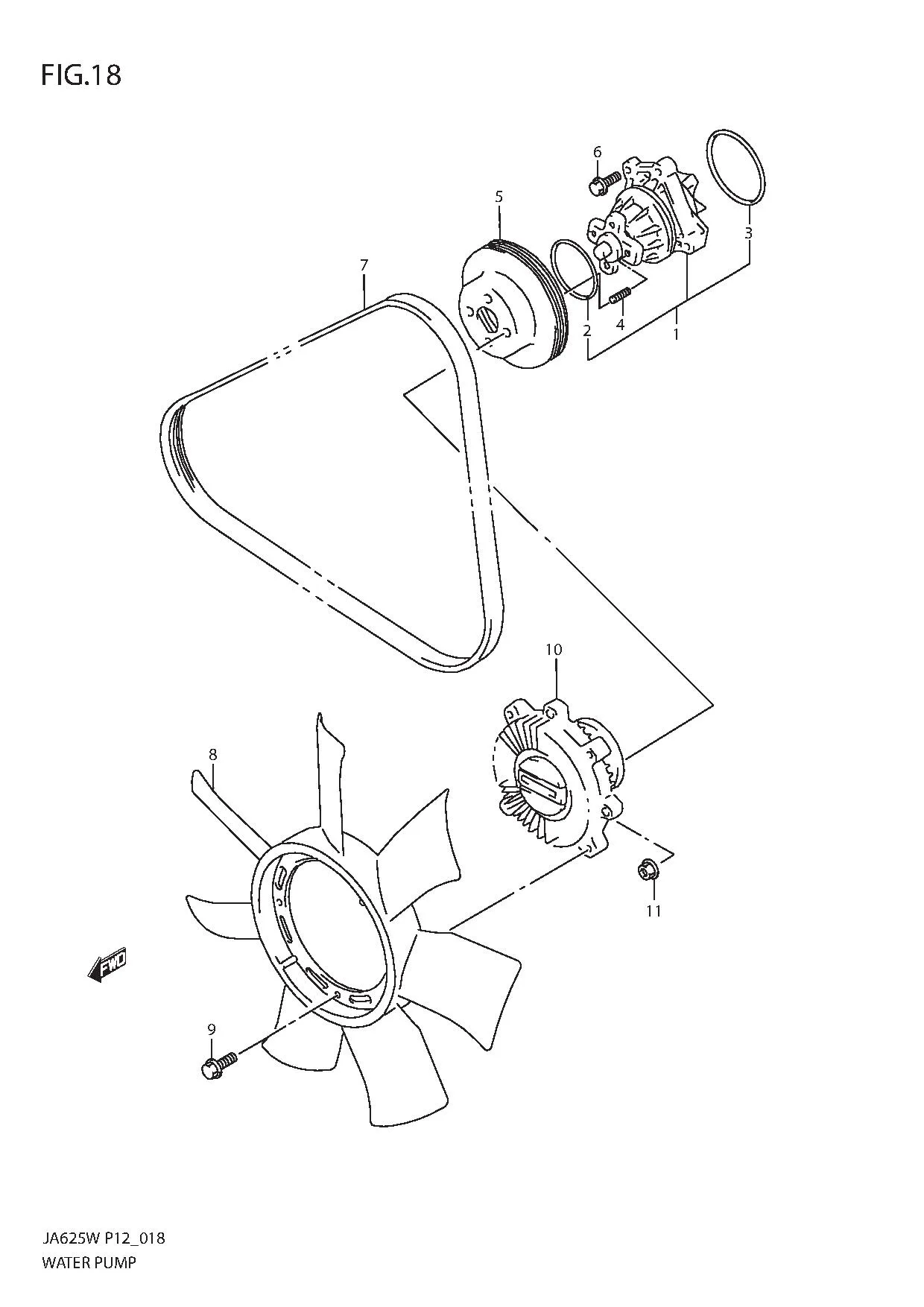

FIG.18 WATER PUMP

FIG.18 WATER PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 17400-85832-000
SUB: 17400-85830-000		 PUMP SET, WATER 1 Rp1.439.500
2 09280-62003-000 •O RING 1 Rp43.500
3 09280-71003-000 •O RING 1 Rp130.500
4 09108-08244-000 •STUD BOLT 4 Rp19.500
5 17511-85FA1-000
SUB: 17511-85FA0-000		 PULLEY, WATER PUMP 1 Rp617.000
6 01550-0830B-000
SUB: 01550-08303L000		 BOLT 4 Rp3.000
7 17521-85FA0-000
SUB: 17521B85FA0N000		 BELT, GENERATOR/WATER PUMP 1 Rp90.000
8 17110-65D00-000 FAN, ENGINE COOLING 1 Rp714.500
9 01550-0620B-000
SUB: 01550-06203L000		 BOLT 4 Rp3.500
10 17120-52D03-000
SUB: 17120-52D01-000		 CLUTCH ASSY, FAN 1 Rp2.709.500
11 08316-1008A-000
SUB: 08316B10083N000		 NUT 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
