  3. GRANDESCUDO XL7 JA625W
  4. Engine
  5. FIG.4 OIL PAN

GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANKSHAFTFIG.7 CAM SHAFTFIG.8 CAM CHAINFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCEL CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

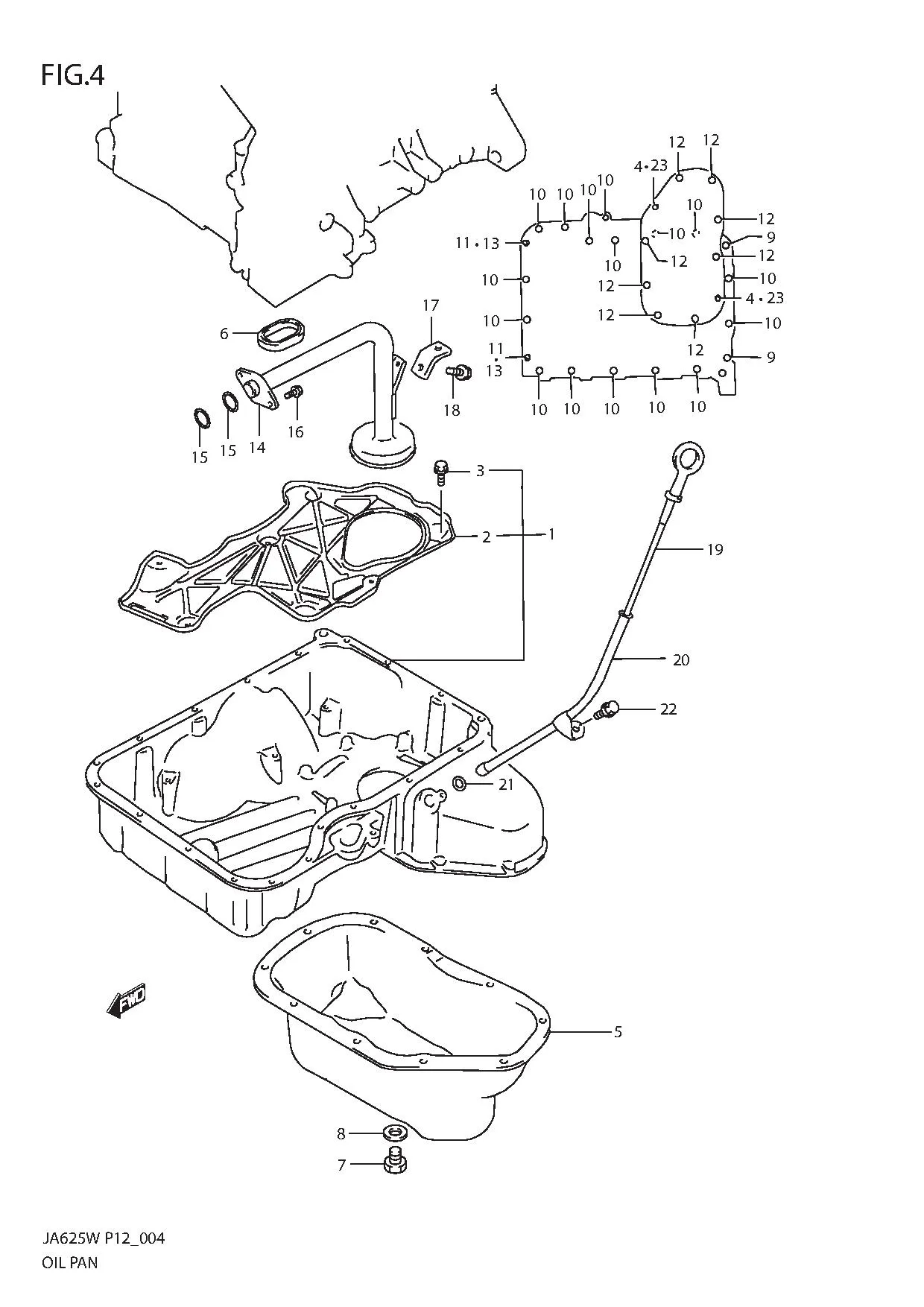

FIG.4 OIL PAN

FIG.4 OIL PAN
No No. Part Description Qty Price Per Pcs Remarks
1 11500-85813-000
SUB: 11500-85810-000		 PAN SET, OIL UPPER 1 Rp5.839.500
2 DISCONTINUE
SUB: 11512-85F11-000		 •PLATE, OIL PAN BUFFLE 1 -
3 DISCONTINUE
SUB: 01550B06123N000		 •BOLT 7 -
4 01421-0612A-000
SUB: 01421-06123-000		 •STUD BOLT 2 Rp23.000
5 DISCONTINUE
SUB: 11520-85F10-000		 PAN, OIL LOWER 1 -
6 16532-85F11-000 O RING, OIL PAN 1 Rp51.000
7 09247-14044-000
SUB: 09247M14027-000		 PLUG 1 Rp18.000
8 09168-14015-000
SUB: 09168M14015-000		 GASKET (14X20X1.5) 1 Rp7.500
9 09103-08230-000 BOLT (8X100) 2 Rp27.000
10 DISCONTINUE
SUB: 01550B06253N000		 BOLT 16 -
11 01421-0620A-000
SUB: 01421-06203-000		 STUD BOLT 2 Rp3.500
12 09117-06061-000 BOLT (6X16) 8 Rp17.000
13 08316-1006A-000
SUB: 08316-10063L000		 NUT 2 Rp2.000
14 DISCONTINUE
SUB: 16520-85F11-000		 STRAINER, OIL PUMP 1 -
15 09280-22020-000 O RING 2 Rp19.000
16 01550-0616A-000
SUB: 01550-06163-000		 BOLT 2 Rp3.500
17 DISCONTINUE
SUB: 16527-85F10-000		 BRACKET, OIL STRAINER NO.2 1 -
18 DISCONTINUE
SUB: 01550B06123N000		 BOLT 2 -
19 16910-85F12-000 GAUGE, OIL LEVEL 1 Rp162.000
20 16930-85F11-000 GUIDE, OIL LEVEL GAUGE 1 Rp210.500
21 09280-10016-000 O RING 1 Rp19.500
22 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
23 09159-06077-000 NUT 2 Rp17.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
