GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANKSHAFTFIG.7 CAM SHAFTFIG.8 CAM CHAINFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCEL CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

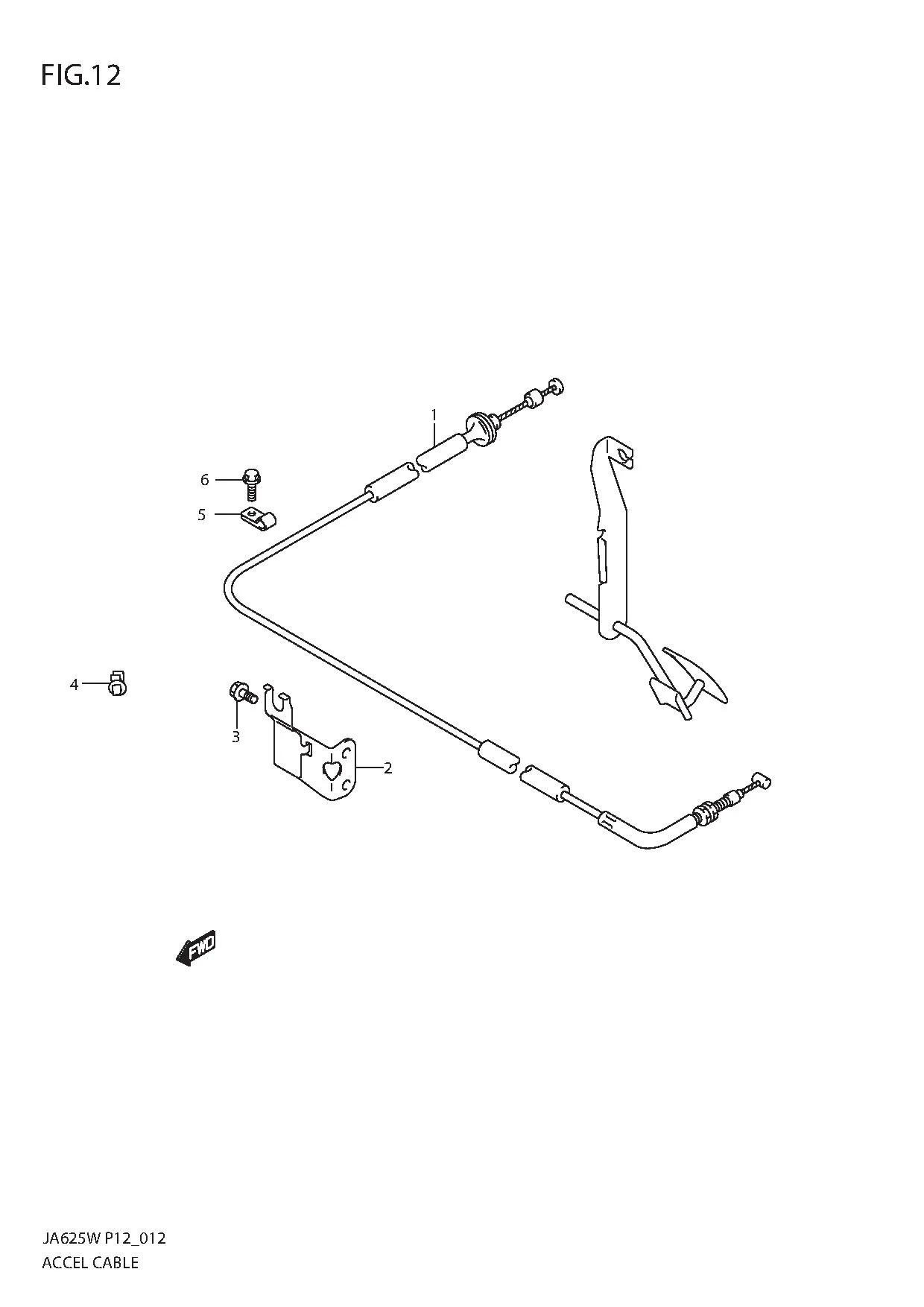

FIG.12 ACCEL CABLE

FIG.12 ACCEL CABLE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 15910B67D00N000		 CABLE ASSY, ACCEL 1 -
2 DISCONTINUE
SUB: 15919-67D00-000		 GUIDE, CABLE 1 -
3 09103-06265-000
SUB: 09103-06152-000		 BOLT (6X12) 2 Rp21.500
4 18214-75F00-000
SUB: 09403-05313-000		 CLAMP 1 Rp27.500
5 DISCONTINUE
SUB: 09403-08404-000		 CLAMP 1 -
6 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
