GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANKSHAFTFIG.7 CAM SHAFTFIG.8 CAM CHAINFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCEL CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

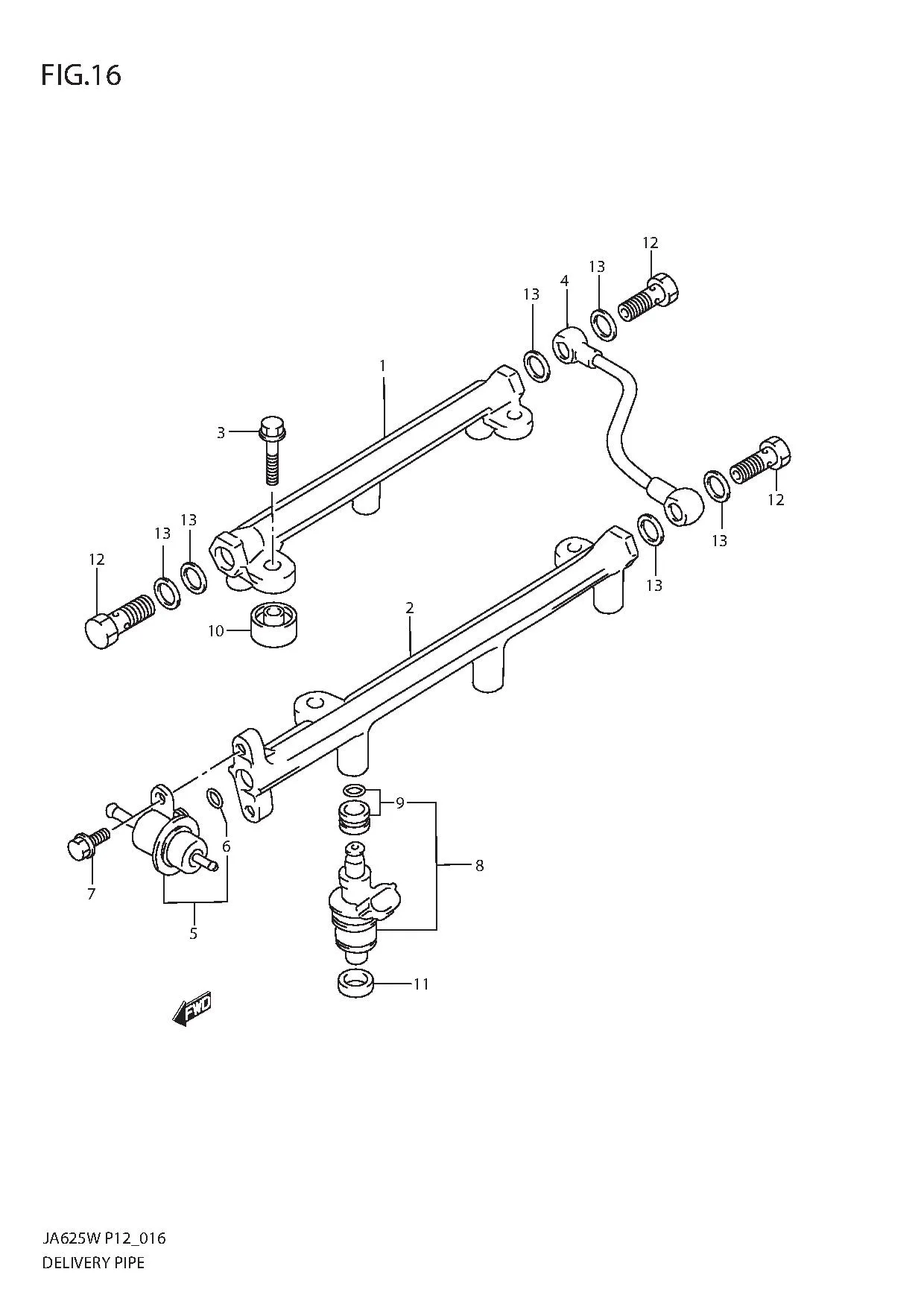

FIG.16 DELIVERY PIPE

FIG.16 DELIVERY PIPE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 15731-77E01-000		 PIPE, DELIVERY RH 1 -
2 DISCONTINUE
SUB: 15732-77E01-000		 PIPE, DELIVERY LH 1 -
3 01550-0840B-000
SUB: 01550-08403-000		 BOLT 4 Rp5.500
4 DISCONTINUE
SUB: 15740-77E00-000		 PIPE, FUEL CONNECTOR 1 -
5 15610-67D00-000 REGULATOR, FUEL PRESSURE 1 Rp1.821.000
6 DISCONTINUE
SUB: 15710-51E10-000		 •O RING 1 -
7 09103-06265-000
SUB: 09103-06168-000		 BOLT (6X10) 2 Rp21.500
8 15710-67D00-000 INJECTOR ASSY, FUEL 6 Rp4.689.500
9 15716-73GT0-000 •GROMMET SET 6 Rp129.000
10 15735-58B00-000 INSULATOR, DELIVERY PIPE 4 Rp45.500
11 09320-09022-000
SUB: 09320-08062-000		 CUSHION 6 Rp8.500
12 DISCONTINUE
SUB: 09360-14012-000		 BOLT (14X27) 3 -
13 15762-61B01-000
SUB: 15762-61B00-000		 GASKET 6 Rp26.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
