Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL CYLINDER HEAD COVER CYLINDER HEAD CYLINDER OIL PAN CRANKSHAFT CAM SHAFT/VALVE CAM CHAIN ENGINE MOUNTING INTAKE MANIFOLD THROTTLE BODY AIR CLEANER EXHAUST MANIFOLD MUFFLER DELIVERY PIPE OXYGEN SENSOR AIR FLOW SENSOR PCV HOSE FUEL PUMP OIL PUMP WATER PUMP RADIATOR WATER HOSE THERMOSTAT EMISSION CONTROL EGR VALVE LABEL

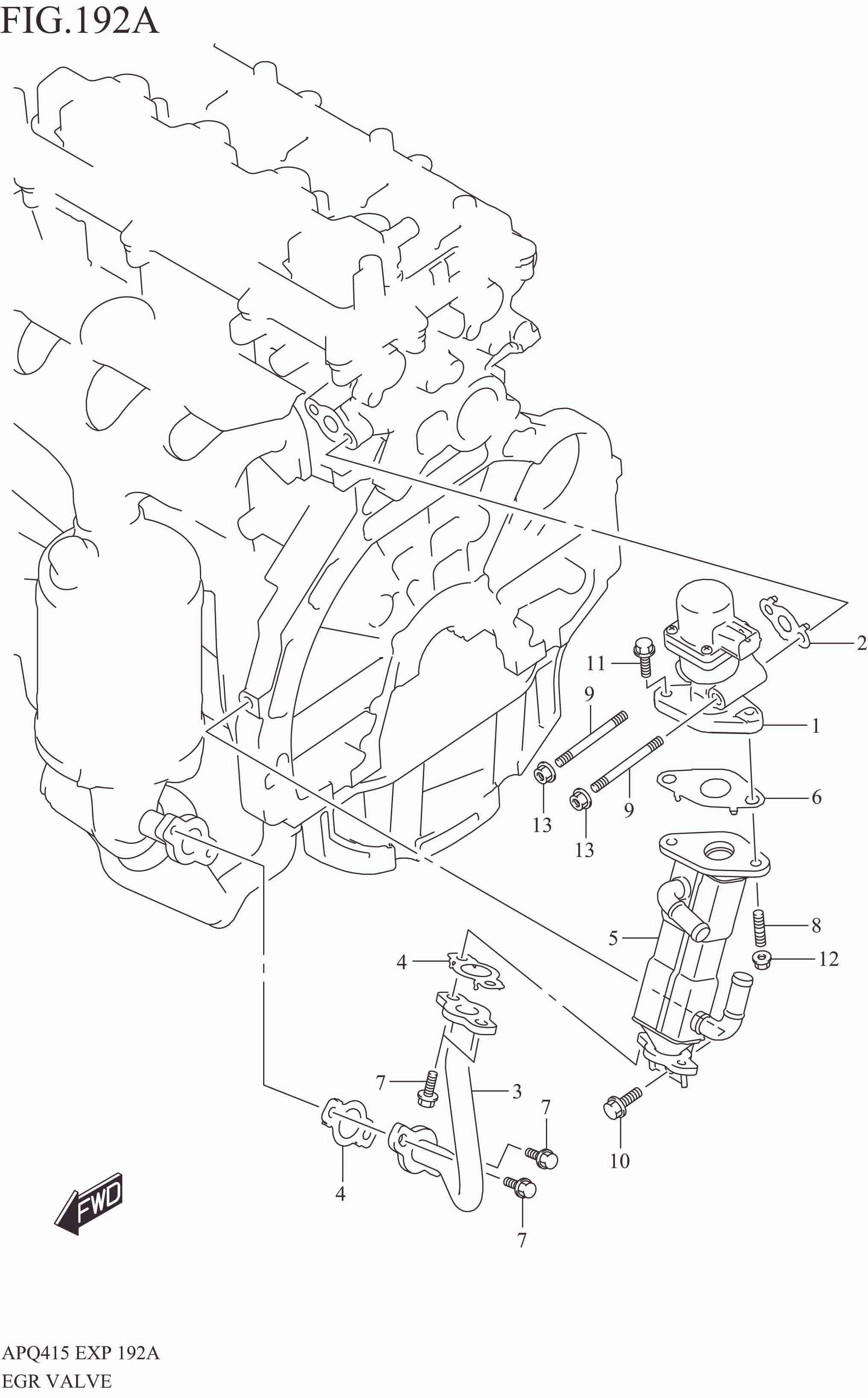

EGR VALVE

EGR VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 18111M68P00-000 VALVE, EGR 1 Rp1.917.000
2 18529M68P00-000 GASKET, EGR VALVE 1 Rp6.500
3 18530M50U00-000 PIPE, EGR 1 Rp480.000
4 18533-68P00-000 GASKET, EGR PIPE 2 Rp30.000
5 18710M50U00-000 COOLER, EGR 1 Rp2.160.500
6 18715M68P00-000 GASKET, EGR COOLER 1 Rp9.000
7 09103-06267-000 BOLT (6X18) 4 Rp16.000
8 DISCONTINUE
SUB: 01421-0816A-000		 STUD BOLT 1 -
9 01421-0860A-000 STUD BOLT 2 Rp29.500
10 01550-0820A-000 BOLT 1 Rp5.500
11 01550-0820A-000 BOLT 1 Rp5.500
12 08316-1008A-000 NUT 1 Rp3.500
13 08316-1008A-000 NUT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
