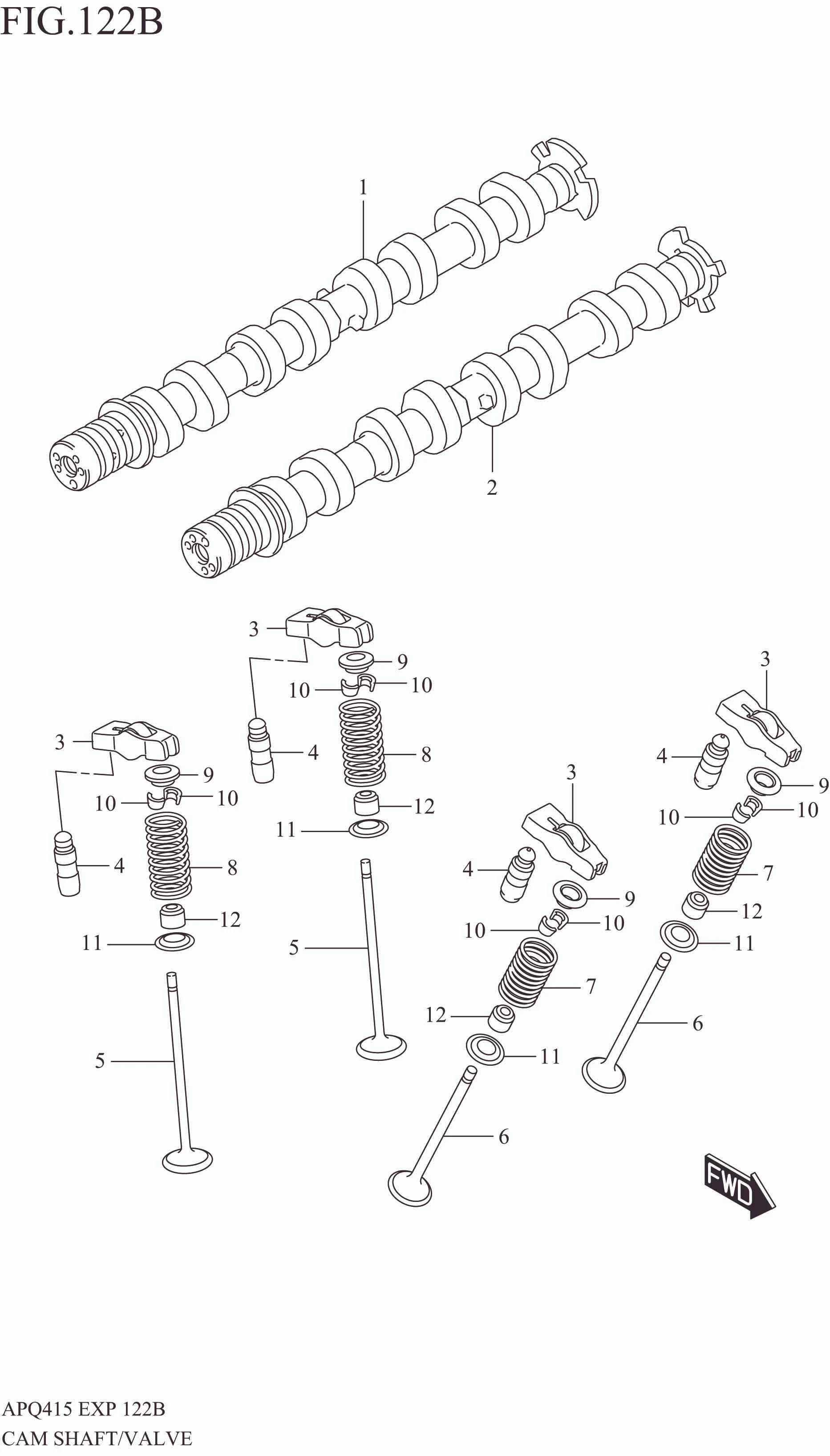

CAM SHAFT/VALVE

CAM SHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12710M68PD0-000 CAMSHAFT, INTK 1 Rp1.784.500
2 12720M52T00-000 CAMSHAFT, EXH 1 Rp1.853.500
3 12840M68PA0-000 ARM, VALVE ROCKER 16 Rp96.000
4 12860M83M00-000 ADJUSTER, HYDR VALVE LASH 16 Rp81.000
5 12911M68PB0-000 VALVE, INTK 8 Rp55.000
6 12915M68PB1-000 VALVE, EXH 8 Rp70.000
7 12921M68PA0-000 SPRING, VALVE EXH 8 Rp15.500
8 12921M68PB0-000 SPRING, VALVE INTK 8 Rp16.500
9 12931M74L00-000 RETAINER, VALVE SPRING 16 Rp8.500
10 12932M74L00-000 COTTER, VALVE 32 Rp5.500
11 12933M84MA0-000 SEAT, VALVE SPRING 16 Rp4.000
12 12934-69L00-000 SEAL, VALVE STEM 16 Rp46.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
