Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL CYLINDER HEAD COVER CYLINDER HEAD CYLINDER OIL PAN CRANKSHAFT CAM SHAFT/VALVE CAM CHAIN ENGINE MOUNTING INTAKE MANIFOLD THROTTLE BODY AIR CLEANER EXHAUST MANIFOLD MUFFLER DELIVERY PIPE OXYGEN SENSOR AIR FLOW SENSOR PCV HOSE FUEL PUMP OIL PUMP WATER PUMP RADIATOR WATER HOSE THERMOSTAT EMISSION CONTROL EGR VALVE LABEL

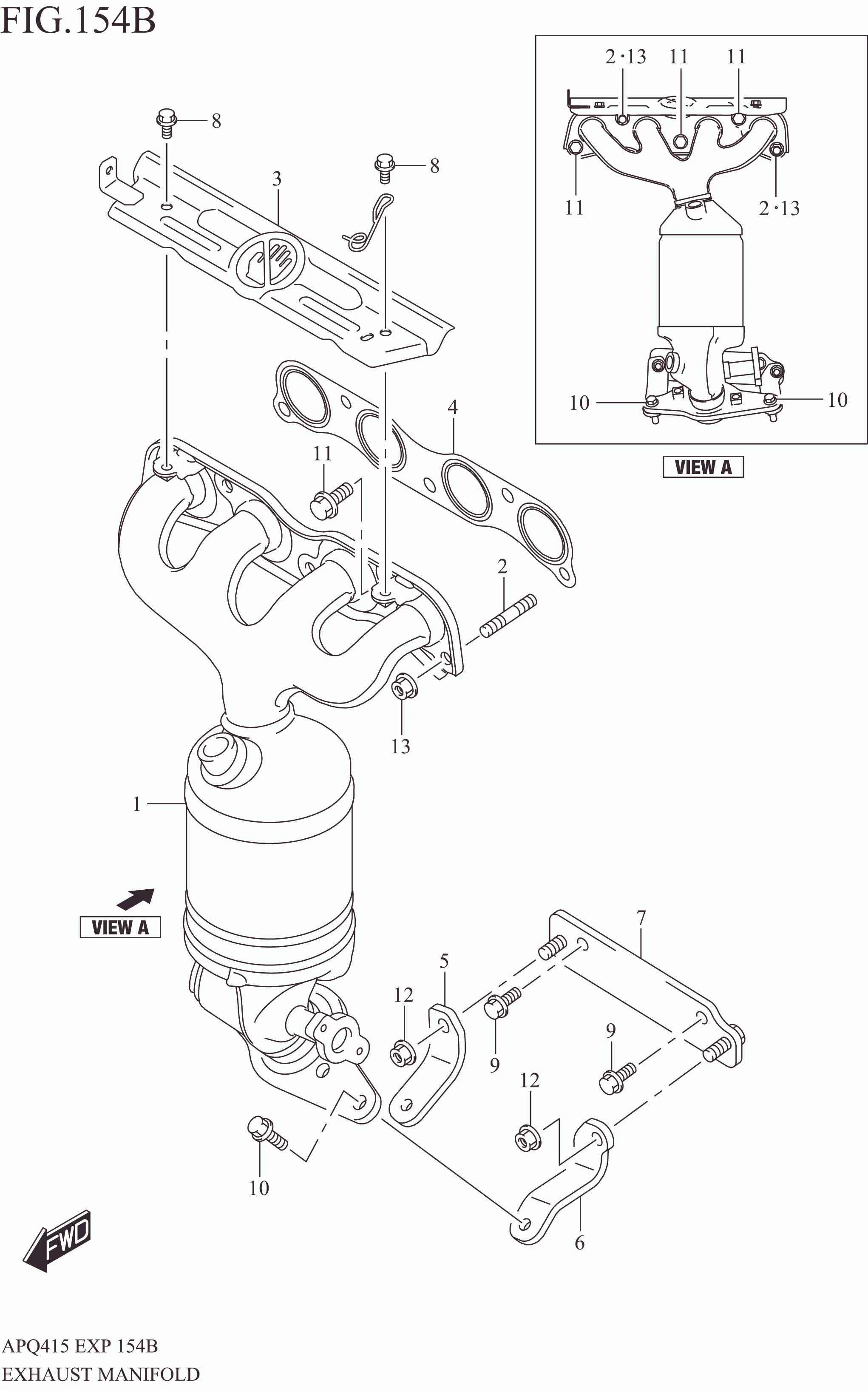

EXHAUST MANIFOLD

EXHAUST MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 14110M52T10-000 MANIFOLD, EXH 1 Rp32.430.500
2 14118-63J00-000 STUD BOLT, EXH MANF 2 Rp21.500
3 14120M52T00-000 COVER, EXH MANF 1 Rp31.500
4 14140M54T00-000 GASKET, EXH MANF 1 Rp68.500
5 14271M76SA0-000 STIFFENER, EXH MANF 1 Rp33.500
6 14272M76SA0-000 STIFFENER, EXH MANF NO.2 1 Rp40.000
7 14273M76S00-000 BRACKET, EXH MANF 1 Rp64.000
8 01550-0612C-000 BOLT 2 Rp19.500
9 01550-0820C-000 BOLT 2 Rp17.500
10 01550-0835C-000 BOLT 2 Rp19.000
11 01550-1020A-000 BOLT 3 Rp21.000
12 08316-1008C-000 NUT 2 Rp25.000
13 08316-1010A-000 NUT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
