Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL CYLINDER HEAD COVER CYLINDER HEAD CYLINDER OIL PAN CRANKSHAFT CAM SHAFT/VALVE CAM CHAIN ENGINE MOUNTING INTAKE MANIFOLD THROTTLE BODY AIR CLEANER EXHAUST MANIFOLD MUFFLER DELIVERY PIPE OXYGEN SENSOR AIR FLOW SENSOR PCV HOSE FUEL PUMP OIL PUMP WATER PUMP RADIATOR WATER HOSE THERMOSTAT EMISSION CONTROL EGR VALVE LABEL

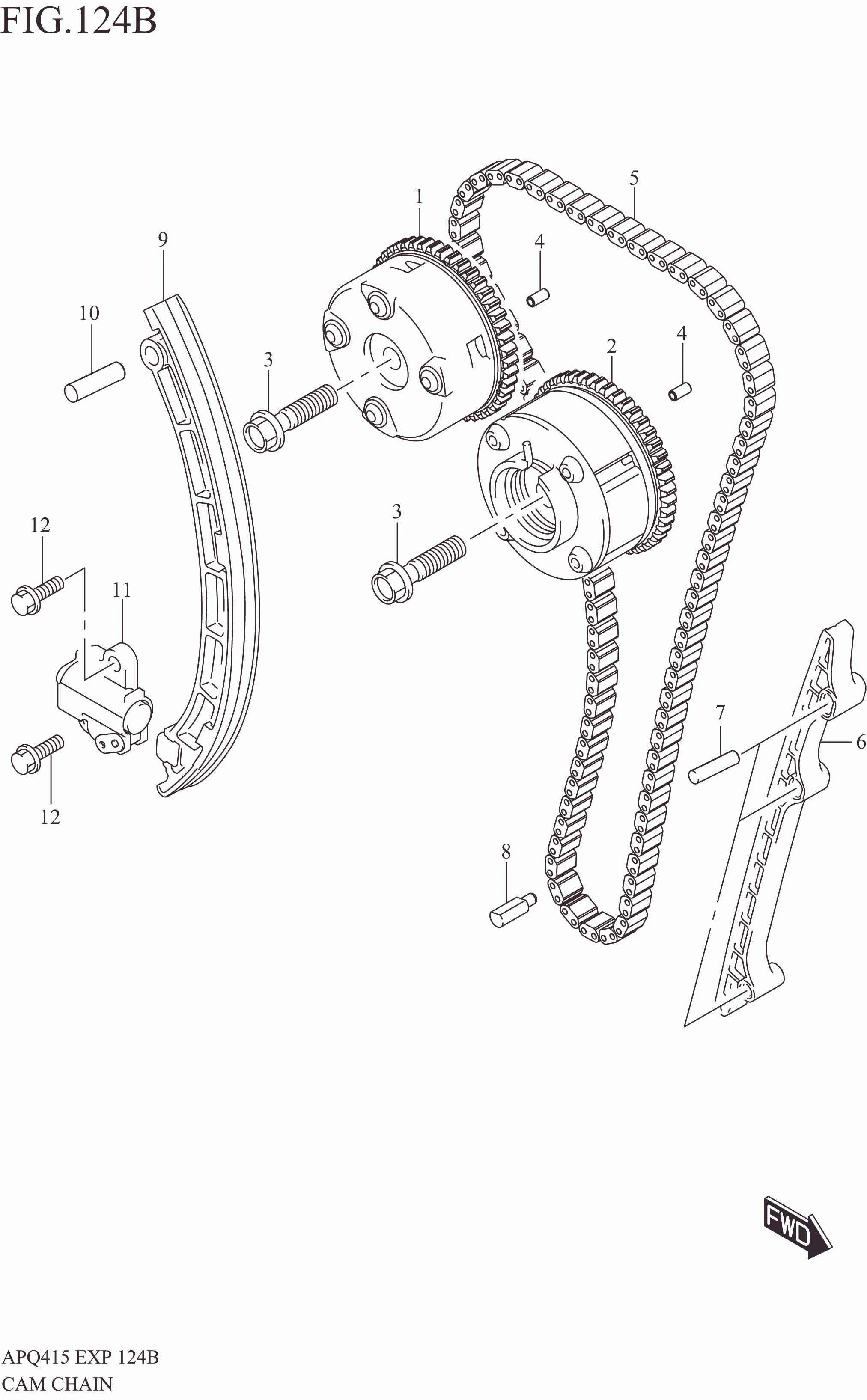

CAM CHAIN

CAM CHAIN
No No. Part Description Qty Price Per Pcs Remarks
1 12740M81R10-000 SPROCKET ASSY, CAMSHAFT TIMING 1 Rp1.280.000
2 12750M81R10-000 SPROCKET ASSY, CAMSHAFT EXH 1 Rp1.449.000
3 12753-69L00-000 BOLT, CAMSHAFT SPROCKET (10X41) 2 Rp33.500
4 09206-05001-000 PIN (3.4X5X10) 2 Rp11.500
5 12761M68PA0-000 CHAIN, TIMING 1 Rp359.000
6 12771M81R10-000 GUIDE, TIMING CHAIN 1 Rp98.000
7 12776-50M00-000 PIN, TIMING CHAIN GUIDE FIX 3 Rp32.500
8 12781-69G00-000 JET, TIMING CHAIN 1 Rp24.500
9 12811M81R10-000 TENSIONER, TIMING CHAIN 1 Rp186.500
10 12812M50M00-000 PIN, TIMING CHAIN TENSIONER FIX 1 Rp6.000
11 12831M66R00-000 ADJUSTER ASSY, TENSIONER 1 Rp417.500
12 01550-0620A-000 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
