Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL CYLINDER HEAD COVER CYLINDER HEAD CYLINDER OIL PAN CRANKSHAFT CAM SHAFT/VALVE CAM CHAIN ENGINE MOUNTING INTAKE MANIFOLD THROTTLE BODY AIR CLEANER EXHAUST MANIFOLD MUFFLER DELIVERY PIPE OXYGEN SENSOR AIR FLOW SENSOR PCV HOSE FUEL PUMP OIL PUMP WATER PUMP RADIATOR WATER HOSE THERMOSTAT EMISSION CONTROL EGR VALVE LABEL

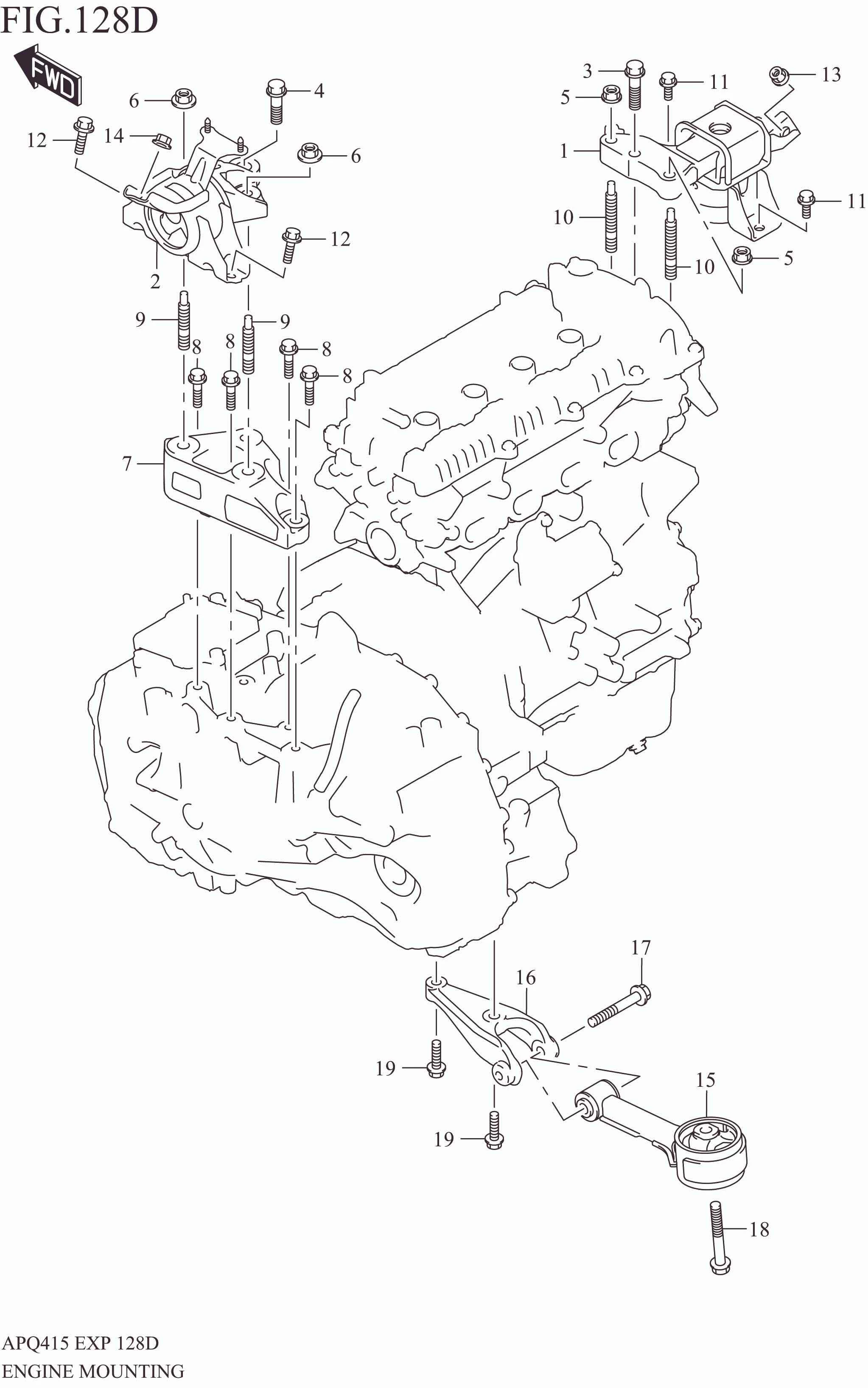

ENGINE MOUNTING

ENGINE MOUNTING
No No. Part Description Qty Price Per Pcs Remarks
1 11610M76T00-000 MOUNTING, ENG RH 1 Rp1.920.000
2 11620M76T00-000 MOUNTING, ENG LH 1 Rp1.293.000
3 11644-68M00-000 BOLT, ENG RH MTG BRKT 1 Rp54.000
4 11644M76T00-000 BOLT, ENG LH MTG BRKT 1 Rp33.000
5 11645-68M00-000 NUT, ENG RH MTG BRKT 2 Rp25.500
6 11645M76T00-000 NUT, ENG LH MTG BRKT 2 Rp15.000
7 11651M66TA0-000 BRACKET, ENG LH MTG 1 Rp491.000
8 09103-10462-000 BOLT (10X40) 4 Rp39.000
9 09108-12020-000 STUD BOLT 2 Rp14.000
10 09108M12021-000 BOLT 2 Rp36.500
11 01551-1025C-000 BOLT 2 Rp29.000
12 01551-1025C-000 BOLT 2 Rp29.000
13 08316-1010A-000 NUT 1 Rp3.500
14 08316-1010A-000 NUT 1 Rp3.500
15 11910M76T10-000 ROD, ENG RR TRQ 1 Rp847.500
16 11941M76T00-000 BRACKET, ENG RR TRQ ROD 1 Rp236.500
17 09103-12138-000 BOLT (12X90) 1 Rp34.500
18 09113-12009-000 BOLT (12X90) 1 Rp51.500
19 01550-1040A-000 BOLT 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
