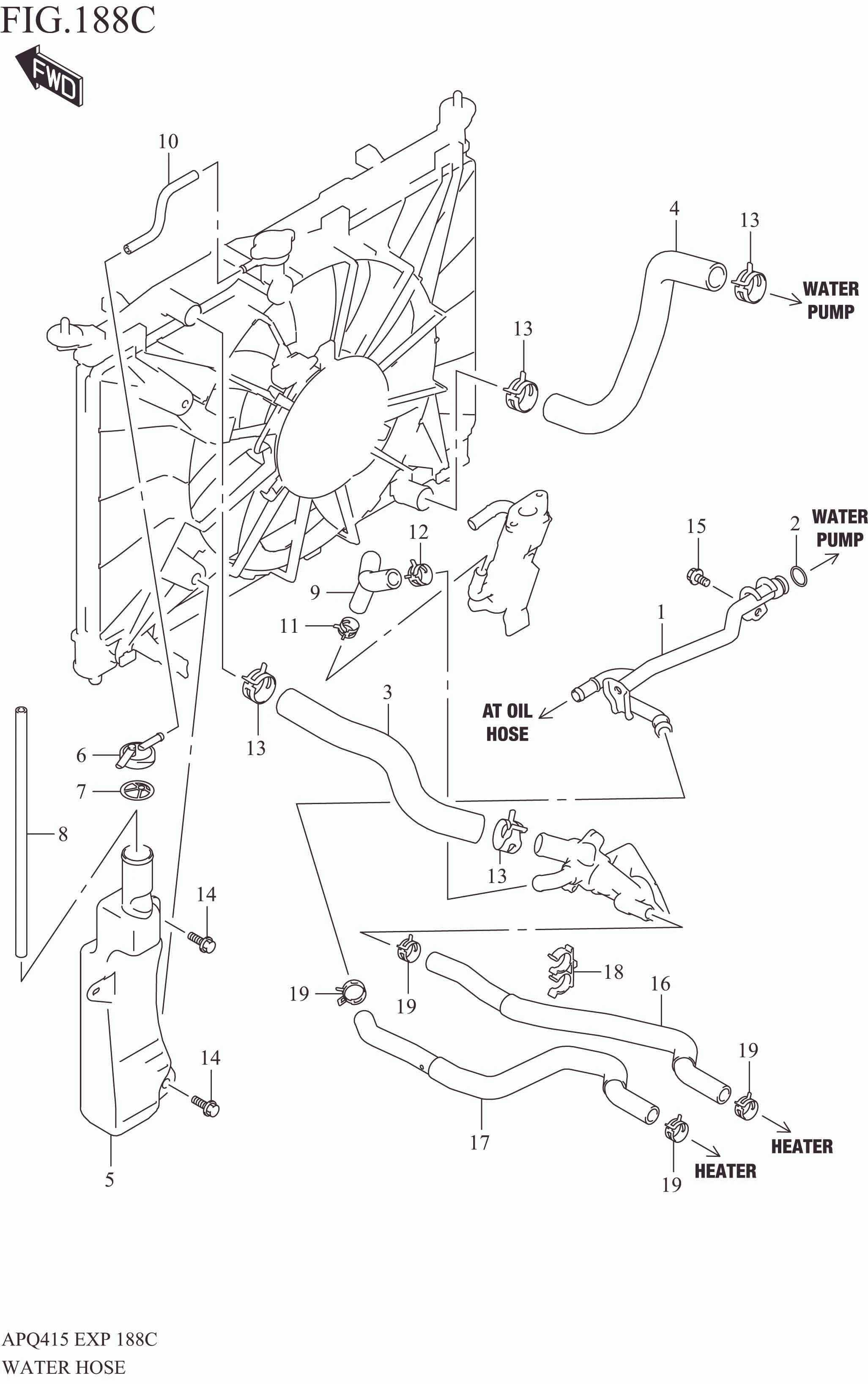

WATER HOSE

WATER HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 17830M50U00-000 PIPE, WTR INLET 1 Rp257.500
2 17849M77P00-000 O RING, HTR OUTLET PIPE 1 Rp4.000
3 17852M76T00-000 HOSE, RADIATOR INLET 1 Rp55.000
4 17854M76T00-000 HOSE, RADIATOR OUTLET 1 Rp87.500
5 17931M76T00-000 TANK, WATER RESERVE 1 Rp78.500
6 17932-76G00-000 CAP, WTR RSVR TANK 1 Rp5.500
7 17933-60B00-000 SEAL, WATER RESERVER TANK CAP 1 Rp5.500
8 17934M68P00-000 HOSE, RSV TANK (7X11X410) 1 Rp25.000
9 18721M50U00-000 HOSE, EGR COOLER WTR INLET 1 Rp21.500
10 09352M70L02-160 HOSE 1 Rp10.000
11 09401-18418-000 CLIP (ID:17.8) 1 Rp26.000
12 09401M21410-000 CLIP 1 Rp11.000
13 09401M30406-000 CLIP 4 Rp15.000
14 01550-0616A-000 BOLT 2 Rp3.500
15 01550-0816A-000 BOLT 1 Rp6.000
16 17871M76T00-000 HOSE, HEATER INLET 1 Rp64.500
17 17872M76T00-000 HOSE, HEATER OUTLET 1 Rp68.500
18 17875M68P00-000 CLAMP, HEATER HOSE 1 Rp13.000
19 09401M21410-000 CLIP 4 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
