Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL CYLINDER HEAD COVER CYLINDER HEAD CYLINDER OIL PAN CRANKSHAFT CAM SHAFT/VALVE CAM CHAIN ENGINE MOUNTING INTAKE MANIFOLD THROTTLE BODY AIR CLEANER EXHAUST MANIFOLD MUFFLER DELIVERY PIPE OXYGEN SENSOR AIR FLOW SENSOR PCV HOSE FUEL PUMP OIL PUMP WATER PUMP RADIATOR WATER HOSE THERMOSTAT EMISSION CONTROL EGR VALVE LABEL

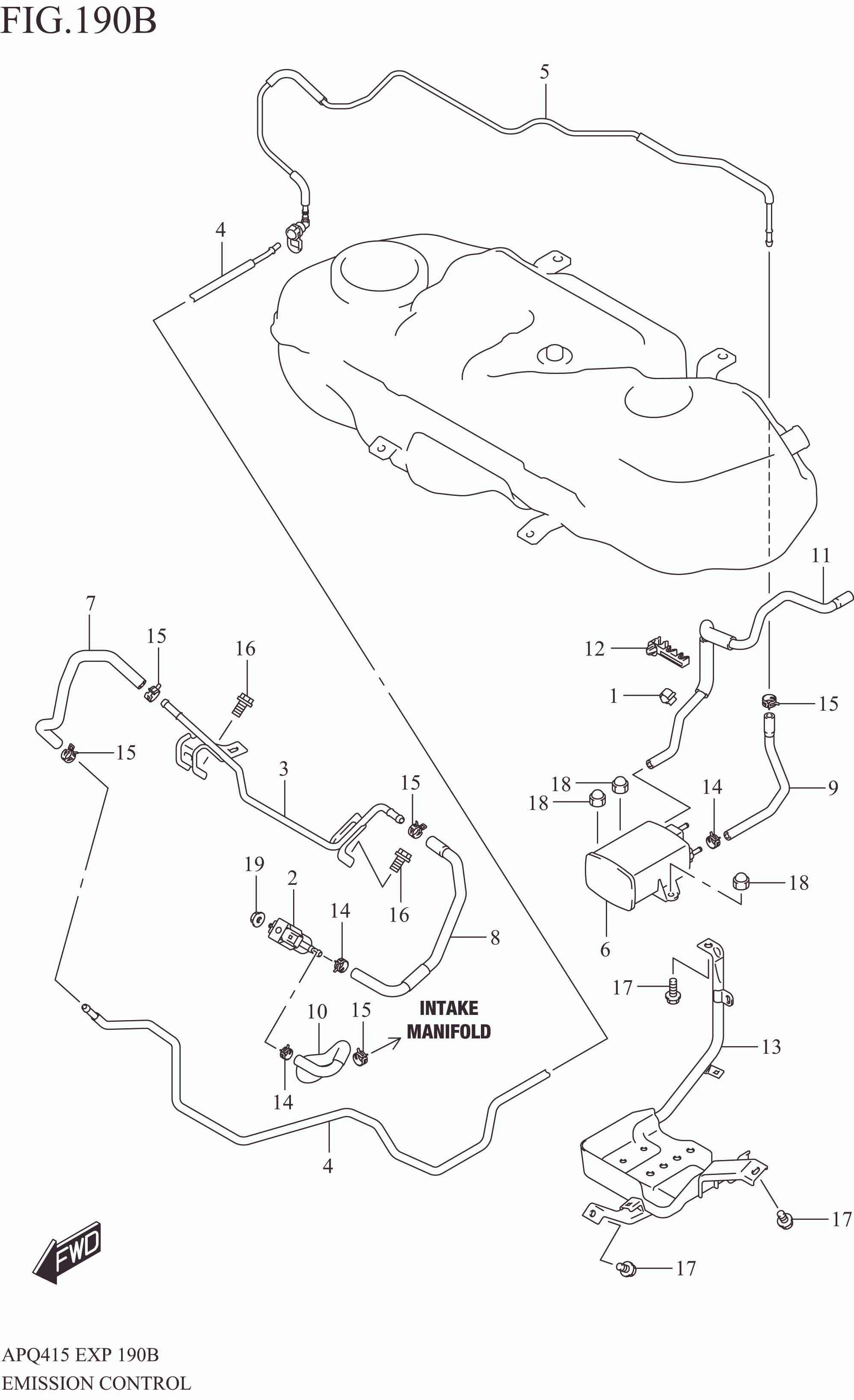

EMISSION CONTROL

EMISSION CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1 15894M67P00-000 CLAMP, FUEL HOSE 1 Rp6.000
2 18114M76M00-000 VALVE, CANISTER PURGE 1 Rp322.500
3 18340M76T00-000 PIPE, PURGE 1 Rp234.500
4 18351M76T00-000 PIPE, PURGE 1 Rp215.000
5 18352M76T00-000 PIPE, PURGE 1 Rp255.500
6 18560M72R00-000 CANISTER 1 Rp334.500
7 18561M76T00-000 HOSE, PURGE 1 Rp89.500
8 18562M76T00-000 HOSE, PURGE 1 Rp105.000
9 18563M76T00-000 HOSE, PURGE 1 Rp84.000
10 18564M76T00-000 HOSE, PURGE 1 Rp60.000
11 18567M76T00-000 HOSE, CANISTER SUCTION 1 Rp88.000
12 18569M76T00-000 CLAMP, SUCTION HOSE 1 Rp8.500
13 18570M76T00-000 BRACKET, CANISTER 1 Rp315.000
14 09401M11432-000 CLIP (ID:11.1) 3 Rp6.000
15 09401-12405-000 CLIP (ID:12.5) 5 Rp16.500
16 01550M0612A-000 BOLT 2 Rp5.000
17 01551-0816C-000 BOLT 3 Rp13.500
18 08313-2006A-000 NUT 3 Rp14.000
19 08316-1006A-000 NUT 1 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
