Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL CYLINDER HEAD COVER CYLINDER HEAD CYLINDER OIL PAN CRANKSHAFT CAM SHAFT/VALVE CAM CHAIN ENGINE MOUNTING INTAKE MANIFOLD THROTTLE BODY AIR CLEANER EXHAUST MANIFOLD MUFFLER DELIVERY PIPE OXYGEN SENSOR AIR FLOW SENSOR PCV HOSE FUEL PUMP OIL PUMP WATER PUMP RADIATOR WATER HOSE THERMOSTAT EMISSION CONTROL EGR VALVE LABEL

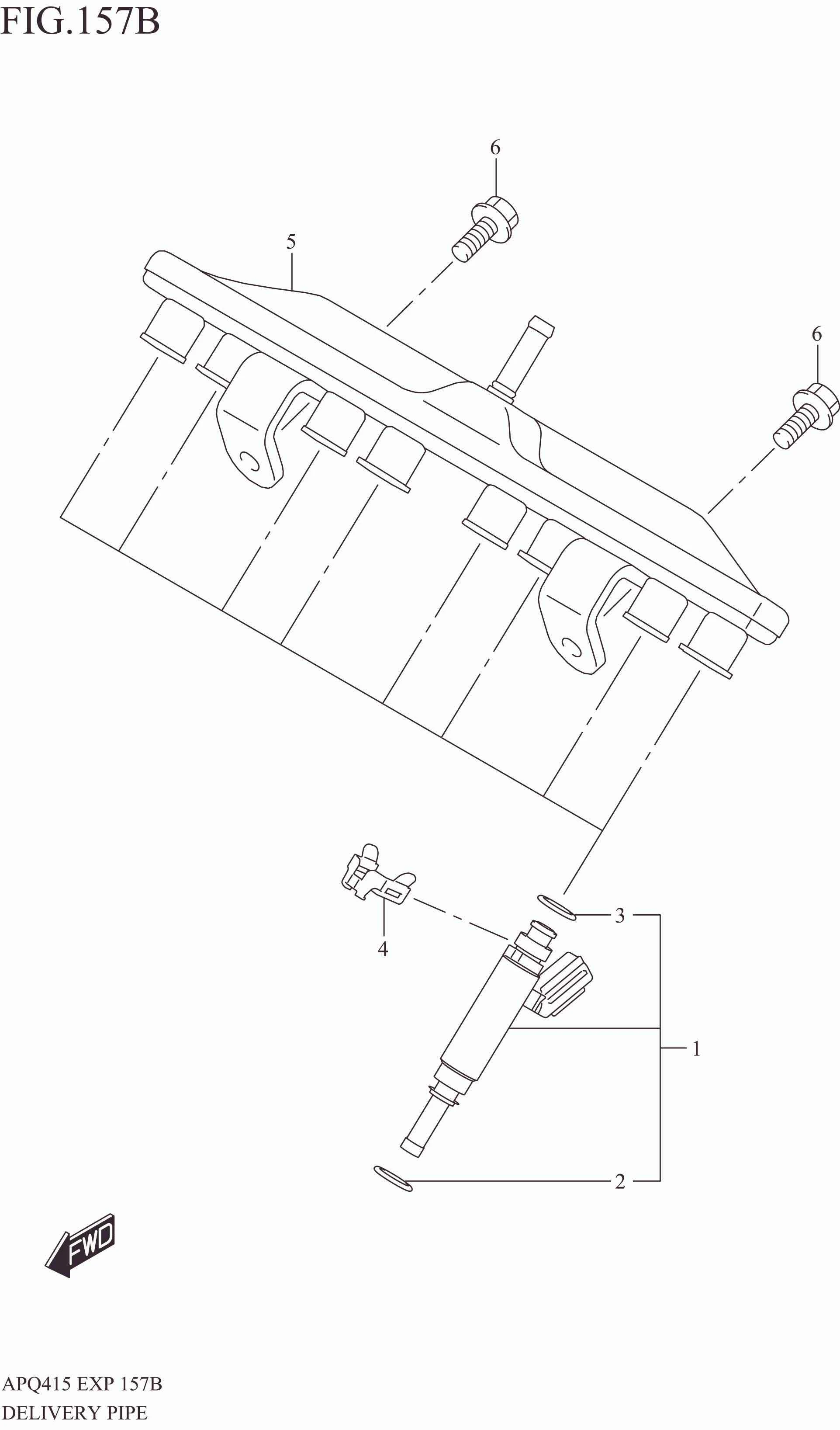

DELIVERY PIPE

DELIVERY PIPE
No No. Part Description Qty Price Per Pcs Remarks
1 15710M68PV1-000
SUB: 15710M68PV0-000		 INJECTOR ASSY, FUEL 8 Rp547.500
2 15716M68P01-000 .O RING 8 Rp31.500
3 15717M68P00-000 .O RING 8 Rp18.500
4 15715-61P00-000 CLIP, FUEL INJECTOR 8 Rp35.000
5 15730-50U00-000 PIPE, FUEL DELIVERY 1 Rp1.329.000
6 01550-0816A-000 BOLT 2 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
