Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL CYLINDER HEAD COVER CYLINDER HEAD CYLINDER OIL PAN CRANKSHAFT CAM SHAFT/VALVE CAM CHAIN ENGINE MOUNTING INTAKE MANIFOLD THROTTLE BODY AIR CLEANER EXHAUST MANIFOLD MUFFLER DELIVERY PIPE OXYGEN SENSOR AIR FLOW SENSOR PCV HOSE FUEL PUMP OIL PUMP WATER PUMP RADIATOR WATER HOSE THERMOSTAT EMISSION CONTROL EGR VALVE LABEL

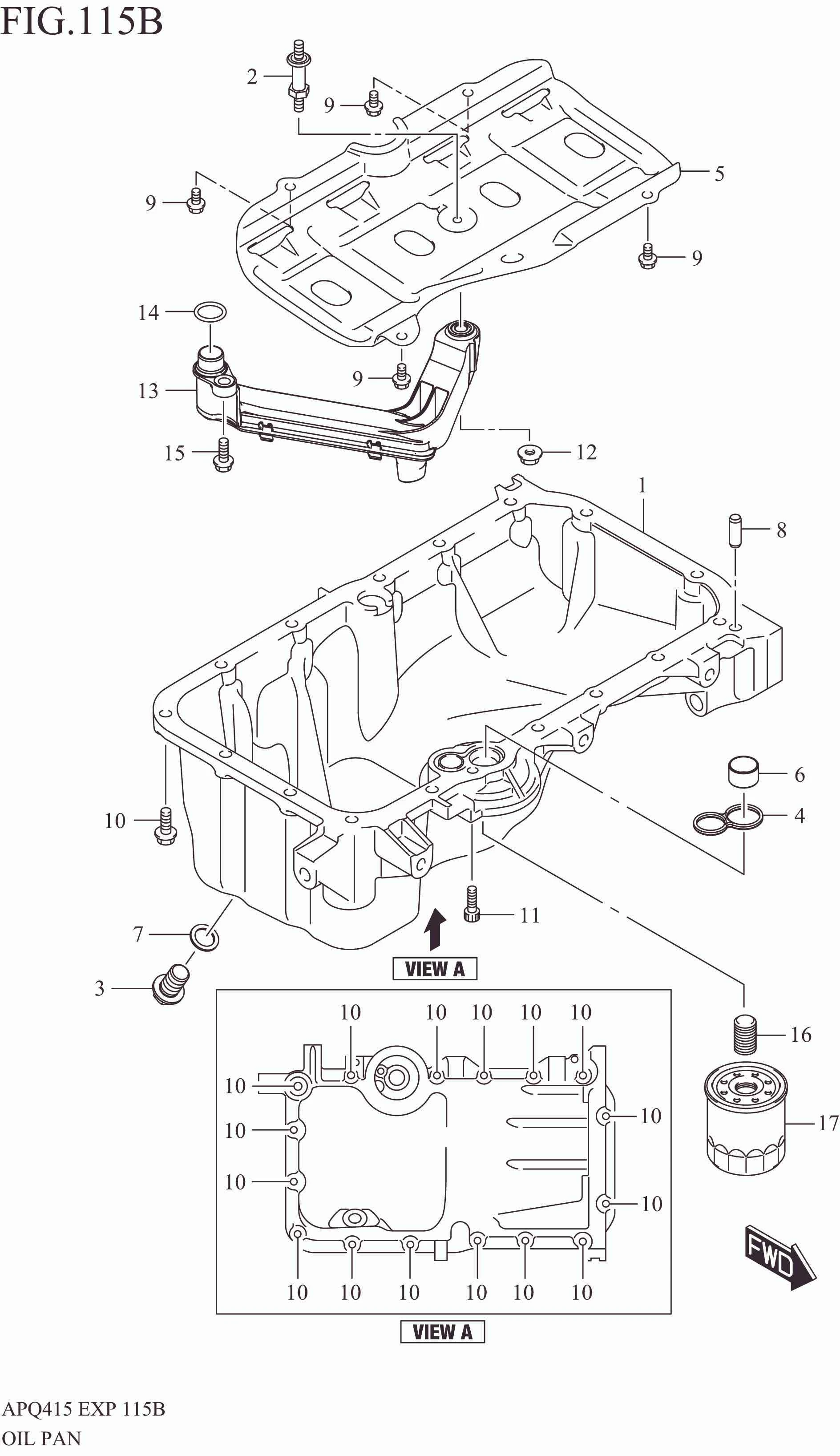

OIL PAN

OIL PAN
No No. Part Description Qty Price Per Pcs Remarks
1 11511M52T00-000 PAN, OIL 1 Rp1.101.000
2 11515-51K03-000 STUD BOLT, OIL PAN BAFFLE 1 Rp54.000
3 11518-63J20-000 PLUG, OIL DRAIN 1 Rp29.500
4 11518M68K00-000 O RING 1 Rp6.500
5 11541M68PA0-000 PLATE, OIL PAN BAFFLE 1 Rp57.000
6 16114M69J00-000 PIN, OIL PAN DOWEL 1 Rp14.500
7 09168-14015-000 GASKET (14X20X1.5) 1 Rp7.500
8 11519M67L00-000 PIN 1 Rp6.000
9 01550M0612A-000 BOLT 4 Rp5.000
10 DISCONTINUE
SUB: 01550-0625A-000		 BOLT 16 -
11 07130-0625A-000 BOLT 1 Rp3.500
12 08316-1006A-000 NUT 1 Rp2.000
13 16520-69L00-000 STRAINER, OIL PUMP 1 Rp316.000
14 16119M68K00-000 O RING (D:2.5,ID:16.6) 1 Rp7.000
15 07120-0620A-000 BOLT 1 Rp22.000
16 11241-68K00-000 STAND, OIL FILTER 1 Rp15.000
17 16510-61J00-000 FILTER ASSY, OIL 1 Rp37.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
