Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL CYLINDER HEAD COVER CYLINDER HEAD CYLINDER OIL PAN CRANKSHAFT CAM SHAFT/VALVE CAM CHAIN ENGINE MOUNTING INTAKE MANIFOLD THROTTLE BODY AIR CLEANER EXHAUST MANIFOLD MUFFLER DELIVERY PIPE OXYGEN SENSOR AIR FLOW SENSOR PCV HOSE FUEL PUMP OIL PUMP WATER PUMP RADIATOR WATER HOSE THERMOSTAT EMISSION CONTROL EGR VALVE LABEL

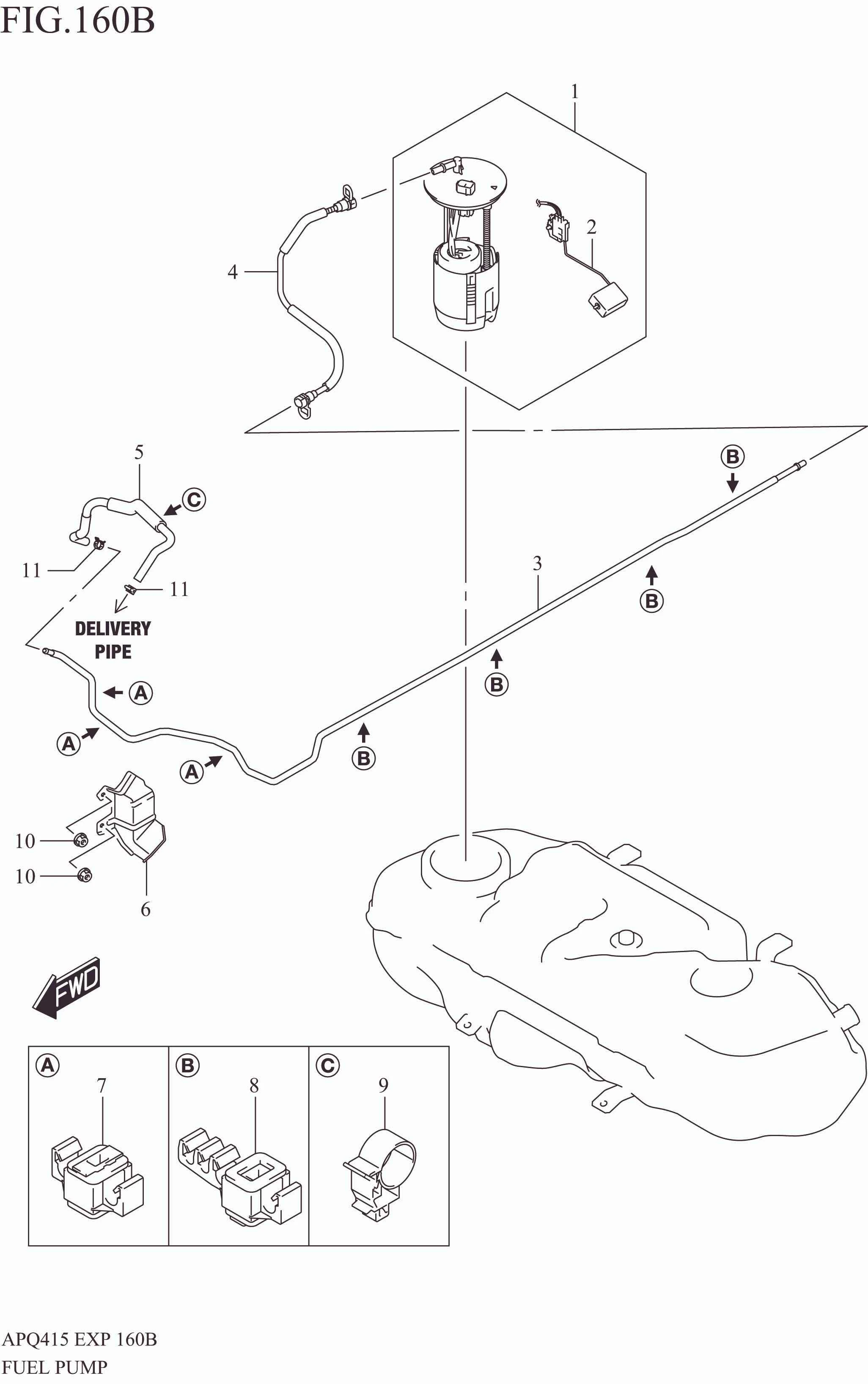

FUEL PUMP

FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100M76T00-000 PUMP ASSY, FUEL 1 Rp2.287.000
2 34810M76T00-000 .GAUGE ASSY, FUEL LEVEL 1 Rp504.500
3 15811M76T00-000 PIPE, FUEL FEED 1 Rp222.500
4 15812M76T00-000 PIPE, FUEL 1 Rp309.000
5 15815M76T00-000 HOSE, FUEL 1 Rp149.000
6 15873M76T00-000 PROTECTOR, FUEL PIPE 1 Rp69.500
7 15891M76T00-000 CLAMP, FUEL PIPE NO.1 3 Rp19.000
8 15892M76T00-000 CLAMP, BK PIPE FLOOR 4 Rp21.000
9 15895M68P00-000 CLAMP, FUEL HOSE 1 Rp12.500
10 09159M06112-000 NUT 2 Rp6.500
11 09401M11008-000 CLIP 2 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
