Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL CYLINDER HEAD COVER CYLINDER HEAD CYLINDER OIL PAN CRANKSHAFT CAM SHAFT/VALVE CAM CHAIN ENGINE MOUNTING INTAKE MANIFOLD THROTTLE BODY AIR CLEANER EXHAUST MANIFOLD MUFFLER DELIVERY PIPE OXYGEN SENSOR AIR FLOW SENSOR PCV HOSE FUEL PUMP OIL PUMP WATER PUMP RADIATOR WATER HOSE THERMOSTAT EMISSION CONTROL EGR VALVE LABEL

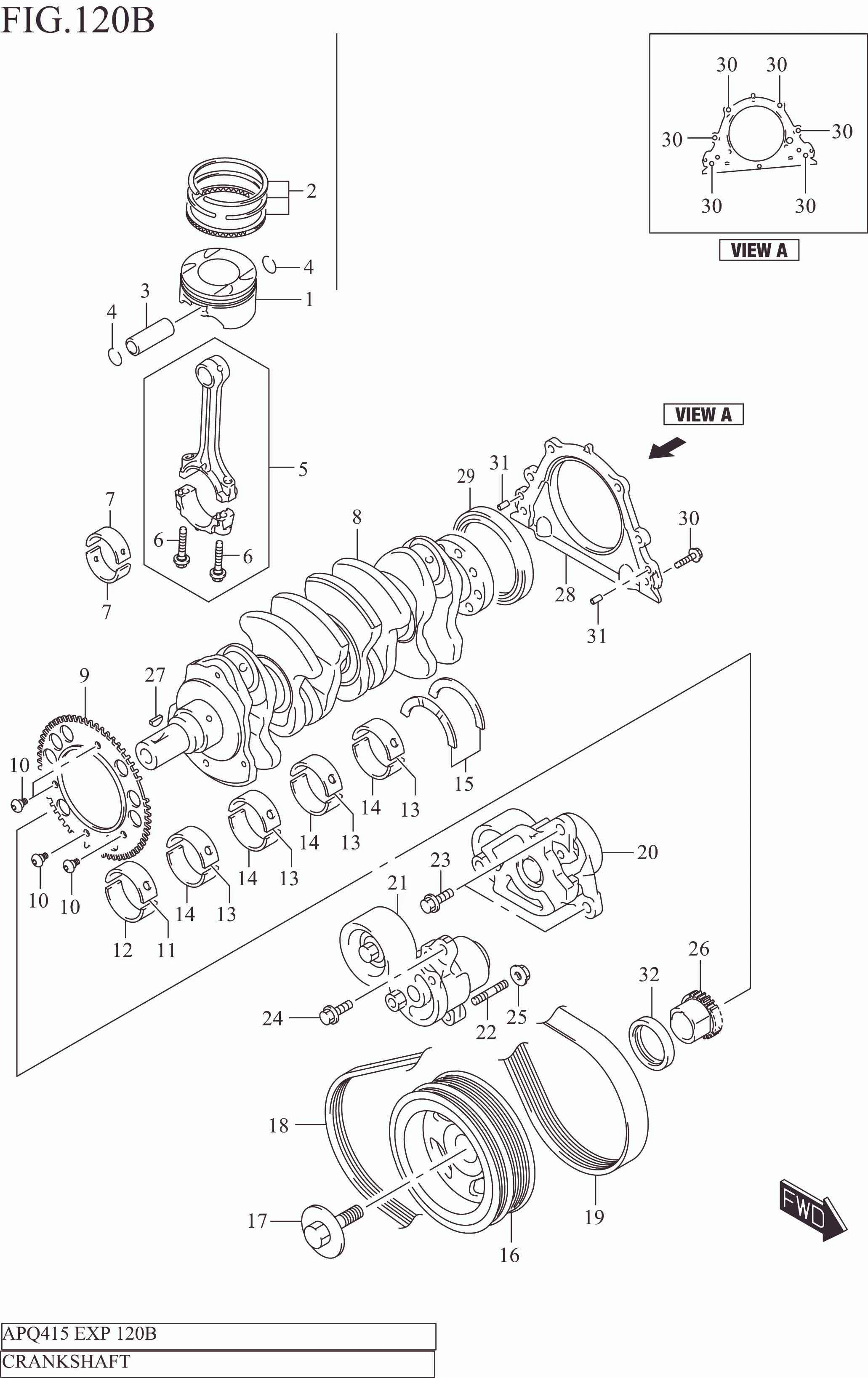

CRANKSHAFT

CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 12111M52T00-000 PISTON 4 Rp223.500
2 12140M52T10-000 RING SET, PISTON 4 Rp138.000
3 12151M68K60-000 PIN, PISTON 4 Rp34.500
4 09381-18002-000 CIRCLIP (OD:20.5) 8 Rp2.500
5 12160M52T00-000 CONNROD ASSY 4 Rp331.000
6 12163-58M00-000 .BOLT, CONNROD 8 Rp17.000
7-5 12181M68K00-0E0 BEARING, CONNROD BLUE (STD,T:1.5) 8 Rp22.000
7-6 12181M68K10-025
SUB: 12181M68K00-025		 BEARING, CONNROD RED (US:0.25,T:1.625) 8 Rp14.500
7-4 12181M68K00-0D0 BEARING, CONNROD YELLOW (STD,T:1.5) 8 Rp20.500
7-3 12181M68K00-0C0 BEARING, CONNROD NON (STD,T:1.5) 8 Rp20.500
7-2 12181M68K00-0B0 BEARING, CONNROD BLACK (STD,T:1.5) 8 Rp20.500
7-1 12181M68K00-0A0 BEARING, CONNROD GREEN (STD,T:1.5) 8 Rp20.500
8 12221M52T00-000 CRANKSHAFT 1 Rp4.991.000
9 12222M52T00-000 PLATE, SENSOR 1 Rp69.000
10 12223-69G00-000 SCREW, SNSR PLATE (6X10) 3 Rp14.500
11-6 12341-68PA0-0AA BEARING, CRANK UPR RED/PINK (US:0.25,T:2.125) 1 Rp119.000
11-10 12341-68PA0-0EA BEARING, CRANK UPR RED/BLACK (US:0.25,T:2.125) 1 Rp119.000
11-9 12341-68PA0-0DA BEARING, CRANK UPR RED/GREEN (US:0.25,T:2.125) 1 Rp119.000
11-8 12341-68PA0-0CA BEARING, CRANK UPR RED/BROWN (US:0.25,T:2.125) 1 Rp119.000
11-7 12341-68PA0-0BA BEARING, CRANK UPR RED/PURPLE (US:0.25,T:2.125) 1 Rp119.000
11-5 12341-68PA0-0E0 BEARING, CRANK UPR BLACK (STD,T:2) 1 Rp119.000
11-4 12341-68PA0-0D0 BEARING, CRANK UPR GREEN (STD,T:2) 1 Rp119.000
11-3 12341-68PA0-0C0 BEARING, CRANK UPR BROWN (STD,T:2) 1 Rp119.000
11-2 12341-68PA0-0B0 BEARING, CRANK UPR PURPLE (STD,T:2) 1 Rp119.000
11-1 12341-68PA0-0A0 BEARING, CRANK UPR PINK (STD,T:2) 1 Rp119.000
12-6 12345-68PA0-0AA BEARING, CRANK LWR RED/PINK (US:0.25,T:2.125) 1 Rp119.000
12-10 12345-68PA0-0EA BEARING, CRANK LWR RED/BLACK (US:0.25,T:2.125) 1 Rp119.000
12-9 12345-68PA0-0DA BEARING, CRANK LWR RED/GREEN (US:0.25,T:2.125) 1 Rp119.000
12-8 12345-68PA0-0CA BEARING, CRANK LWR RED/BROWN (US:0.25,T:2.125) 1 Rp119.000
12-7 12345-68PA0-0BA BEARING, CRANK LWR RED/PURPLE (US:0.25,T:2.125) 1 Rp119.000
12-5 12345-68PA0-0E0 BEARING, CRANK LWR BLACK (STD,T:2) 1 Rp119.000
12-4 12345-68PA0-0D0 BEARING, CRANK LWR GREEN (STD,T:2) 1 Rp119.000
12-3 12345-68PA0-0C0 BEARING, CRANK LWR BROWN (STD,T:2) 1 Rp119.000
12-2 12345-68PA0-0B0 BEARING, CRANK LWR PURPLE (STD,T:2) 1 Rp119.000
12-1 12345-68PA0-0A0 BEARING, CRANK LWR PINK (STD,T:2) 1 Rp119.000
13-3 12341M74L00-0C0 BEARING, CRANK UPR BROWN (STD,T:2) 4 Rp30.500
13-10 12341-74L00-0EA BEARING, CRANK UPR RED/BLACK (US:0.25,T:2.125) 4 Rp61.500
13-9 12341-74L00-0DA BEARING, CRANK UPR RED/GREEN (US:0.25,T:2.125) 4 Rp61.500
13-8 12341-74L00-0CA BEARING, CRANK UPR RED/BROWN (US:0.25,T:2.125) 4 Rp61.500
13-7 12341-74L00-0BA BEARING, CRANK UPR RED/PURPLE (US:0.25,T:2.125) 4 Rp61.500
13-5 12341M74L00-0E0 BEARING, CRANK UPR BLACK (STD,T:2) 4 Rp30.500
13-6 12341-74L00-0AA BEARING, CRANK UPR RED/PINK (US:0.25,T:2.125) 4 Rp59.500
13-1 12341M74L00-0A0 BEARING, CRANK UPR PINK (STD,T:2) 4 Rp30.500
13-2 12341M74L00-0B0 BEARING, CRANK UPR PURPLE (STD,T:2) 4 Rp30.500
13-4 12341M74L00-0D0 BEARING, CRANK UPR GREEN (STD,T:2) 4 Rp30.500
14-1 12345M74L00-0A0 BEARING, CRANK LWR PINK (STD,T:2) 4 Rp29.000
14-2 12345M74L00-0B0 BEARING, CRANK LWR PURPLE (STD,T:2) 4 Rp29.000
14-3 12345M74L00-0C0 BEARING, CRANK LWR BROWN (STD,T:2) 4 Rp29.000
14-4 12345M74L00-0D0 BEARING, CRANK LWR GREEN (STD,T:2) 4 Rp29.000
14-5 12345M74L00-0E0 BEARING, CRANK LWR BLACK (STD,T:2) 4 Rp30.000
14-6 12345-74L00-0AA BEARING, CRANK LWR RED/PINK (US:0.25,T:2.125) 4 Rp59.000
14-7 12345-74L00-0BA BEARING, CRANK LWR RED/PURPLE (US:0.25,T:2.125) 4 Rp61.000
14-8 12345-74L00-0CA BEARING, CRANK LWR RED/BROWN (US:0.25,T:2.125) 4 Rp61.000
14-9 12345-74L00-0DA BEARING, CRANK LWR RED/GREEN (US:0.25,T:2.125) 4 Rp61.000
14-10 12345-74L00-0EA BEARING, CRANK LWR RED/BLACK (US:0.25,T:2.125) 4 Rp61.000
15-1 12300-53830-000 BEARING SET, CRANK THRUST (STD,T:2.5) 1 Rp248.500
15-2 12300-53830-012 BEARING SET, CRANK THRUST (US) 1 Rp460.000
16 12610M52T00-000 PULLEY, CRANKSHAFT 1 Rp726.000
17 12619-69G10-000 BOLT, CRANK PULLEY (12X37) 1 Rp102.500
18 17521M66T00-000 BELT, WATER PUMP 1 Rp92.500
19 17522M52T00-000 BELT, GENERATOR 1 Rp163.000
20 17540M52T00-000 TENSIONER ASSY, GEN BELT UPPER 1 Rp1.211.500
21 17540M52T10-000 TENSIONER ASSY, GEN BELT LOWER 1 Rp1.167.000
22 01421-0825A-000 STUD BOLT 1 Rp15.000
23 01550-0825A-000 BOLT 2 Rp3.500
24 01550-0825A-000 BOLT 1 Rp3.500
25 08316-1008A-000 NUT 1 Rp3.500
26 12631M84MA0-000 SPROCKET, CRANKSHAFT TIMING 1 Rp185.000
27 08341M31059-000 KEY 1 Rp4.500
28 11341M84MA0-000 HOUSING, OIL SEAL 1 Rp105.000
29 11342M68PB0-000 OIL SEAL, CRANKSHAFT REAR 1 Rp149.000
30 DISCONTINUE
SUB: 09103-06286-000		 BOLT (6X20) 6 -
31 04221-06129-000 PIN 2 Rp13.500
32 16141M68PA0-000 OIL SEAL, CRANKSHAFT FR 1 Rp64.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
