Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL CYLINDER HEAD COVER CYLINDER HEAD CYLINDER OIL PAN CRANKSHAFT CAM SHAFT/VALVE CAM CHAIN ENGINE MOUNTING INTAKE MANIFOLD THROTTLE BODY AIR CLEANER EXHAUST MANIFOLD MUFFLER DELIVERY PIPE OXYGEN SENSOR AIR FLOW SENSOR PCV HOSE FUEL PUMP OIL PUMP WATER PUMP RADIATOR WATER HOSE THERMOSTAT EMISSION CONTROL EGR VALVE LABEL

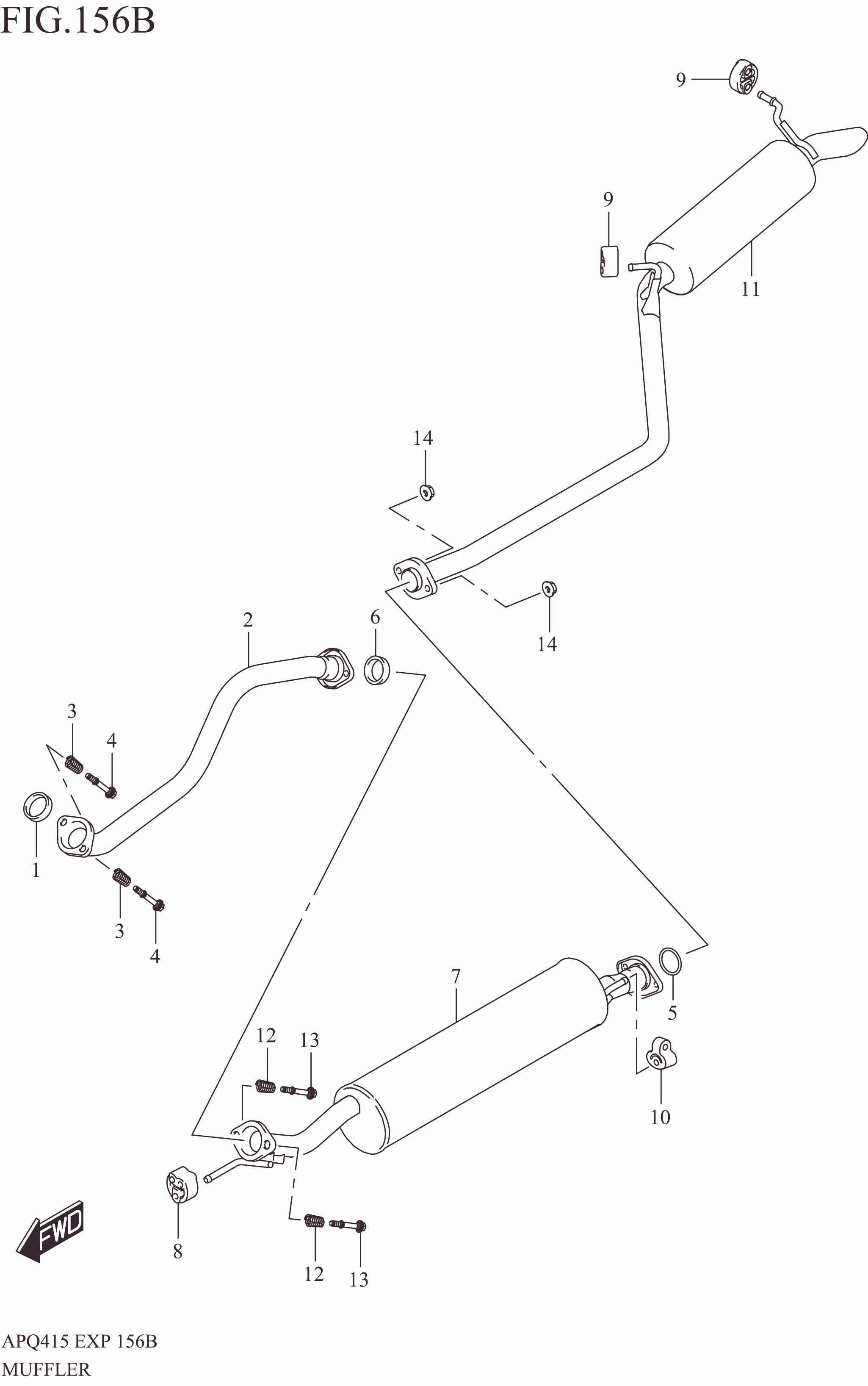

MUFFLER

MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14183M78L00-000 RING, SEAL EXH PIPE 1 Rp207.000
2 14190M76T00-000 PIPE, EXH 1 Rp659.000
3 14492M72F00-000 SPRING, EXH PIPE 2 Rp50.500
4 09119-10073-000 BOLT (10X65) 2 Rp75.000
5 14182M56R00-000 GASKET, EXH PIPE 1 Rp9.000
6 14183M78L00-000 RING, SEAL EXH PIPE 1 Rp207.000
7 14250M76T00-000 MUFFLER, CENTER 1 Rp2.619.500
8 14281M65M01-000 MOUNTING, MUFFLER 1 Rp44.000
9 14281M65M10-000 MOUNTING, MUF 2 Rp70.000
10 14281-76T00-000 MOUNTING, MUFFLER 1 Rp260.000
11 14300M76T00-000 MUFFLER, REAR 1 Rp3.150.000
12 14492M72F00-000 SPRING, EXH PIPE 2 Rp50.500
13 09119-10073-000 BOLT (10X65) 2 Rp75.000
14 09159M10049-000 NUT 2 Rp10.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
