Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL CYLINDER HEAD COVER CYLINDER HEAD CYLINDER OIL PAN CRANKSHAFT CAM SHAFT/VALVE CAM CHAIN ENGINE MOUNTING INTAKE MANIFOLD THROTTLE BODY AIR CLEANER EXHAUST MANIFOLD MUFFLER DELIVERY PIPE OXYGEN SENSOR AIR FLOW SENSOR PCV HOSE FUEL PUMP OIL PUMP WATER PUMP RADIATOR WATER HOSE THERMOSTAT EMISSION CONTROL EGR VALVE LABEL

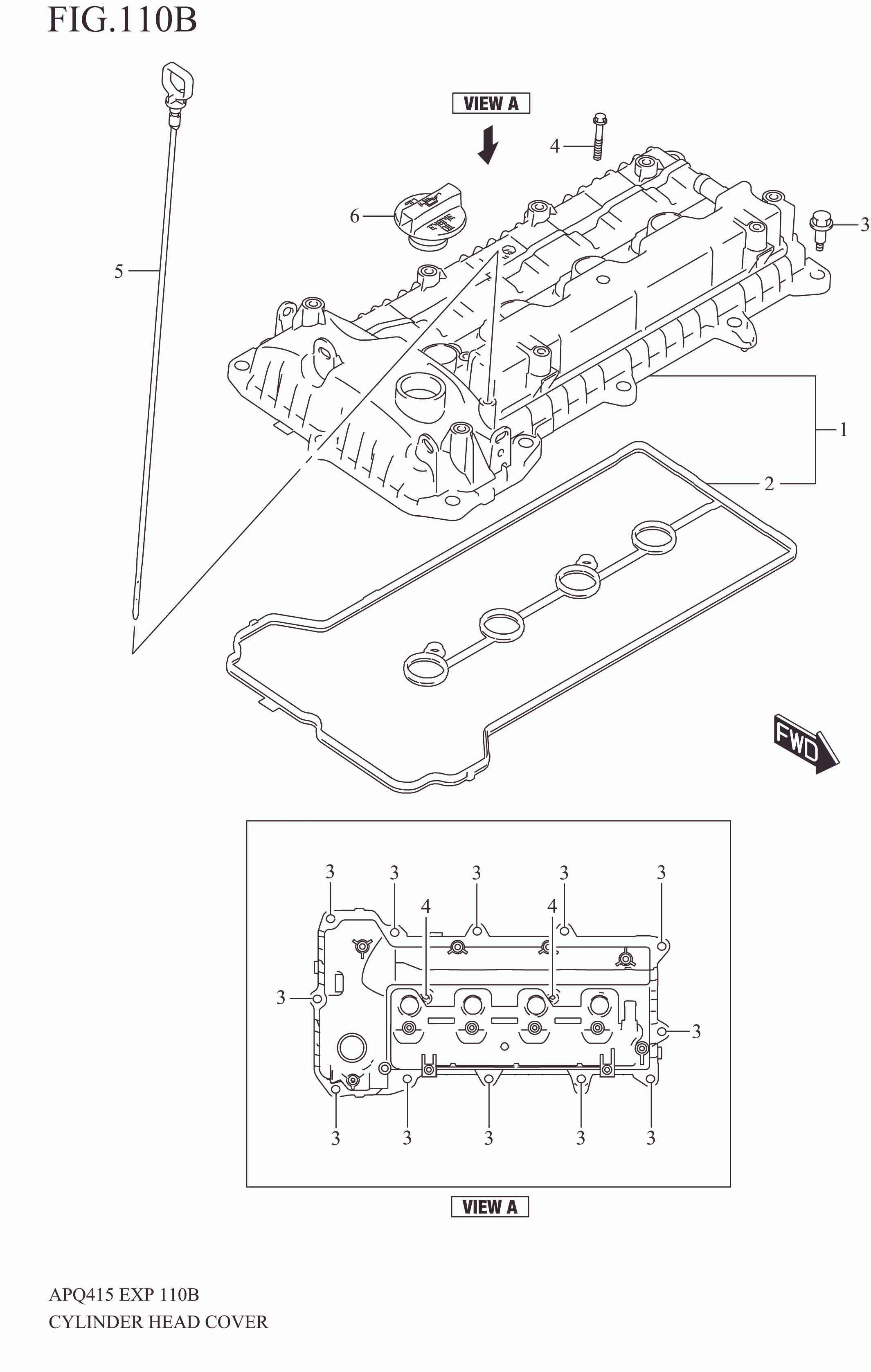

CYLINDER HEAD COVER

CYLINDER HEAD COVER
No No. Part Description Qty Price Per Pcs Remarks
1 11170M52T00-000 COVER ASSY, CYLINDER HEAD 1 Rp738.500
2 11189M52T00-000 .GASKET, CYLINDER HEAD COVER 1 Rp111.500
3 11178-69L00-000 BOLT, CYLINDER HEAD COVER 12 Rp23.000
4 01547-0635A-000 BOLT 2 Rp6.500
5 16910M52T00-000 GAUGE, OIL LEVEL 1 Rp20.000
6 16920-50M01-000 CAP, OIL FILLER 1 Rp114.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
