Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL CYLINDER HEAD COVER CYLINDER HEAD CYLINDER OIL PAN CRANKSHAFT CAM SHAFT/VALVE CAM CHAIN ENGINE MOUNTING INTAKE MANIFOLD THROTTLE BODY AIR CLEANER EXHAUST MANIFOLD MUFFLER DELIVERY PIPE OXYGEN SENSOR AIR FLOW SENSOR PCV HOSE FUEL PUMP OIL PUMP WATER PUMP RADIATOR WATER HOSE THERMOSTAT EMISSION CONTROL EGR VALVE LABEL

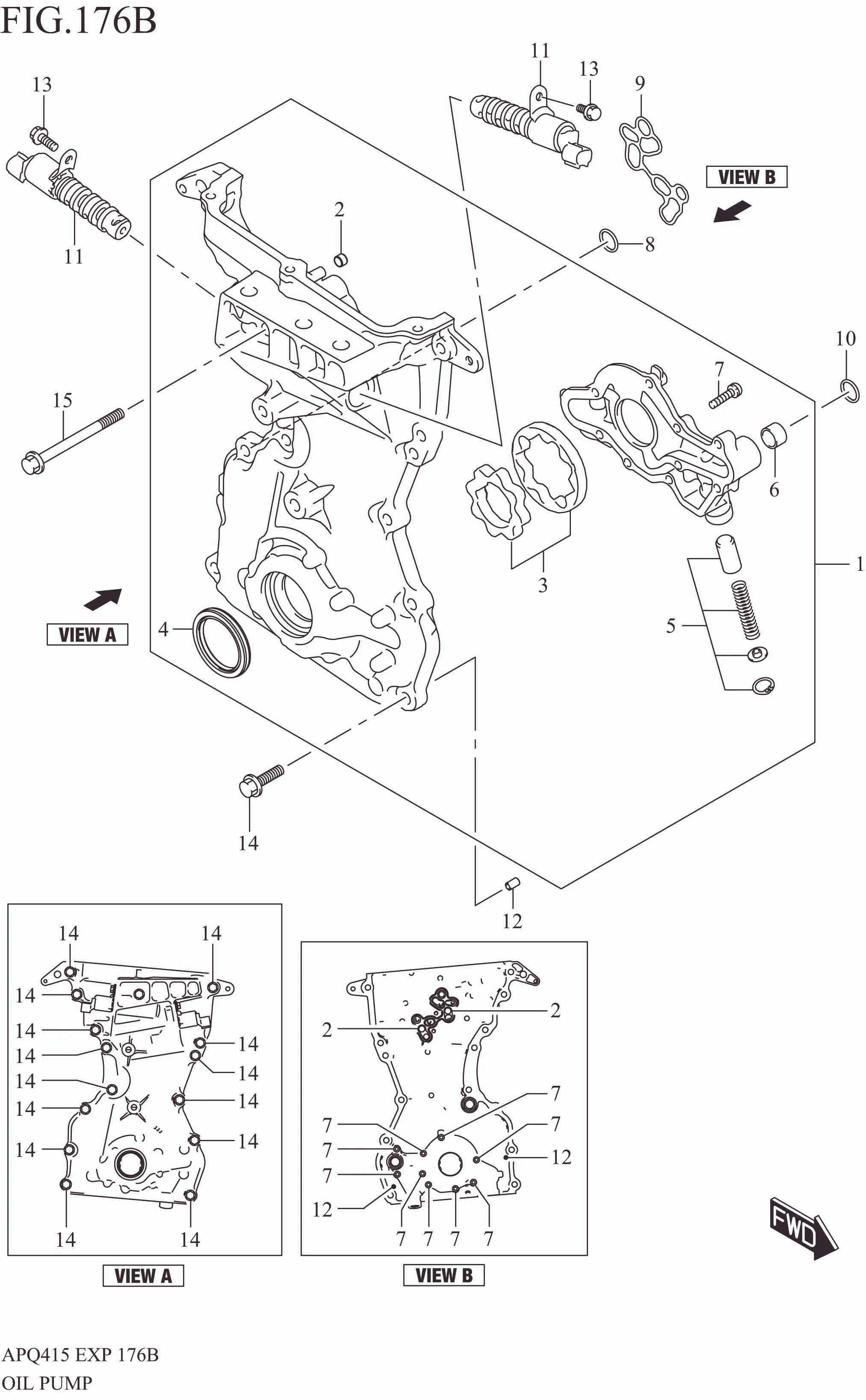

OIL PUMP

OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16100M52T00-000 PUMP ASSY, OIL 1 Rp1.525.500
2 16116-69GE0-000 .FILTER, OIL GALLERY 2 Rp66.000
3 16130M68PA0-000 .ROTOR SET, OIL PUMP 1 Rp377.000
4 16141M68PA0-000 .OIL SEAL, CRANKSHAFT FR 1 Rp64.500
5 16150M68PA0-000 .VALVE SET, OIL PUMP RELIEF 1 Rp47.000
6 16162-69G00-000 .PIPE, OIL GALLERY 1 Rp33.500
7 07130-0625A-000 .BOLT 9 Rp3.500
8 16115M68PA0-000 O RING, OIL GALLERY NO.2 1 Rp7.500
9 16118M68PA0-000 O RING, OCV 1 Rp21.500
10 16119M68K00-000 O RING (D:2.5,ID:16.6) 1 Rp7.000
11 16550M81R10-000 VALVE, OIL CONTROL 2 Rp722.000
12 09206-06005-000 PIN (4X6X11) 2 Rp14.500
13 01550M0612A-000 BOLT 2 Rp5.000
14 01550-0830A-000 BOLT 14 Rp4.000
15 01550M0890A-000 BOLT 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
