Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL CYLINDER HEAD COVER CYLINDER HEAD CYLINDER OIL PAN CRANKSHAFT CAM SHAFT/VALVE CAM CHAIN ENGINE MOUNTING INTAKE MANIFOLD THROTTLE BODY AIR CLEANER EXHAUST MANIFOLD MUFFLER DELIVERY PIPE OXYGEN SENSOR AIR FLOW SENSOR PCV HOSE FUEL PUMP OIL PUMP WATER PUMP RADIATOR WATER HOSE THERMOSTAT EMISSION CONTROL EGR VALVE LABEL

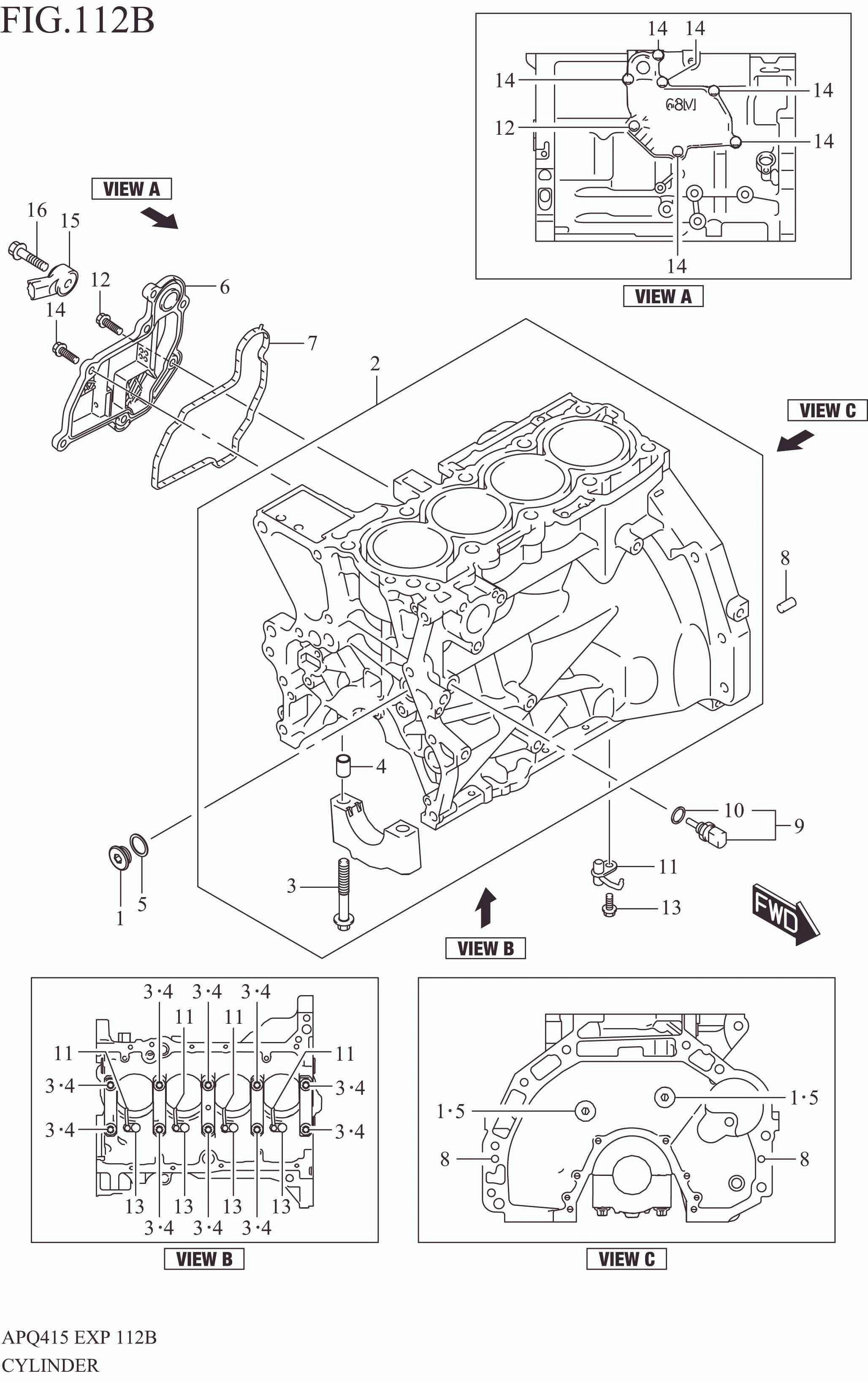

CYLINDER

CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 11119M79G10-000 PLUG (18X8) 3 Rp11.500
2 11200M52T00-000 BLOCK ASSY, CYLINDER 1 Rp9.763.500
3 11261-69J01-000 .BOLT, CRANK BEARING CAP 10 Rp37.000
4 04211M13189-000 .PIN 10 Rp9.000
5 11216M68K10-000 GASKET, PLUG (M18) 3 Rp8.000
6 11220-68M00-000 PLATE, BREATHER 1 Rp135.000
7 11223-68M01-000 GASKET, BREATHER PLATE 1 Rp44.500
8 11519M67L00-000 PIN 2 Rp6.000
9 16570-84MA0-000 SENSOR, OIL TEMP 1 Rp332.500
10 16572-84MA0-000 .GASKET, OIL TEMP SENSOR 1 Rp30.000
11 16710-68M00-000 JET, PISTON COOLING 4 Rp149.500
12 DISCONTINUE
SUB: 09103-06286-000		 BOLT (6X20) 1 -
13 01550-0616A-000 BOLT 4 Rp3.500
14 01550-0620A-000 BOLT 6 Rp3.500
15 18640M72R00-000 SENSOR ASSY, KNOCK 1 Rp157.500
16 01550-0835A-000 BOLT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
