Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL CYLINDER HEAD COVER CYLINDER HEAD CYLINDER OIL PAN CRANKSHAFT CAM SHAFT/VALVE CAM CHAIN ENGINE MOUNTING INTAKE MANIFOLD THROTTLE BODY AIR CLEANER EXHAUST MANIFOLD MUFFLER DELIVERY PIPE OXYGEN SENSOR AIR FLOW SENSOR PCV HOSE FUEL PUMP OIL PUMP WATER PUMP RADIATOR WATER HOSE THERMOSTAT EMISSION CONTROL EGR VALVE LABEL

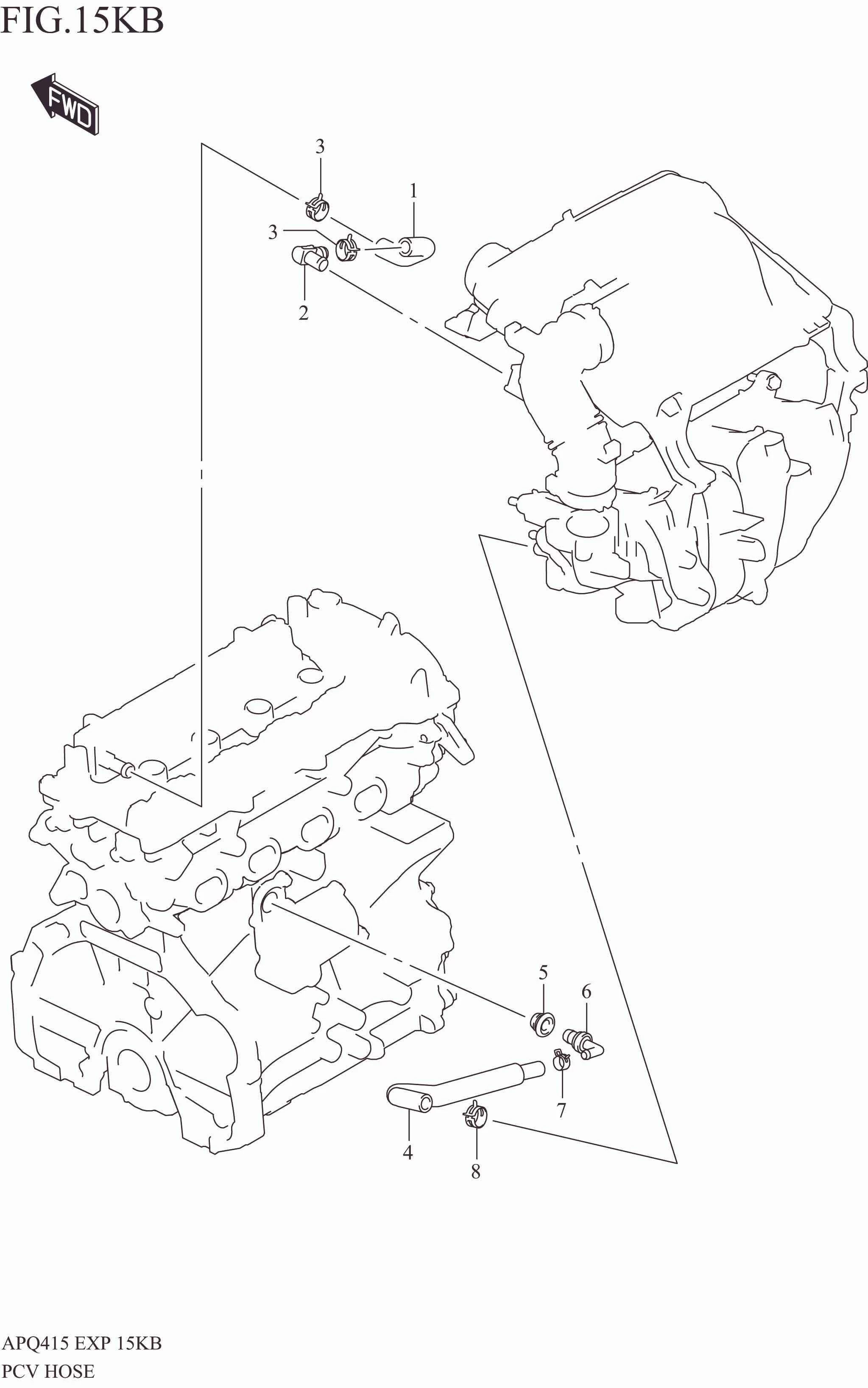

PCV HOSE

PCV HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 11191M54T00-000 HOSE, BREATHER 1 Rp32.000
2 11192M76SA0-000 PIPE, BREATHER HOSE 1 Rp7.500
3 09401M18L07-000 CLIP 2 Rp9.000
4 11193M68PA1-000 HOSE, PCV 1 Rp32.000
5 11198M79F00-000 SEAL, PCV VALVE 1 Rp16.500
6 18118-93J00-000 VALVE, PCV 1 Rp152.500
7 09401M13L04-000 CLIP (ID:13.8) 1 Rp6.000
8 09401M18L07-000 CLIP 1 Rp9.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
