Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL CYLINDER HEAD COVER CYLINDER HEAD CYLINDER OIL PAN CRANKSHAFT CAM SHAFT/VALVE CAM CHAIN ENGINE MOUNTING INTAKE MANIFOLD THROTTLE BODY AIR CLEANER EXHAUST MANIFOLD MUFFLER DELIVERY PIPE OXYGEN SENSOR AIR FLOW SENSOR PCV HOSE FUEL PUMP OIL PUMP WATER PUMP RADIATOR WATER HOSE THERMOSTAT EMISSION CONTROL EGR VALVE LABEL

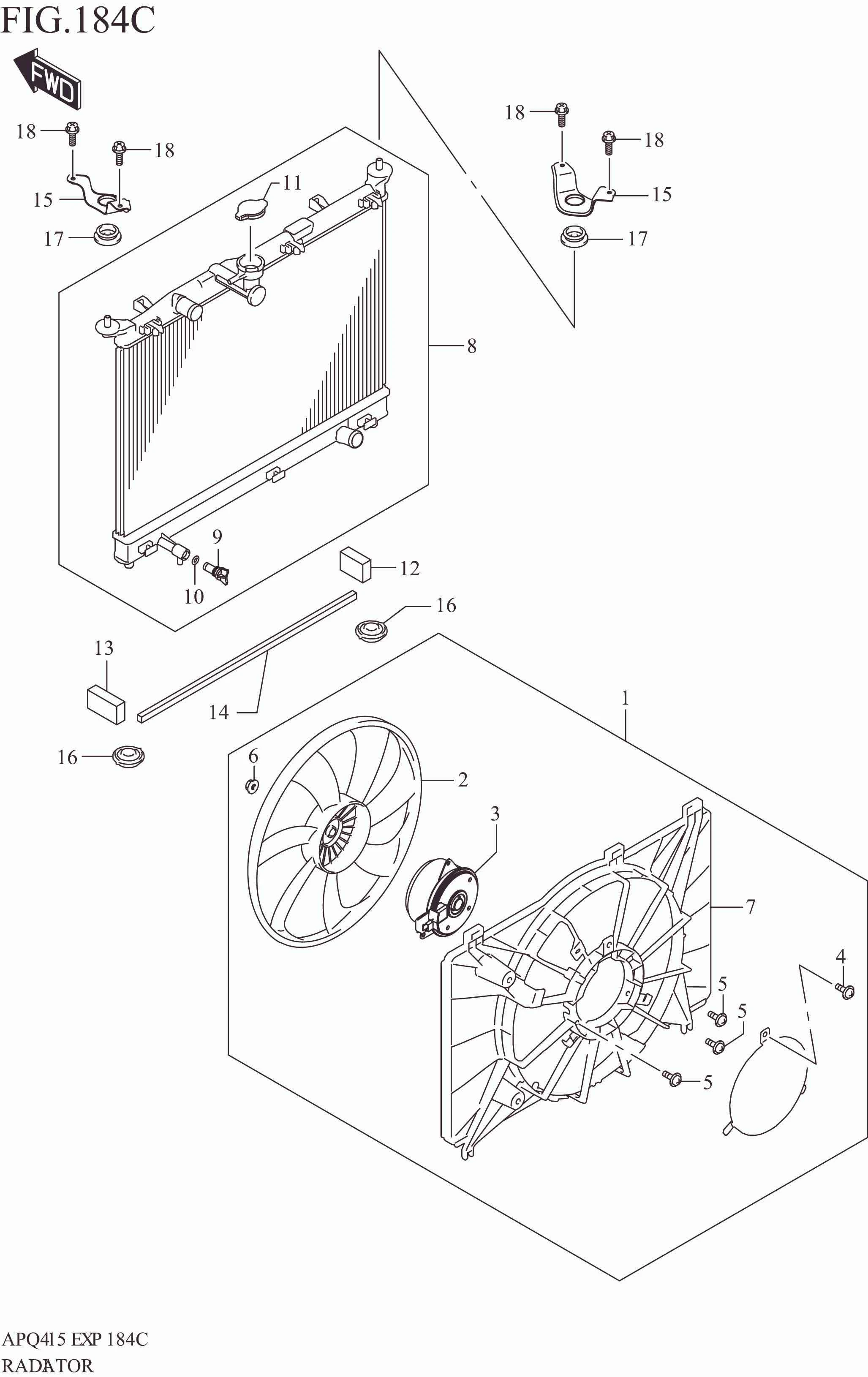

RADIATOR

RADIATOR
No No. Part Description Qty Price Per Pcs Remarks
1 17100M76T00-000 BLOWER ASSY, W/SHROUD 1 Rp2.665.500
2 17111M85S00-000 .FAN ASSY 1 Rp172.500
3 17120M85S01-000 .MOTOR ASSY 1 Rp1.464.500
4 17129M50F10-000 .SCREW (5X11) 1 Rp5.500
5 17129M85S00-000 .BOLT 3 Rp18.500
6 17130M85S00-000 .NUT 1 Rp20.500
7 17760M76T00-000 .SHROUD ASSY, FAN 1 Rp818.000
8 17700M76T00-000 RADIATOR ASSY 1 Rp3.221.000
9 17751-61A00-000 .PLUG, DRAIN 1 Rp13.000
10 17759-82K00-000 .O RING 1 Rp7.500
11 17920M76M00-000 .CAP 1 Rp335.000
12 17791M76T00-000 SEAL, RADIATOR 1 Rp4.000
13 17792M76T00-000 SEAL, RADIATOR 1 Rp4.500
14 17793M61M00-000 SEAL, RADIATOR NO.3 1 Rp22.500
15 17861M76T00-000 BRACKET, RDTR SUPPORT UPPER 2 Rp36.500
16 17878M68P00-000 MOUNT, RADIATOR SUPPORT LOWER 2 Rp17.000
17 17879M76M00-000 BRACKET, RDTR UPR 2 Rp18.500
18 02162-0616A-000 SCREW 4 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
