Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL CYLINDER HEAD COVER CYLINDER HEAD CYLINDER OIL PAN CRANKSHAFT CAM SHAFT/VALVE CAM CHAIN ENGINE MOUNTING INTAKE MANIFOLD THROTTLE BODY AIR CLEANER EXHAUST MANIFOLD MUFFLER DELIVERY PIPE OXYGEN SENSOR AIR FLOW SENSOR PCV HOSE FUEL PUMP OIL PUMP WATER PUMP RADIATOR WATER HOSE THERMOSTAT EMISSION CONTROL EGR VALVE LABEL

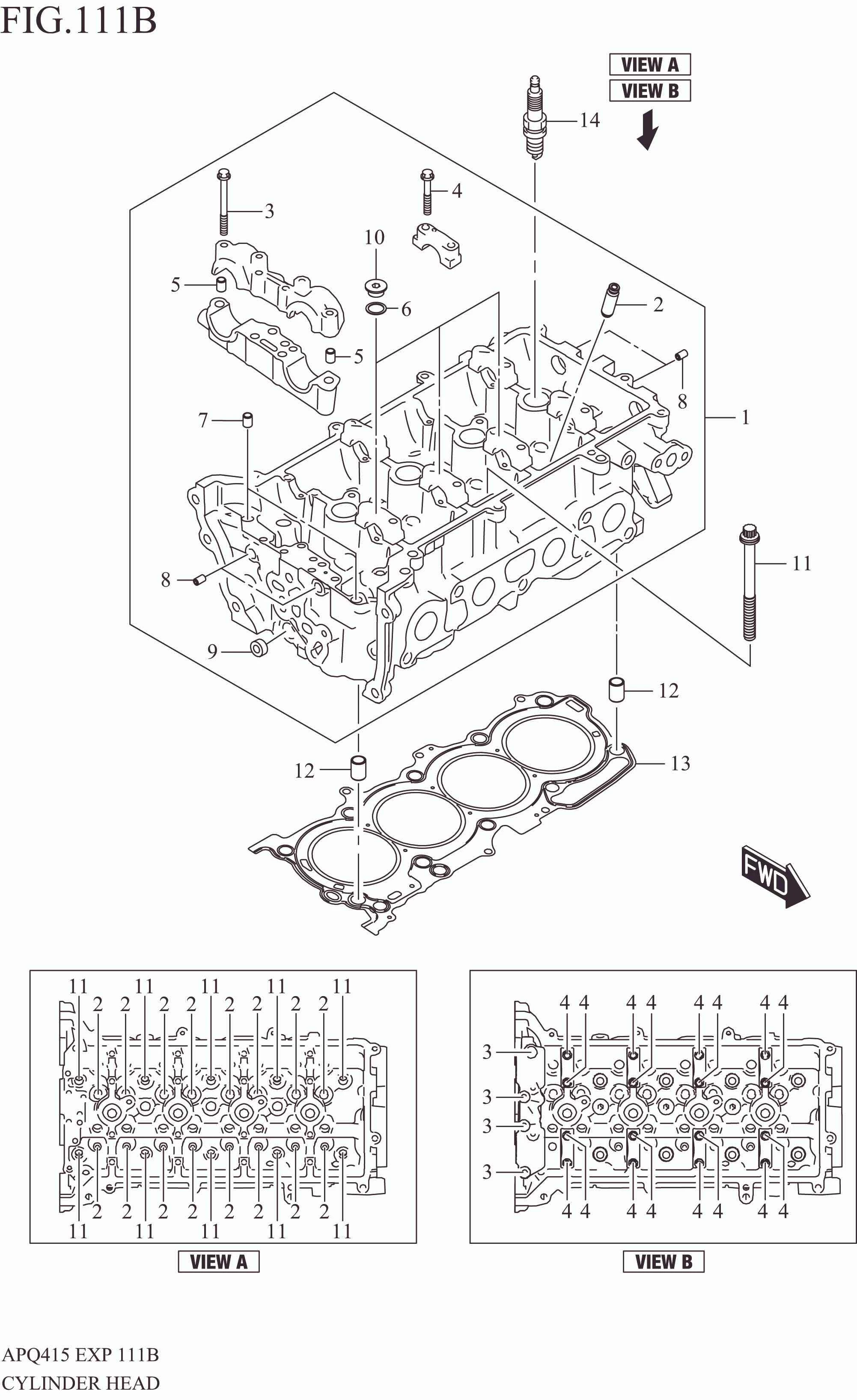

CYLINDER HEAD

CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 11100M52T00-000 HEAD ASSY, CYLINDER 1 Rp7.340.500
2 11115M74L10-001 .GUIDE, VALVE 16 Rp12.500
3 11128-68M00-000 .BOLT, CAMSHAFT HOUSING (6X70) 4 Rp35.000
4 11128-58M00-000 .BOLT, CAMSHAFT HOUSING (6X39) 16 Rp26.500
5 09206-08001-000 .PIN (8X11) 2 Rp5.500
6 11216M68K10-000 .GASKET, PLUG (M18) 3 Rp8.000
7 09206-08001-000 .PIN (8X11) 2 Rp5.500
8 09246M05003-000 .PLUG (1/8PT,H:8) 4 Rp7.000
9 DISCONTINUE
SUB: 09246-08004-000		 .PLUG (3/8PT,H:7.5) 1 -
10 09248-18011-000 .PLUG (18X8) 3 Rp38.000
11 11117-69J00-000 BOLT, CYLINDER HEAD 10 Rp64.500
12 04211M13189-000 PIN 2 Rp9.000
13 11141M52T00-000 GASKET, CYLINDER HEAD 1 Rp360.500
14 09482-00668-000 SPARK PLUG (ILZKR6Q11) (NGK) 4 Rp345.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
