Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL CYLINDER HEAD COVER CYLINDER HEAD CYLINDER OIL PAN CRANKSHAFT CAM SHAFT/VALVE CAM CHAIN ENGINE MOUNTING INTAKE MANIFOLD THROTTLE BODY AIR CLEANER EXHAUST MANIFOLD MUFFLER DELIVERY PIPE OXYGEN SENSOR AIR FLOW SENSOR PCV HOSE FUEL PUMP OIL PUMP WATER PUMP RADIATOR WATER HOSE THERMOSTAT EMISSION CONTROL EGR VALVE LABEL

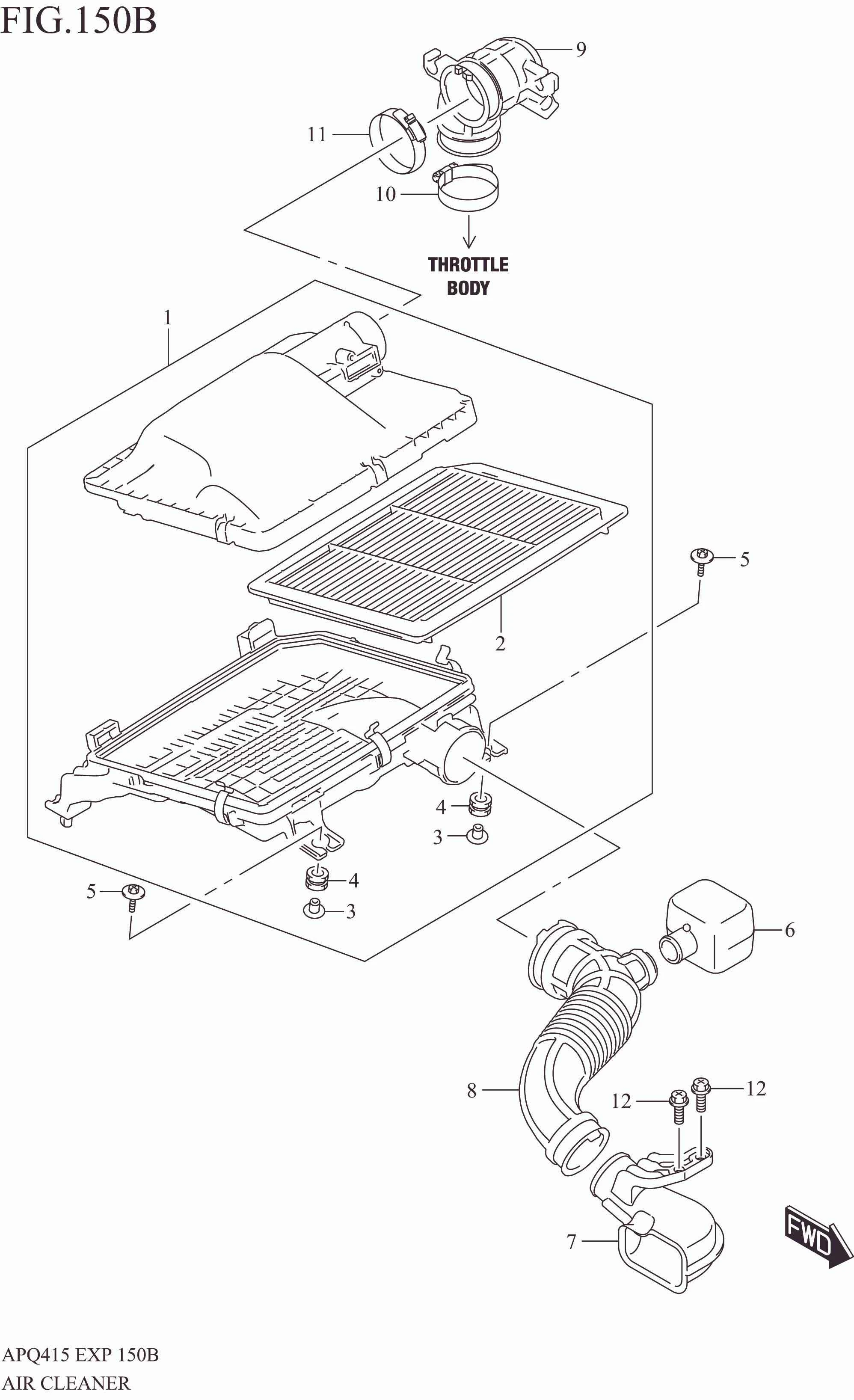

AIR CLEANER

AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700M54T00-000 CLEANER ASSY, AIR 1 Rp372.000
2 13780M76SA0-000 .ELEMENT, AIR CLEANER 1 Rp76.000
3 13724M68PA0-000 .COLLAR, AIR CLEANER 2 Rp8.500
4 13723M68PA0-000 .GROMMET, AIR CLNR 2 Rp11.000
5 09136-06141-000 SCREW (6X25) 2 Rp17.000
6 13764M50U00-000 RESONATOR 1 Rp41.000
7 13765M76T00-000 PIPE, AIR CLNR SUCT 1 Rp55.500
8 13766M76T00-000 HOSE, AIR CLNR SUCT 1 Rp176.500
9 13881M50U00-000 HOSE, AIR CLNR OUT 1 Rp119.000
10 13892M74L50-000 CLAMP 1 Rp39.500
11 13893M74L50-000 CLAMP 1 Rp47.500
12 02162-0616A-000 SCREW 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
