BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.580A FRONT FENDER PANELFIG.590A FRONT BODY PANELFIG.600A FLOOR PANELFIG.640A SIDE BODY PANELFIG.660A ROOF PANELFIG.717A FRONT BUMPERFIG.718A REAR BUMPERFIG.720A INSTRUMENT PANELFIG.730A VENTILATORFIG.732A HEATER UNITFIG.740A CONSOLE BOXFIG.73AA HEATER CONTROLFIG.741A FLOOR CARPETFIG.745A INTERIOR TRIMFIG.750A COVER/CAPFIG.755A FUEL LID OPENERFIG.757A ROOF SIDE PADFIG.760A ROOF LININGFIG.772A MOLDINGFIG.774A SPLASH GUARDFIG.780A EMBLEMFIG.790A WINDSHIELDFIG.800A FRONT DOOR PANELFIG.801A REAR DOOR PANELFIG.805A BACK DOOR PANELFIG.810A FRONT DOOR REGULATORFIG.811A REAR DOOR REGULATORFIG.820A FRONT DOOR LOCKFIG.821A REAR DOOR LOCKFIG.824A BACK DOOR LOCKFIG.835A MIRROR/SUNVISORFIG.840A SEAT BELTFIG.848A FRONT LH SEATFIG.849A FRONT RH SEATFIG.850A REAR SEATFIG.860A PARCEL SHELFFIG.865A FUEL TANKFIG.893A TOOLFIG.952A AIR CONDITIONERFIG.990A COMPRESSOR

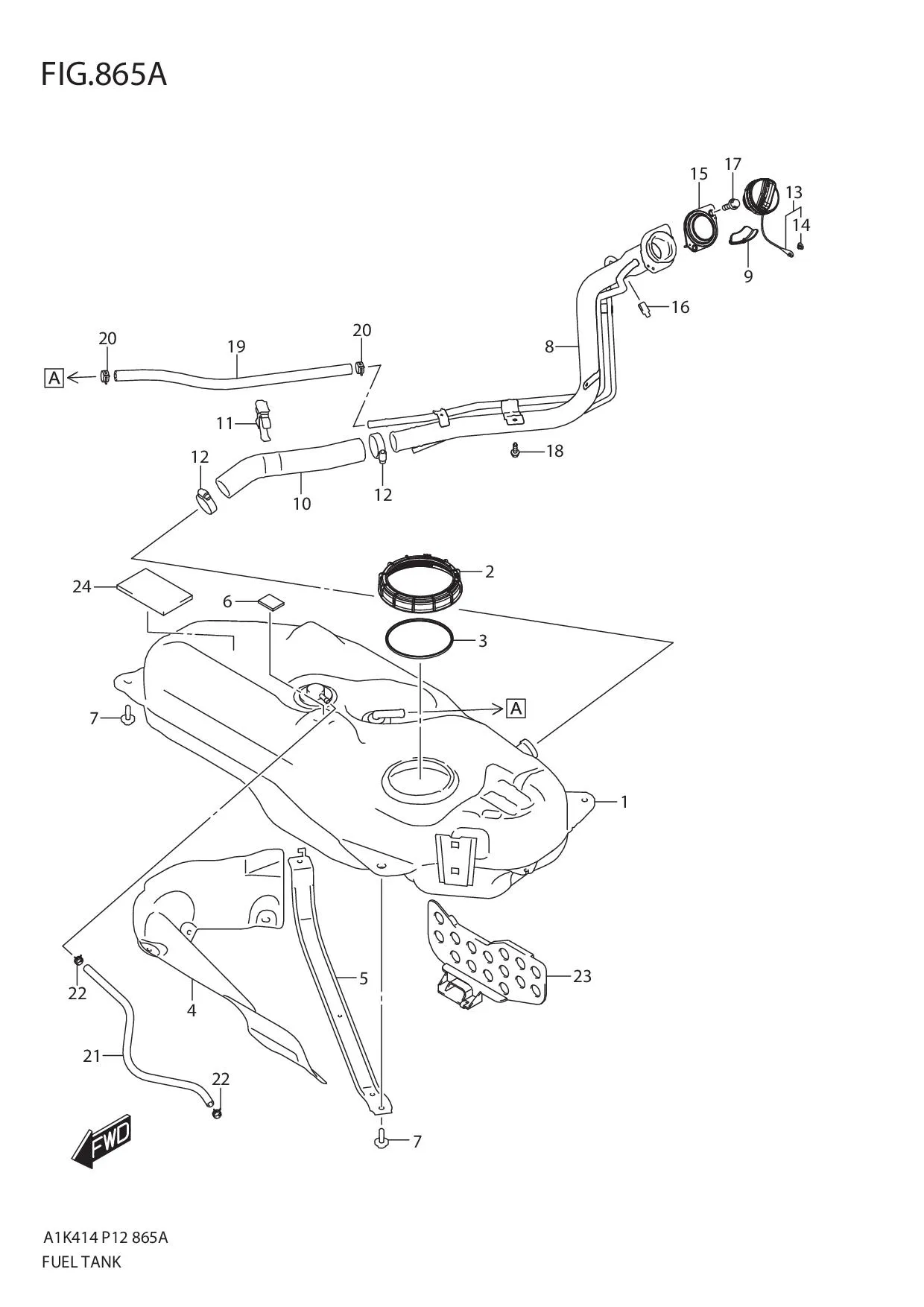

FIG.865A FUEL TANK

FIG.865A FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 89101M68P20-000 TANK, FUEL 1 Rp3.537.000
2 89191-68L00-000 NUT, FUEL PUMP LOCK 1 Rp855.000
3 89192-62J00-000 O RING, FUEL PUMP 1 Rp313.500
4 89311M68P00-000 INSULATOR, HEAT 1 Rp343.500
5 89363M68P00-000 BELT, FUEL TANK SUPPORT 1 Rp91.500
6 89385-76M00-000 PAD, FUEL TANK 1 Rp359.000
7 89199M68P00-000 BOLT, FUEL TANK FIXER 4 Rp13.500
8 89210M68P20-000 NECK, FUEL FILLER 1 Rp1.350.000
9 89232M74L00-000 COVER, FUEL FILLER NECK 1 Rp11.000
10 89241M68P00-000 HOSE, FUEL TANK FILLER 1 Rp218.000
11 89242M68P00-000 CLAMP, FILLER & BREATHER HOSE 1 Rp12.500
12 89243M68PA0-000 CLAMP, FUEL FILLER HOSE 2 Rp41.000
13 89260M60MA0-000 CAP ASSY, FUEL FILLER 1 Rp599.500
14 89267M60M00-000 •CLIP, CAP TETHER 1 Rp14.000
15 89285M58J00-000 PACKING, FUEL FILLER 1 Rp13.500
16 89481M68P00-000 FILTER, AIR SUCTION 1 Rp8.500
17 09116-05023-000 BOLT (5X20) 2 Rp18.500
18 DISCONTINUE
SUB: 09116-06205-000		 BOLT (6X16) 1 -
19 09355M11189-440 HOSE (11X17X440) 1 Rp134.500
20 09401M16L01-000 CLIP 2 Rp9.000
21 18888M75J00-520 HOSE, FUEL EVAP 1 Rp45.000
22 09401M11432-000 CLIP 2 Rp6.000
23 89185M68P00-000 PLATE, FUEL TANK BAFFLE 1 Rp144.000
24 89386M68P00-000 PAD, FUEL TANK 1 Rp171.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
