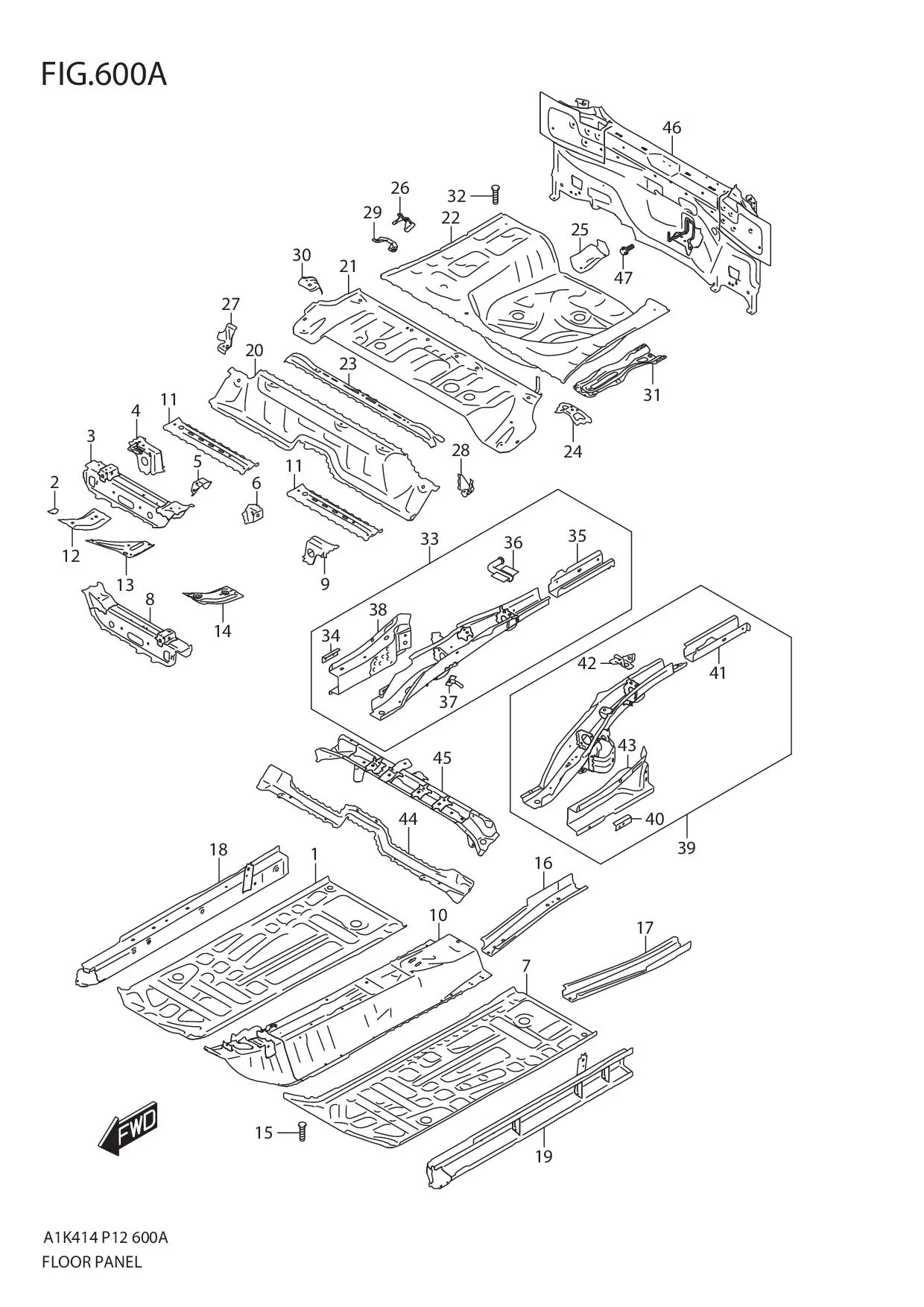

FIG.600A FLOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	61111M68P10-000	PAN, MAIN FLOOR RH	1	Rp840.000
2	61112M68P00-000	BRACKET, DASH LOWER PAD	1	Rp18.000
3	61120M68P10-000	CROSSMEMBER, FLR PAN UPR RH	1	Rp516.500
4	61130M68P00-000	BRACKET, FR SEAT RR OUT RH	1	Rp148.000
5	61141M68P00-000	BRACKET, FR SEAT RR INSIDE RH	1	Rp31.000
6	61143M68P00-000	BRACKET, FR SEAT RR INSIDE LH	1	Rp31.000
7	61161M68P10-000	PAN, MAIN FLOOR LH	1	Rp840.000
8	61170M68P00-000	CROSSMEMBER, FLR PAN UPR LH	1	Rp516.500
9	61180M68P00-000	BRACKET, FR SEAT RR OUT LH	1	Rp148.000
10	61210M68P50-000	TUNNEL, MAIN FLOOR	1	Rp1.788.000
11	61232M68P00-000	CROSSMEMBER, FLOOR PAN UPR RR	2	Rp143.000
12	61234M68P00-000	REINF, MAIN FLOOR RH	1	Rp127.000
13	61235M68P00-000	REINF, MAIN FLOOR INSIDE RH	1	Rp84.000
14	61284M68P00-000	REINF, MAIN FLOOR LH	1	Rp127.000
15	09119-05018-000	BOLT (5X14.3)	4	Rp13.500
16	61241M68P10-000	MEMBER, FLOOR SIDE REAR RH	1	Rp463.000
17	61261M68P10-000	MEMBER, FLOOR SIDE REAR LH	1	Rp463.000
18	61310M68P10-000	PANEL, SIDE SILL INNER RH	1	Rp995.000
19	61320M68P10-000	PANEL, SIDE SILL INNER LH	1	Rp995.000
20	61511M68P11-000	PANEL, REAR FLOOR FR	1	Rp817.000
21	61512M68P10-000	PANEL, REAR FLOOR CTR	1	Rp612.000
22	61513M68P10-000	PANEL, REAR FLOOR RR	1	Rp1.378.000
23	61516M68P00-000	MEMBER, SEAT SUPPORT	1	Rp110.000
24	61518M68P00-000	BRACKET, SPARE TIRE	1	Rp22.000
25	61520M68P00-000	HOOK, TOWING REAR	1	Rp105.000
26	61530M68P00-000	STRIKER, CHILD ANCHOR	4	Rp27.000
27	61541M68P01-000	BRACKET, FUEL TANK FRONT RH	1	Rp34.500
28	61542M68P00-000	BRACKET, FUEL TANK FRONT LH	1	Rp20.500
29	61551M68P00-000	REINF, CHILD ANCHOR OUTSIDE	2	Rp18.500
30	61561M68P00-000	PATCH, SEAT BACK CTR HINGE	1	Rp25.000
31	61571M68P00-000	REINF, REAR FLOOR UNDER	1	Rp105.000
32	09119-05018-000	BOLT (5X14.3)	4	Rp13.500
33	62100M68P20-000	MEMBER, RR FLOOR SIDE RH	1	Rp1.613.500
34	61315M68P00-000	•REINF, JACKING	1	Rp27.000
35	62124M68P10-000	•EXTENSION, RR FLR SIDE MBR RR RH	1	Rp191.000
36	62140M68P00-000	•ROD, MUFFLER HANGER	1	Rp43.000
37	62150M68P00-000	•ROD, MUFFLER HANGER FR	1	Rp43.000
38	62211M68P10-000	•COMPARTMENT, REAR FLOOR RH	1	Rp692.500
39	62300M68P20-000	MEMBER, RR FLOOR SIDE LH	1	Rp1.613.500
40	61315M68P00-000	•REINF, JACKING	1	Rp27.000
41	62324M68P10-000	•EXTENSION, RR FLR SIDE MBR RR LH	1	Rp191.000
42	62327M68P00-000	•REINF, RR FLR SIDE MBR SIDE	1	Rp34.500
43	62411M68P10-000	•COMPARTMENT, REAR FLOOR LH	1	Rp692.500
44	62611M68P10-000	CROSSMEMBER, REAR FLOOR FRONT	1	Rp118.500
45	62700M68P10-000	CROSSMEMBER, RR FLOOR CTR	1	Rp1.033.500
46	65500M68P10-000	PANEL, BACK	1	Rp2.361.000
47	01550M0612A-000	BOLT	4	Rp5.000
