BALENO AK414

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANEL FIG.580A FRONT FENDER PANEL FIG.590A FRONT BODY PANEL FIG.600A FLOOR PANEL FIG.640A SIDE BODY PANEL FIG.660A ROOF PANEL FIG.717A FRONT BUMPER FIG.718A REAR BUMPER FIG.720A INSTRUMENT PANEL FIG.730A VENTILATOR FIG.732A HEATER UNIT FIG.740A CONSOLE BOX FIG.73AA HEATER CONTROL FIG.741A FLOOR CARPET FIG.745A INTERIOR TRIM FIG.750A COVER/CAP FIG.755A FUEL LID OPENER FIG.757A ROOF SIDE PAD FIG.760A ROOF LINING FIG.772A MOLDING FIG.774A SPLASH GUARD FIG.780A EMBLEM FIG.790A WINDSHIELD FIG.800A FRONT DOOR PANEL FIG.801A REAR DOOR PANEL FIG.805A BACK DOOR PANEL FIG.810A FRONT DOOR REGULATOR FIG.811A REAR DOOR REGULATOR FIG.820A FRONT DOOR LOCK FIG.821A REAR DOOR LOCK FIG.824A BACK DOOR LOCK FIG.835A MIRROR/SUNVISOR FIG.840A SEAT BELT FIG.848A FRONT LH SEAT FIG.849A FRONT RH SEAT FIG.850A REAR SEAT FIG.860A PARCEL SHELF FIG.865A FUEL TANK FIG.893A TOOL FIG.952A AIR CONDITIONER FIG.990A COMPRESSOR

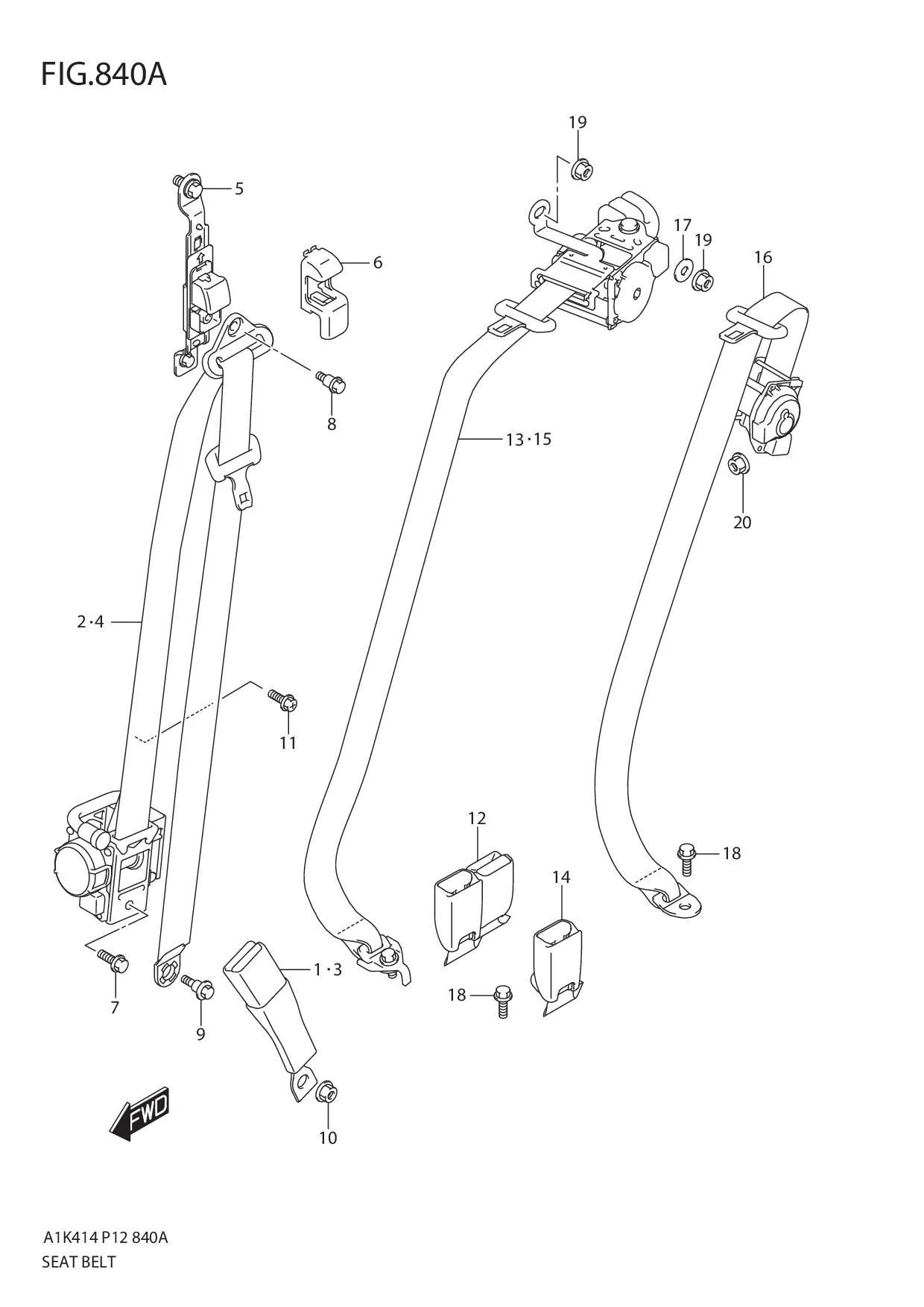

FIG.840A SEAT BELT

FIG.840A SEAT BELT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	84910M68PA0-000	BUCKLE ASSY, FR BELT RH	1	Rp485.000
2	84920M68PC0-BHE	TONGUE ASSY, FR BELT RH (BLACK/GRAY)	1	Rp1.592.500
3	84910M68PC0-000	BUCKLE ASSY, FR BELT LH	1	Rp266.000
4	84940M68PB0-BHE	TONGUE ASSY, FR BELT LH (BLACK/GRAY)	1	Rp1.592.500
5	84990M81M00-6GS	ADJUSTER, FR SHOULDER (GRAY)	2	Rp384.000
6	DISCONTINUE SUB: 84991-79K00-6GS	COVER, SHOULDER ADJUSTER (GRAY)	2	-
7	09103M11002-000	BOLT (11X22)	2	Rp7.500
8	09111M11007-000	BOLT (7/16X25)	2	Rp15.000
9	09111M11008-000	BOLT (7/16X38)	2	Rp27.000
10	09159M11006-000	NUT	2	Rp11.500
11	02162-0612A-000	SCREW	2	Rp11.000
12	84950M68PA0-000	BUCKLE ASSY, RR RH	1	Rp560.000
13	84960M68PA0-5PK	TONGUE ASSY, RR RH (BLACK)	1	Rp1.062.000
14	84970M68PA0-000	BUCKLE ASSY, RR LH	1	Rp278.000
15	84980M68PA0-5PK	TONGUE ASSY, RR LH (BLACK)	1	Rp1.062.000
16	84985M68PA0-5PK	TONGUE ASSY, RR CTR (BLACK)	1	Rp588.000
17	84961M68P00-000	WASHER, RR BELT	2	Rp9.000
18	09103M11002-000	BOLT (11X22)	2	Rp7.500
19	09159M11007-000	NUT	4	Rp8.500
20	09159M11007-000	NUT	1	Rp8.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
