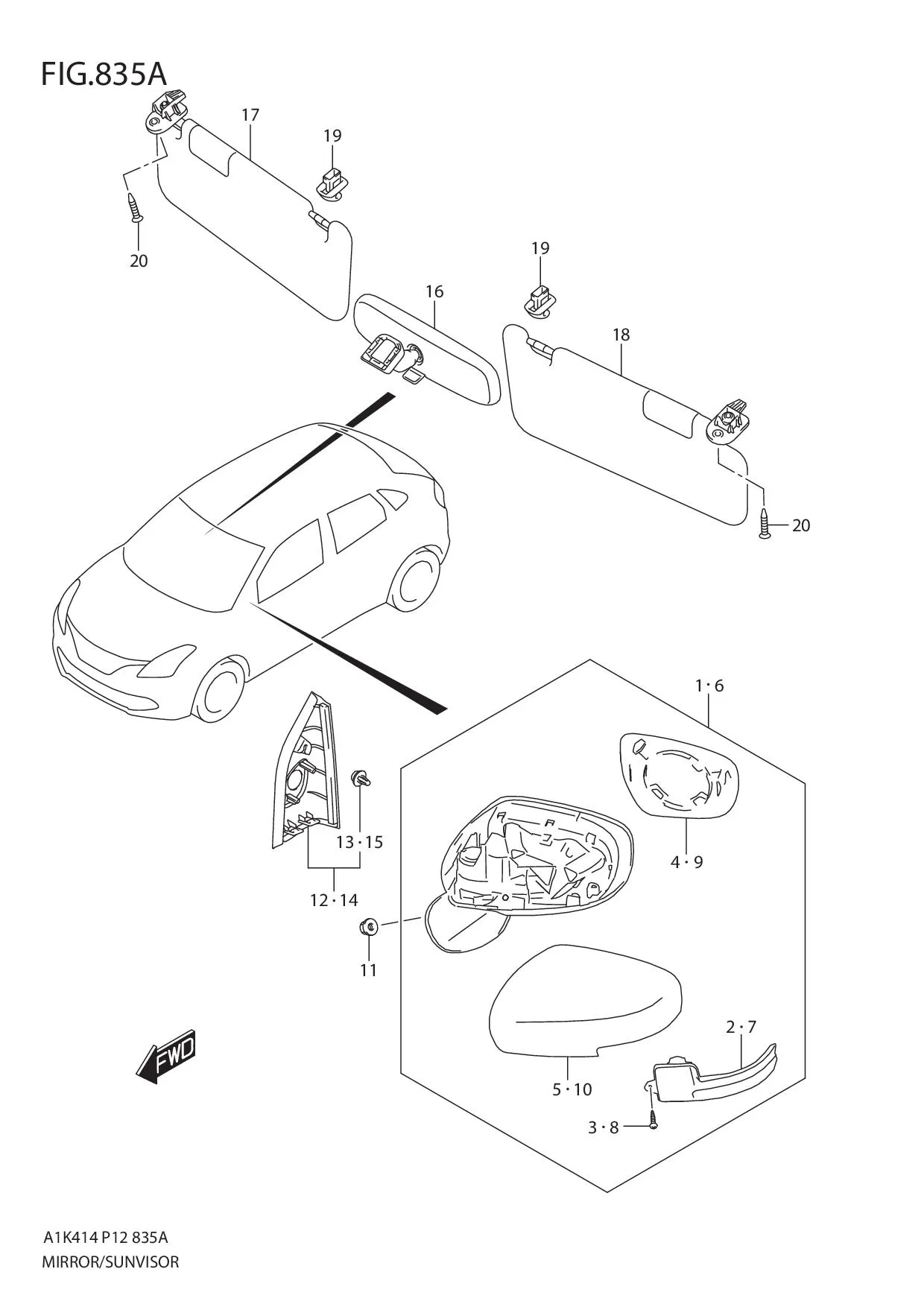

FIG.835A MIRROR/SUNVISOR

No	No. Part	Description	Qty	Price Per Pcs
1-2	84701M68PC0-ZQS	MIRROR ASSY, OUT REAR VIEW RH (SILVER)	1	Rp3.107.500
1-3	84701M68PC0-ZQT	MIRROR ASSY, OUT REAR VIEW RH (BLUE)	1	Rp3.107.500
1-4	84701M68PC1-ZTN SUB: 84701M68PC0-ZTN	MIRROR ASSY, OUT REAR VIEW RH (GRAY)	1	Rp2.461.500
1-5	84701M68PC1-Z4Q SUB: 84701M68PC0-Z4Q	MIRROR ASSY, OUT REAR VIEW RH (RED)	1	Rp3.107.500
1-6	84701M68PC1-ZAM SUB: 84701M68PC0-ZAM	MIRROR ASSY, OUT REAR VIEW RH (BLACK)	1	Rp3.036.500
1-1	84701M68PC1-ZHJ SUB: 84701M68PC0-ZHJ	MIRROR ASSY, OUT REAR VIEW RH (WHITE)	1	Rp2.690.000
2	36410M76M00-000	•LAMP ASSY, SIDE TURN SIG RH	1	Rp357.500
3	84717M76M00-000	•SCREW, TURN SIGNAL LAMP RH	1	Rp8.500
4	84730M76M00-000	•GLASS, OUT RR VIEW MIR RH	1	Rp135.000
5-1	84718M76M20-ZHJ	•COVER, MIRROR VISOR RH (WHITE)	1	Rp306.500
5-6	84718M76M20-ZAM	•COVER, MIRROR VISOR RH (BLACK)	1	Rp265.500
5-5	84718M76M20-Z4Q	•COVER, MIRROR VISOR RH (RED)	1	Rp314.500
5-4	84718M76M20-ZTN	•COVER, MIRROR VISOR RH (GRAY)	1	Rp314.500
5-3	84718M76M20-ZQT	•COVER, MIRROR VISOR RH (BLUE)	1	Rp314.500
5-2	84718M76M20-ZQS	•COVER, MIRROR VISOR RH (SILVER)	1	Rp314.500
6-6	84702M68PC1-ZAM SUB: 84702M68PC0-ZAM	MIRROR ASSY, OUT REAR VIEW LH (BLACK)	1	Rp3.036.500
6-5	84702M68PC1-Z4Q SUB: 84702M68PC0-Z4Q	MIRROR ASSY, OUT REAR VIEW LH (RED)	1	Rp3.107.500
6-4	84702M68PC1-ZTN SUB: 84702M68PC0-ZTN	MIRROR ASSY, OUT REAR VIEW LH (GRAY)	1	Rp2.461.500
6-2	84702M68PC0-ZQS	MIRROR ASSY, OUT REAR VIEW LH (SILVER)	1	Rp3.107.500
6-1	84702M68PC1-ZHJ SUB: 84702M68PC0-ZHJ	MIRROR ASSY, OUT REAR VIEW LH (WHITE)	1	Rp2.690.000
6-3	84702M68PC0-ZQT	MIRROR ASSY, OUT REAR VIEW LH (BLUE)	1	Rp3.107.500
7	36430M76M00-000	•LAMP ASSY, SIDE TURN SIG LH	1	Rp357.500
8	84717M76M00-000	•SCREW, TURN SIGNAL LAMP LH	1	Rp8.500
9	84740M76M00-000	•GLASS, OUT RR VIEW MIR LH	1	Rp135.000
10-6	84728M76M20-ZAM	•COVER, MIRROR VISOR LH (BLACK)	0	Rp265.500
10-5	84728M76M20-Z4Q	•COVER, MIRROR VISOR LH (RED)	1	Rp314.500
10-4	84728M76M20-ZTN	•COVER, MIRROR VISOR LH (GRAY)	1	Rp314.500
10-3	84728M76M20-ZQT	•COVER, MIRROR VISOR LH (BLUE)	1	Rp314.500
10-2	84728M76M20-ZQS	•COVER, MIRROR VISOR LH (SILVER)	1	Rp314.500
10-1	84728M76M20-ZHJ	•COVER, MIRROR VISOR LH (WHITE)	1	Rp306.500
11	08316-1006A-000 SUB: 08316B1006AN000	NUT	6	Rp2.000
12	84750M68P10-5PK	GARNISH, SASH BRKT INR RH (BLACK)	1	Rp39.500
13	09409-10327-000 SUB: 09409M10L02-000	•CLIP RH	1	Rp5.000
14	84790M68P10-5PK	GARNISH, SASH BRKT INR LH (BLACK)	1	Rp39.500
15	09409-10327-000 SUB: 09409M10L02-000	•CLIP LH	1	Rp5.000
16	84703M79M01-000	MIRROR ASSY, INS RR VIEW	1	Rp380.000
17	84801M76M00-6GS	SUNVISOR ASSY RH (GRAY)	1	Rp186.000
18	84802M76M52-6GS SUB: 84802M76M51-6GS	SUNVISOR ASSY LH (GRAY)	1	Rp359.000
19	84851M74L00-6GS	HOLDER, SUNVISOR (GRAY)	2	Rp17.000
20	09139M05089-000	SCREW (5X13)	2	Rp5.500
