BALENO AK414

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANEL FIG.580A FRONT FENDER PANEL FIG.590A FRONT BODY PANEL FIG.600A FLOOR PANEL FIG.640A SIDE BODY PANEL FIG.660A ROOF PANEL FIG.717A FRONT BUMPER FIG.718A REAR BUMPER FIG.720A INSTRUMENT PANEL FIG.730A VENTILATOR FIG.732A HEATER UNIT FIG.740A CONSOLE BOX FIG.73AA HEATER CONTROL FIG.741A FLOOR CARPET FIG.745A INTERIOR TRIM FIG.750A COVER/CAP FIG.755A FUEL LID OPENER FIG.757A ROOF SIDE PAD FIG.760A ROOF LINING FIG.772A MOLDING FIG.774A SPLASH GUARD FIG.780A EMBLEM FIG.790A WINDSHIELD FIG.800A FRONT DOOR PANEL FIG.801A REAR DOOR PANEL FIG.805A BACK DOOR PANEL FIG.810A FRONT DOOR REGULATOR FIG.811A REAR DOOR REGULATOR FIG.820A FRONT DOOR LOCK FIG.821A REAR DOOR LOCK FIG.824A BACK DOOR LOCK FIG.835A MIRROR/SUNVISOR FIG.840A SEAT BELT FIG.848A FRONT LH SEAT FIG.849A FRONT RH SEAT FIG.850A REAR SEAT FIG.860A PARCEL SHELF FIG.865A FUEL TANK FIG.893A TOOL FIG.952A AIR CONDITIONER FIG.990A COMPRESSOR

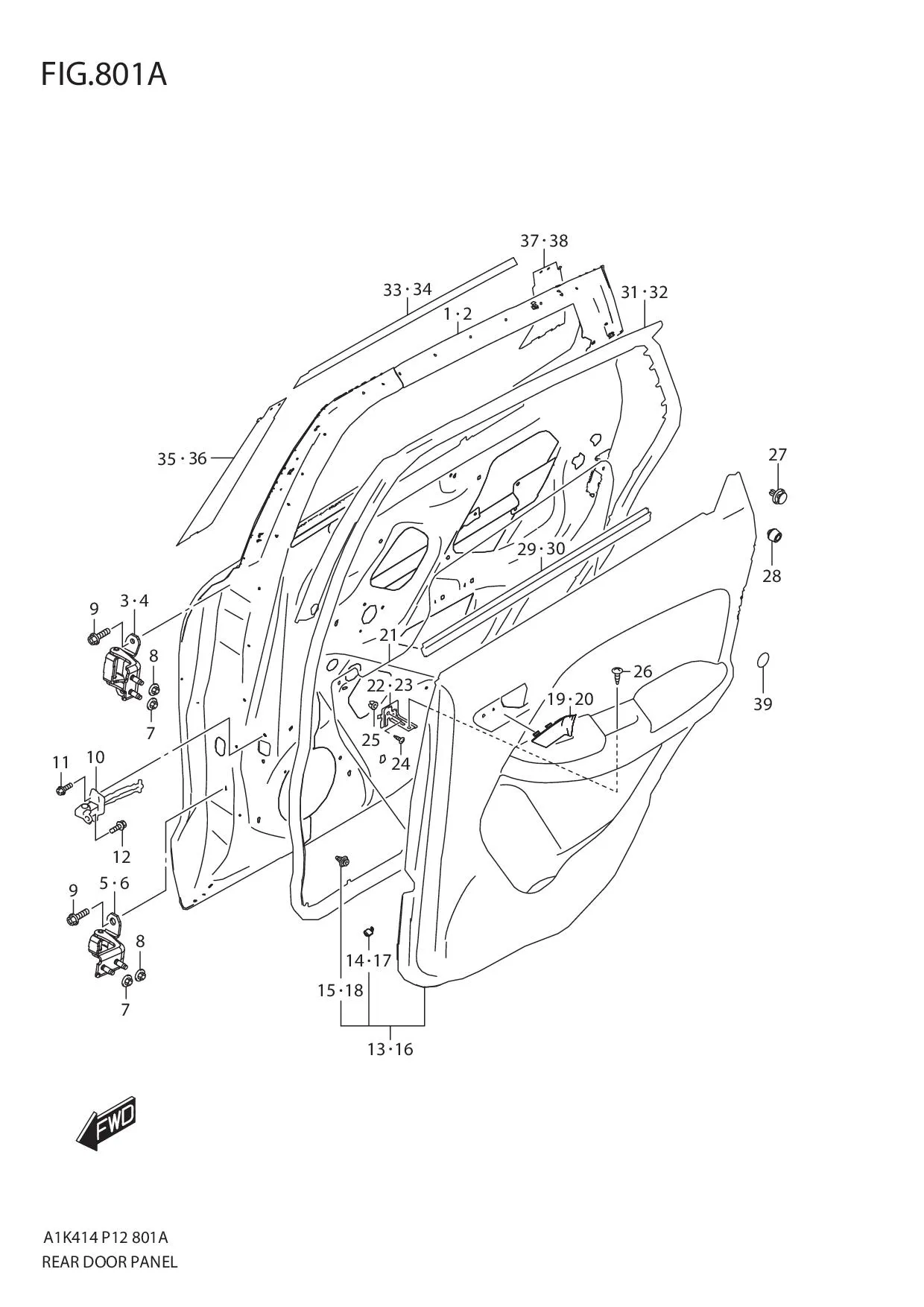

FIG.801A REAR DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	68003M68P00-000	PANEL ASSY, REAR DOOR RH	1	Rp3.931.500
2	68004M68P00-000	PANEL ASSY, REAR DOOR LH	1	Rp3.931.500
3	69410-68L00-000 SUB: 69410B68L00N000	HINGE, RR DOOR UPR RH	1	Rp75.500
4	69420-68L00-000 SUB: 69420B68L00N000	HINGE, RR DOOR UPR LH	1	Rp77.000
5	69430-68L00-000	HINGE, RR DOOR LWR RH	1	Rp474.000
6	69440-68L00-000	HINGE, RR DOOR LWR LH	1	Rp419.500
7	08361-2508A-000	NUT	4	Rp16.500
8	09159M08151-000	NUT	4	Rp11.500
9	09103M08557-000 SUB: 09103M08537-000	BOLT (8X24)	8	Rp8.500
10	81830M75L01-000	STOP, REAR DOOR OPEN	2	Rp89.500
11	09103-06248-000	BOLT (6X20)	4	Rp23.500
12	09112-08015-000	BOLT (8X25)	2	Rp32.000
13	83703M68PC2-BZQ SUB: 83703M68PC1-BZQ	TRIM ASSY, REAR DOOR RH (BLACK/SILVER)	1	Rp1.020.500
14	83752M55K00-5PK	•CAP, SIDE DOOR INSIDE PULL CASE RH (BLACK)	1	Rp9.500
15	09409-10327-000 SUB: 09409M10L02-000	•CLIP RH	7	Rp5.000
16	83704M68PC1-BZQ	TRIM ASSY, REAR DOOR LH (BLACK/SILVER)	1	Rp1.020.500
17	83752M55K00-5PK	•CAP, SIDE DOOR INSIDE PULL CASE LH (BLACK)	1	Rp9.500
18	09409-10327-000 SUB: 09409M10L02-000	•CLIP LH	7	Rp5.000
19	83755M74L00-5PK	CAP, SIDE DR INSIDE HDL BEZEL RH (BLACK)	1	Rp8.500
20	83756M74L00-5PK	CAP, SIDE DR INSIDE HDL BEZEL LH (BLACK)	1	Rp8.500
21	83913M68P00-000	COVER, REAR DOOR SEALING	2	Rp13.500
22	83751M75J00-000	BRACKET, DR TRIM RH	1	Rp4.000
23	83756M75J00-000	BRACKET, DR TRIM LH	1	Rp4.000
24	03241M0612A-000	SCREW	2	Rp6.500
25	71851M70F00-000	NUT	2	Rp4.000
26	09132-05058-000	SCREW (5X12)	2	Rp14.000
27	09409-06314-5PK SUB: 09409B06314N5PK	CLIP (BLACK)	2	Rp3.500
28	82711-65J00-000	CUSHION	2	Rp34.000
29	83871M68P00-000	WEATHERSTRIP, RR DOOR INNER RH	1	Rp94.000
30	83881M68P00-000	WEATHERSTRIP, RR DOOR INNER LH	1	Rp94.000
31	84661M68P00-000	WEATHERSTRIP, REAR DOOR OPNG RH	1	Rp401.000
32	84671M68P00-000	WEATHERSTRIP, REAR DOOR OPNG LH	1	Rp401.000
33-1	83925M68P00-0CB	TAPE, REAR DOOR OUTER ROOF RH (BLACK)	1	Rp80.000	BODY COLOR:ZHJ,ZQS,ZQT,ZTN,Z4Q,ZAM
33-2	83925M68P10-0CB	TAPE, REAR DOOR OUTER ROOF RH (BLACK)	1	Rp99.000	FROM 2017-6
34-1	83926M68P00-0CB	TAPE, REAR DOOR OUTER ROOF LH (BLACK)	1	Rp80.000	BODY COLOR:ZHJ,ZQS,ZQT,ZTN,Z4Q,ZAM
34-2	83926M68P10-0CB	TAPE, REAR DOOR OUTER ROOF LH (BLACK)	1	Rp99.000	FROM 2017-6
35-1	83927M68P00-0CB	TAPE, REAR DOOR OUTER FR RH (BLACK)	1	Rp97.000	BODY COLOR:ZHJ,ZQS,ZQT,ZTN,Z4Q,ZAM
35-2	83927M68P10-0CB	TAPE, REAR DOOR OUTER FR RH (BLACK)	1	Rp112.000	FROM 2017-6
36-1	83928M68P00-0CB	TAPE, REAR DOOR OUTER FR LH (BLACK)	1	Rp97.000	BODY COLOR:ZHJ,ZQS,ZQT,ZTN,Z4Q,ZAM
36-2	83928M68P10-0CB	TAPE, REAR DOOR OUTER FR LH (BLACK)	1	Rp112.000	FROM 2017-6
37-1	83931M68P00-0CB	TAPE, REAR DOOR OUTER RR RH (BLACK)	1	Rp82.500	BODY COLOR:ZHJ,ZQS,ZQT,ZTN,Z4Q,ZAM
37-2	83931M68P10-0CB	TAPE, REAR DOOR OUTER RR RH (BLACK)	1	Rp103.000	FROM 2017-6
38-1	83932M68P00-0CB	TAPE, REAR DOOR OUTER RR LH (BLACK)	1	Rp82.500	BODY COLOR:ZHJ,ZQS,ZQT,ZTN,Z4Q,ZAM
38-2	83932M68P10-0CB	TAPE, REAR DOOR OUTER RR LH (BLACK)	1	Rp103.000	FROM 2017-6
39	77191-79F00-000 SUB: 77191M79F00-000	FILM, CUSHION	2	Rp7.500
