BALENO AK414

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANEL FIG.580A FRONT FENDER PANEL FIG.590A FRONT BODY PANEL FIG.600A FLOOR PANEL FIG.640A SIDE BODY PANEL FIG.660A ROOF PANEL FIG.717A FRONT BUMPER FIG.718A REAR BUMPER FIG.720A INSTRUMENT PANEL FIG.730A VENTILATOR FIG.732A HEATER UNIT FIG.740A CONSOLE BOX FIG.73AA HEATER CONTROL FIG.741A FLOOR CARPET FIG.745A INTERIOR TRIM FIG.750A COVER/CAP FIG.755A FUEL LID OPENER FIG.757A ROOF SIDE PAD FIG.760A ROOF LINING FIG.772A MOLDING FIG.774A SPLASH GUARD FIG.780A EMBLEM FIG.790A WINDSHIELD FIG.800A FRONT DOOR PANEL FIG.801A REAR DOOR PANEL FIG.805A BACK DOOR PANEL FIG.810A FRONT DOOR REGULATOR FIG.811A REAR DOOR REGULATOR FIG.820A FRONT DOOR LOCK FIG.821A REAR DOOR LOCK FIG.824A BACK DOOR LOCK FIG.835A MIRROR/SUNVISOR FIG.840A SEAT BELT FIG.848A FRONT LH SEAT FIG.849A FRONT RH SEAT FIG.850A REAR SEAT FIG.860A PARCEL SHELF FIG.865A FUEL TANK FIG.893A TOOL FIG.952A AIR CONDITIONER FIG.990A COMPRESSOR

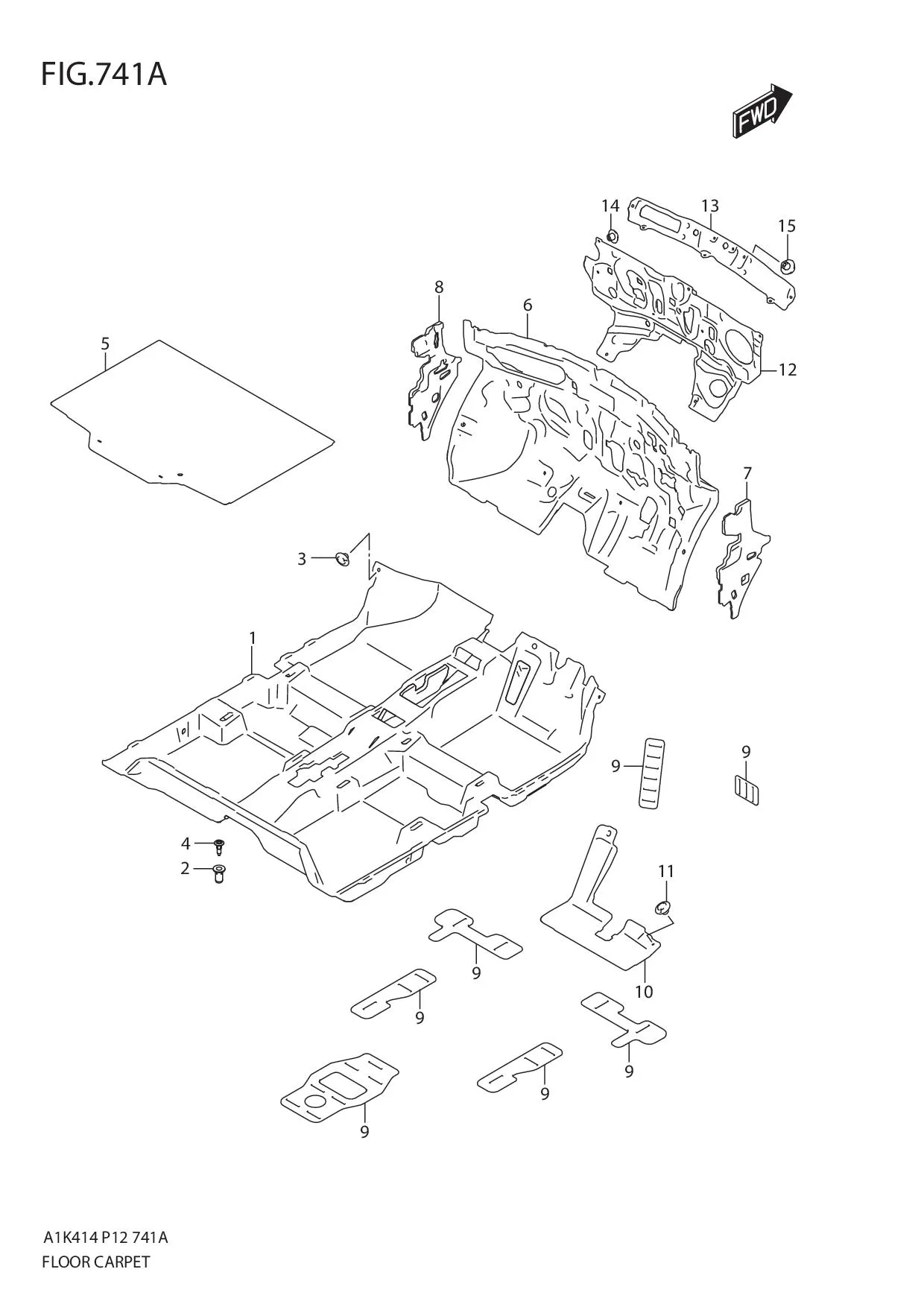

FIG.741A FLOOR CARPET

FIG.741A FLOOR CARPET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	75110M68P04-R3F SUB: 75110M68P01-R3F	BASE, FL CARPET (BLACK)	1	Rp1.483.000
2	83751-75G00-000	SEAL, CLIP	3	Rp32.000
3	09148M05L02-000	NUT	2	Rp5.500
4	09409-06314-5PK SUB: 09409B06314N5PK	CLIP (BLACK)	3	Rp3.500
5	75130M68P30-R3F	CARPET, LUGGAGE FLOOR (BLACK)	1	Rp518.500
6-1	75221M69P02-000	SILENCER, DASH PANEL INNER	1	Rp1.448.000	5MT
6-2	75221M69P12-000	SILENCER, DASH PANEL INNER	1	Rp1.455.500	4AT
7	75222M68P00-000	SILENCER, DASH SIDE PANEL RH	1	Rp129.500	5MT
8	75223M68P00-000	SILENCER, DASH SIDE PANEL LH	1	Rp129.500	5MT
9	99611-60A01-000	SHEET, SILENCER (800X1000X3)	0	Rp1.210.000	CUT AS REQUIRED
10	75411M68P00-000	PAD, DASH LOWER RH	1	Rp203.000
11	09148M05L02-000	NUT	1	Rp5.500
12	72450M68P01-000 SUB: 72450M68P00-000	SILENCER, DASH OUTER	1	Rp243.500
13	72490M68P20-000	SILENCER, COWL FRONT	1	Rp82.000
14	09148M05L02-000	NUT	3	Rp5.500
15	09148M05L02-000	NUT	7	Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
