BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.580A FRONT FENDER PANELFIG.590A FRONT BODY PANELFIG.600A FLOOR PANELFIG.640A SIDE BODY PANELFIG.660A ROOF PANELFIG.717A FRONT BUMPERFIG.718A REAR BUMPERFIG.720A INSTRUMENT PANELFIG.730A VENTILATORFIG.732A HEATER UNITFIG.740A CONSOLE BOXFIG.73AA HEATER CONTROLFIG.741A FLOOR CARPETFIG.745A INTERIOR TRIMFIG.750A COVER/CAPFIG.755A FUEL LID OPENERFIG.757A ROOF SIDE PADFIG.760A ROOF LININGFIG.772A MOLDINGFIG.774A SPLASH GUARDFIG.780A EMBLEMFIG.790A WINDSHIELDFIG.800A FRONT DOOR PANELFIG.801A REAR DOOR PANELFIG.805A BACK DOOR PANELFIG.810A FRONT DOOR REGULATORFIG.811A REAR DOOR REGULATORFIG.820A FRONT DOOR LOCKFIG.821A REAR DOOR LOCKFIG.824A BACK DOOR LOCKFIG.835A MIRROR/SUNVISORFIG.840A SEAT BELTFIG.848A FRONT LH SEATFIG.849A FRONT RH SEATFIG.850A REAR SEATFIG.860A PARCEL SHELFFIG.865A FUEL TANKFIG.893A TOOLFIG.952A AIR CONDITIONERFIG.990A COMPRESSOR

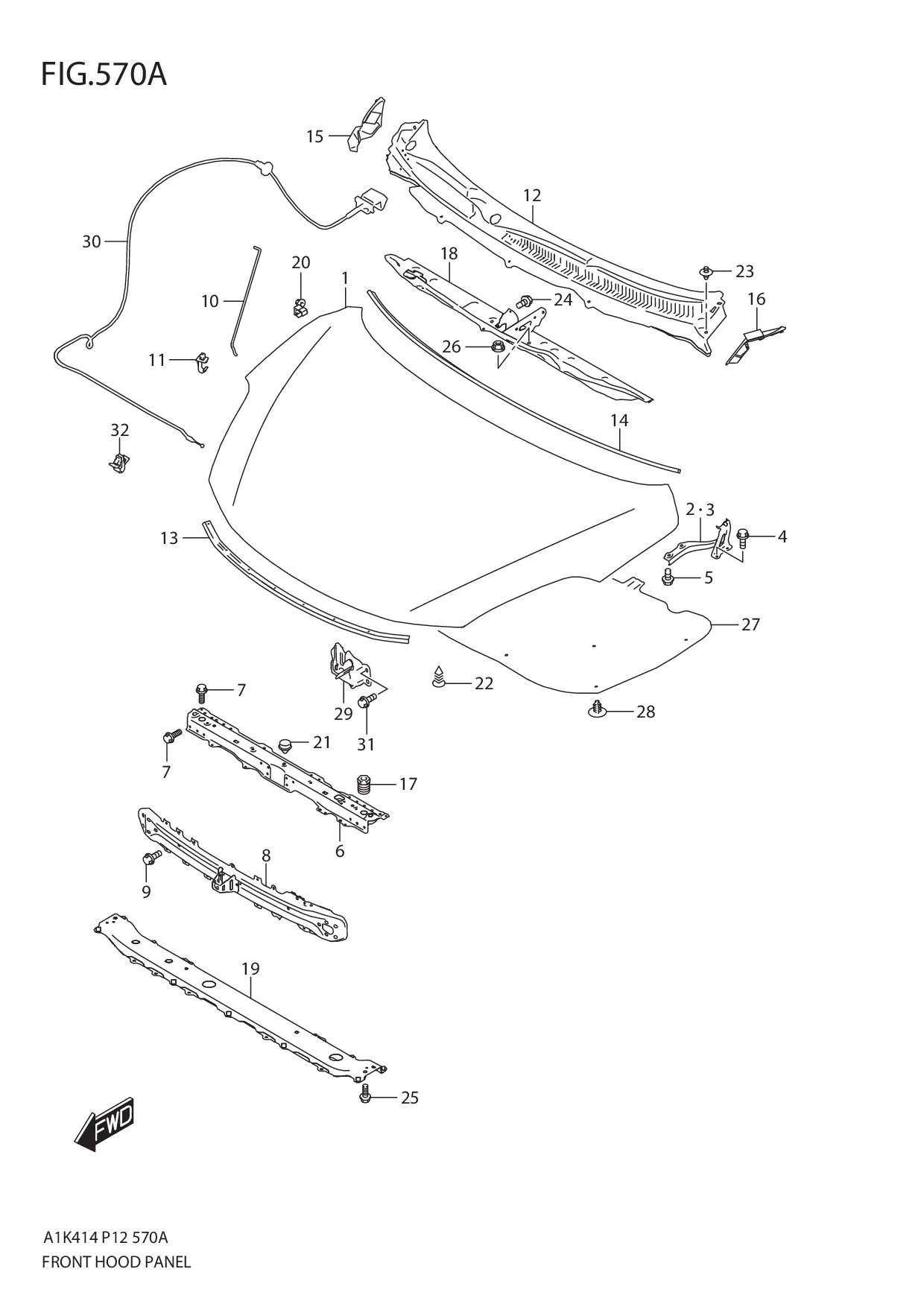

FIG.570A FRONT HOOD PANEL

FIG.570A FRONT HOOD PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 57300M68P10-000 PANEL, FRONT HOOD 1 Rp1.736.500
2 57410M68P00-000 HINGE, FRONT HOOD RH 1 Rp110.500
3 57420M68P00-000 HINGE, FRONT HOOD LH 1 Rp110.500
4 01550M0612A-000 BOLT 4 Rp5.000
5 01550M0612A-000 BOLT 4 Rp5.000
6 58230M68P11-000
SUB: 58230M68P10-000		 MEMBER, HOOD LOCK 1 Rp402.000
7 01550M0612A-000 BOLT 8 Rp5.000
8 58270M68P10-000 MEMBER, FRONT BUMPER 1 Rp522.000
9 01550-0820A-000
SUB: 01550B0820AN000		 BOLT 6 Rp5.500
10 72311M68P01-000
SUB: 72311M68P00-000		 STAY, FRONT HOOD 1 Rp21.500
11 72312M68K00-000 HOLDER, FR HOOD STAY 1 Rp5.500
12 72330M68P00-5PK GARNISH, COWL TOP (BLACK) 1 Rp419.500
13 72361M68P01-000 SEAL, HOOD FR 1 Rp34.500
14 72370M68P00-000 SEAL, HOOD RR 1 Rp54.500
15 72371M68P00-5PK GARNISH, COWL TOP SIDE RH (BLACK) 1 Rp14.500
16 72372M68P00-5PK GARNISH, COWL TOP SIDE LH (BLACK) 1 Rp14.500
17 72372M70F10-000 CUSHION, FR HOOD SIDE 2 Rp6.000
18 72380M68P00-000 PANEL, FR COWL UPPER 1 Rp547.000
19 72390M68P00-000 CROSSMEMBER, FRONT LOWER 1 Rp641.500
20 09209M09L02-000 LINKAGE 1 Rp4.500
21 09321-10023-000
SUB: 09321B10023N000		 CUSHION 1 Rp6.000
22 09409-10304-000 CLIP 8 Rp5.000
23 09409M07L02-5PK CLIP (BLACK) 5 Rp7.500
24 01550M0612A-000 BOLT 1 Rp5.000
25 02162-0616A-000 SCREW 4 Rp3.000
26 08316-1006A-000
SUB: 08316B1006AN000		 NUT 4 Rp2.000
27 72440M68P00-000 SILENCER, FRONT HOOD 1 Rp219.500
28 09409M07346-000 CLIP 11 Rp5.500
29 82110M68P20-000 LATCH, HOOD 1 Rp183.000
30 82160M68P01-000
SUB: 82160M68P00-000		 CABLE, HOOD LATCH RELEASE 1 Rp75.000
31 02162-0616A-000 SCREW 3 Rp3.000
32 76238M70F00-000 CLAMP, RELEASE CABLE FR 4 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
