BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.580A FRONT FENDER PANELFIG.590A FRONT BODY PANELFIG.600A FLOOR PANELFIG.640A SIDE BODY PANELFIG.660A ROOF PANELFIG.717A FRONT BUMPERFIG.718A REAR BUMPERFIG.720A INSTRUMENT PANELFIG.730A VENTILATORFIG.732A HEATER UNITFIG.740A CONSOLE BOXFIG.73AA HEATER CONTROLFIG.741A FLOOR CARPETFIG.745A INTERIOR TRIMFIG.750A COVER/CAPFIG.755A FUEL LID OPENERFIG.757A ROOF SIDE PADFIG.760A ROOF LININGFIG.772A MOLDINGFIG.774A SPLASH GUARDFIG.780A EMBLEMFIG.790A WINDSHIELDFIG.800A FRONT DOOR PANELFIG.801A REAR DOOR PANELFIG.805A BACK DOOR PANELFIG.810A FRONT DOOR REGULATORFIG.811A REAR DOOR REGULATORFIG.820A FRONT DOOR LOCKFIG.821A REAR DOOR LOCKFIG.824A BACK DOOR LOCKFIG.835A MIRROR/SUNVISORFIG.840A SEAT BELTFIG.848A FRONT LH SEATFIG.849A FRONT RH SEATFIG.850A REAR SEATFIG.860A PARCEL SHELFFIG.865A FUEL TANKFIG.893A TOOLFIG.952A AIR CONDITIONERFIG.990A COMPRESSOR

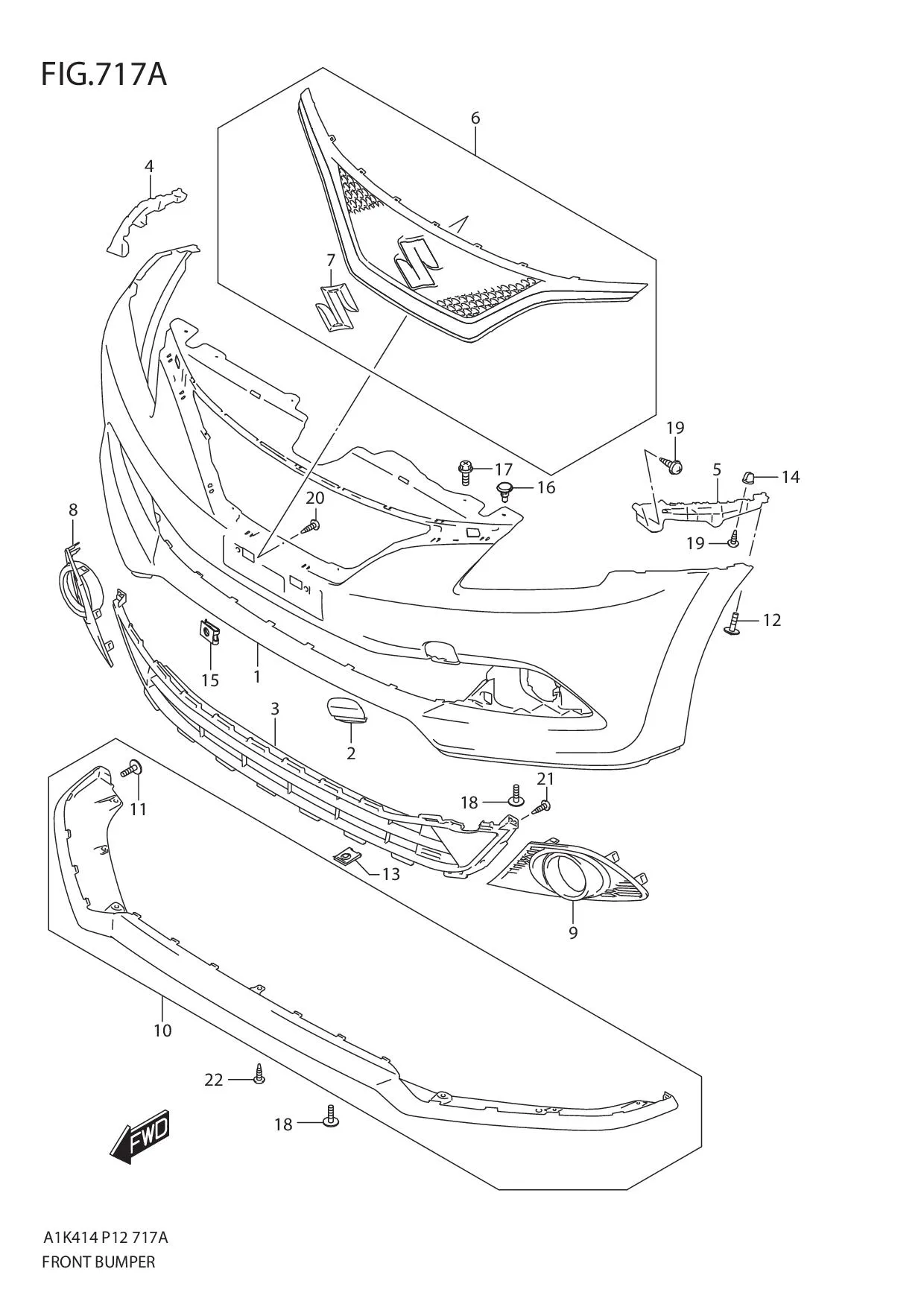

FIG.717A FRONT BUMPER

FIG.717A FRONT BUMPER
No No. Part Description Qty Price Per Pcs Remarks
1 71711M68P10-799 BUMPER, FR (PRIMARY) 1 Rp2.204.500 PAINT TO MATCH
2 71712M68P10-000 CAP, FR BUMPER 1 Rp35.500
3 71721M68P10-5PK GRILLE, RADIATOR LOWER (BLACK) 1 Rp125.500
4 71731M68P00-000 HOLDER, FR BUMPER SIDE RH 1 Rp34.500
5 71732M68P00-000 HOLDER, FR BUMPER SIDE LH 1 Rp34.500
6 71740M68P30-CP4 GRILLE, RADIATOR UPPER (GRAY/CHROME) 1 Rp1.209.000
7 77811-65J00-0PG •EMBLEM, MARK S (CHROME) 1 Rp131.500
8 71751M68P50-5PK BEZEL, FRONT FOG LAMP RH (BLACK) 1 Rp35.500
9 71761M68P50-5PK BEZEL, FRONT FOG LAMP LH (BLACK) 1 Rp35.500
10 71771M68P01-ZSC
SUB: 71771M68P00-ZSC		 EXTENSION, FR BPR LWR (GRAY) 1 Rp1.905.000
11 09132M05063-000 •SCREW (5X16) 2 Rp5.500
12 09136-05068-000 SCREW (5X20) 2 Rp15.000
13 09148M05071-000 NUT 1 Rp6.000
14 09148M05072-000 NUT 2 Rp5.500
15 08315-11069-000
SUB: 09148M06022-000		 NUT 2 Rp2.500
16 09409M08006-000
SUB: 09409M08L01-000		 CLIP 2 Rp5.000
17 02162-0616A-000 SCREW 4 Rp3.000
18 03241M0516A-000 SCREW 4 Rp4.500
19 03541-0512B-000
SUB: 03541B0512BN000		 SCREW 6 Rp4.000
20 03541-0516A-000
SUB: 03541M0516A-000		 SCREW 7 Rp3.500
21 03541-0516A-000
SUB: 03541M0516A-000		 SCREW 2 Rp3.500
22 03541-0516A-000
SUB: 03541M0516A-000		 SCREW 3 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
