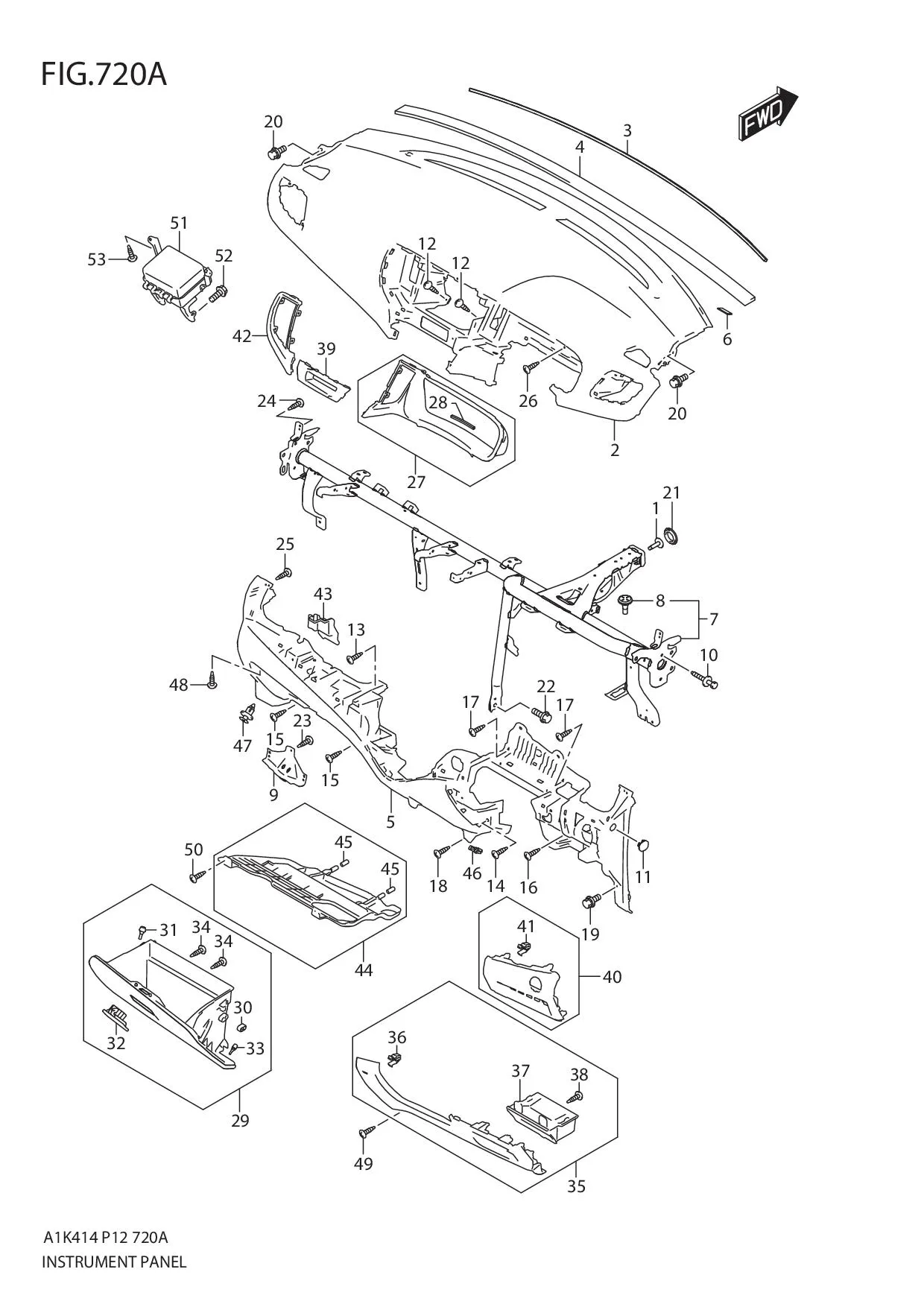

FIG.720A INSTRUMENT PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	17812M77P00-000	BOLT, RDTR UPPER	1	Rp11.500
2	73110M68P00-5PK	PANEL, INSTRUMENT MAIN UPR (BLACK)	1	Rp871.000
3	73114-61M00-000	SILENCER, I/P TOP	1	Rp315.500
4	73118M74L00-000	SEAL, I/P	1	Rp8.000
5	73121M68P00-5PK	PANEL, INSTRUMENT MAIN LOWER (BLACK)	1	Rp672.500
6	73123-61M00-000	FELT	5	Rp16.000
7	73200M68P01-000	MEMBER, STEERING SUPPORT	1	Rp571.500
8	09321M06026-000	•CUSHION	1	Rp4.500
9	73250M68P00-000	REINF, GLOVE BOX UPPER	1	Rp17.000
10	73291-50G20-000	BOLT, STRG SPRT MBR SIDE	4	Rp42.500
11	73871-73H00-5PK	CAP, I/P SIDE (BLACK)	3	Rp43.500
12	09132-05049-000	SCREW (5X12)	2	Rp21.000
13	09132-05049-000	SCREW (5X12)	2	Rp21.000
14	09132-05049-000	SCREW (5X12)	1	Rp21.000
15	09132-05049-000	SCREW (5X12)	2	Rp21.000
16	09132-05049-000	SCREW (5X12)	1	Rp21.000
17	09132-05049-000	SCREW (5X12)	2	Rp21.000
18	09132-05049-000	SCREW (5X12)	1	Rp21.000
19	09138-06049-000	BOLT (6X12)	1	Rp17.000
20	09138-06049-000	BOLT (6X12)	2	Rp17.000
21	09250-35005-000	CAP (OD:43.5)	1	Rp27.000
22	01551-0816C-000	BOLT	1	Rp13.500
23	03541-0516A-000 SUB: 03541M0516A-000	SCREW	3	Rp3.500
24	03541-0516A-000 SUB: 03541M0516A-000	SCREW	2	Rp3.500
25	03541-0516A-000 SUB: 03541M0516A-000	SCREW	2	Rp3.500
26	03541-0516A-000 SUB: 03541M0516A-000	SCREW	1	Rp3.500
27	73310M68P11-GJL	PANEL, INSTRUMENT CLUSTER (BLACK/SILVER)	1	Rp133.000
28	73314-62J00-000	•SEAL, I/P CLUSTER	1	Rp34.000
29	73410M68P00-5PK	BOX, GLOVE (BLACK)	1	Rp348.000
30	73413M65D00-000	•CUSHION, GLOVE BOX	2	Rp6.500
31	73413M82C00-000	•CUSHION	2	Rp11.500
32	73430M75J00-5PK	•LOCK, GLOVE BOX (BLACK)	1	Rp40.500
33	73461M53M00-000	•CUSHION, GLOVE BOX	2	Rp7.000
34	03541-0412A-000 SUB: 03541B0412AN000	•SCREW	2	Rp3.500
35	73810M68P10-5PK	COVER, STRG COLUMN HOLE (BLACK)	1	Rp140.500
36	09409M08344-000	•CLIP	1	Rp4.500
37	73812M68P00-5PK	•POCKET, STRG COLUMN HOLE COVER (BLACK)	1	Rp31.000
38	03541-0516A-000 SUB: 03541M0516A-000	•SCREW	4	Rp3.500
39	73831M68P00-5PK	GARNISH, I/P SW (BLACK)	1	Rp16.000
40	73832M68P10-5PK	BEZEL, I/P SW (BLACK)	1	Rp38.000
41	09409M08344-000	•CLIP	1	Rp4.500
42	73841M68P10-GJL	GARNISH, I/P CTR LOUVER (BLACK/SILVER)	1	Rp47.500
43	73861M68P00-000	COVER, GLOVE BOX SIDE	1	Rp16.500
44	73891M68P00-000	COVER, I/P UNDER ASST	1	Rp62.500
45	73132-57L00-000	•CAP, I/P PIN	2	Rp38.000
46	09148M05L04-000	NUT	1	Rp5.000
47	09409-06322-5PK	CLIP (BLACK)	1	Rp19.000
48	03541-0516A-000 SUB: 03541M0516A-000	SCREW	1	Rp3.500
49	03541-0516A-000 SUB: 03541M0516A-000	SCREW	2	Rp3.500
50	03541-0516A-000 SUB: 03541M0516A-000	SCREW	2	Rp3.500
51	73910M68P01-000 SUB: 73910M68P00-000	MODULE ASSY, PASSENGER AIR BAG	1	Rp2.776.500
52	01551-0816C-000	BOLT	2	Rp13.500
53	03541-0516A-000 SUB: 03541M0516A-000	SCREW	2	Rp3.500
