Preview Engine Transmission Electrical Suspension Body

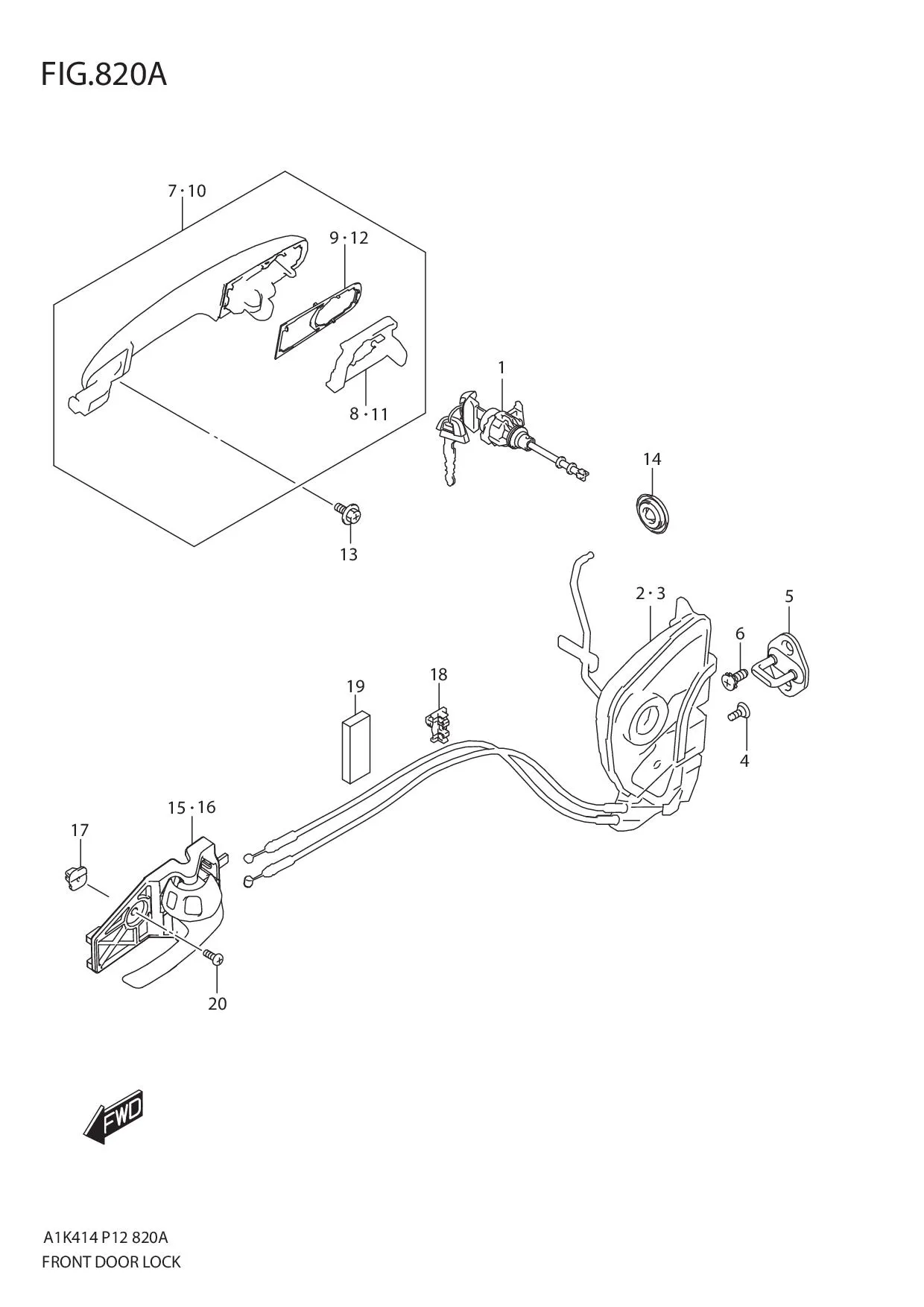

FIG.820A FRONT DOOR LOCK

No	No. Part	Description	Qty	Price Per Pcs
1	82271M68810-000	CYLINDER SET, FR DR LATCH RH	1	Rp609.000
2	82201M68P43-000 SUB: 82201M68P40-000	LATCH ASSY, FRONT DOOR RH	1	Rp665.000
3	82202M68P54-000 SUB: 82202M68P51-000	LATCH ASSY, FRONT DOOR LH	1	Rp445.500
4	09137-06032-000	SCREW (6X18)	6	Rp16.500
5	82610M76M01-000 SUB: 82610M76M00-000	STRIKER, DR LATCH	2	Rp27.000
6	09137-08014-000 SUB: 09137-08004-000	SCREW (8X18)	4	Rp23.000
7	82810M68812-0PG SUB: 82810M68810-0PG	HANDLE SET, FR DR OUT RH (CHROME)	1	Rp786.000
8	82812M68P00-000	•BRACKET, FR DR OUT HANDLE RH	1	Rp13.000
9	82813M68P00-000	•PAD, FRONT DOOR OUT HANDLE	1	Rp4.500
10	82820M68821-0PG SUB: 82820M68820-0PG	HANDLE SET, FR DR OUT LH (CHROME)	1	Rp786.000
11	82822M68P00-000	•BRACKET, FR DR OUT HANDLE LH	1	Rp13.000
12	82813M68P00-000	•PAD, FRONT DOOR OUT HANDLE	1	Rp4.500
13	09116-06168-000 SUB: 09116-06001-000	BOLT (6X12)	4	Rp15.000
14	09250M25L02-000 SUB: 09250M25L01-000	CAP (OD:25.0)	2	Rp5.500
15	83110M74L10-C48	HANDLE, SIDE DOOR INSIDE RH (CHROME/BLACK)	1	Rp111.000
16	83130M74L10-C48	HANDLE, SIDE DOOR INSIDE LH (CHROME/BLACK)	1	Rp111.000
17	83119M75J00-000	NUT, SIDE DOOR INSIDE HANDLE	2	Rp5.500
18	83271M50E00-000	CLIP, DR HANDLE ROD	2	Rp6.500
19	83759M53M00-000	PAD, SIDE DOOR INSIDE LOCK	6	Rp5.500
20	09132-05058-000	SCREW (5X12)	2	Rp14.000
