BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.580A FRONT FENDER PANELFIG.590A FRONT BODY PANELFIG.600A FLOOR PANELFIG.640A SIDE BODY PANELFIG.660A ROOF PANELFIG.717A FRONT BUMPERFIG.718A REAR BUMPERFIG.720A INSTRUMENT PANELFIG.730A VENTILATORFIG.732A HEATER UNITFIG.740A CONSOLE BOXFIG.73AA HEATER CONTROLFIG.741A FLOOR CARPETFIG.745A INTERIOR TRIMFIG.750A COVER/CAPFIG.755A FUEL LID OPENERFIG.757A ROOF SIDE PADFIG.760A ROOF LININGFIG.772A MOLDINGFIG.774A SPLASH GUARDFIG.780A EMBLEMFIG.790A WINDSHIELDFIG.800A FRONT DOOR PANELFIG.801A REAR DOOR PANELFIG.805A BACK DOOR PANELFIG.810A FRONT DOOR REGULATORFIG.811A REAR DOOR REGULATORFIG.820A FRONT DOOR LOCKFIG.821A REAR DOOR LOCKFIG.824A BACK DOOR LOCKFIG.835A MIRROR/SUNVISORFIG.840A SEAT BELTFIG.848A FRONT LH SEATFIG.849A FRONT RH SEATFIG.850A REAR SEATFIG.860A PARCEL SHELFFIG.865A FUEL TANKFIG.893A TOOLFIG.952A AIR CONDITIONERFIG.990A COMPRESSOR

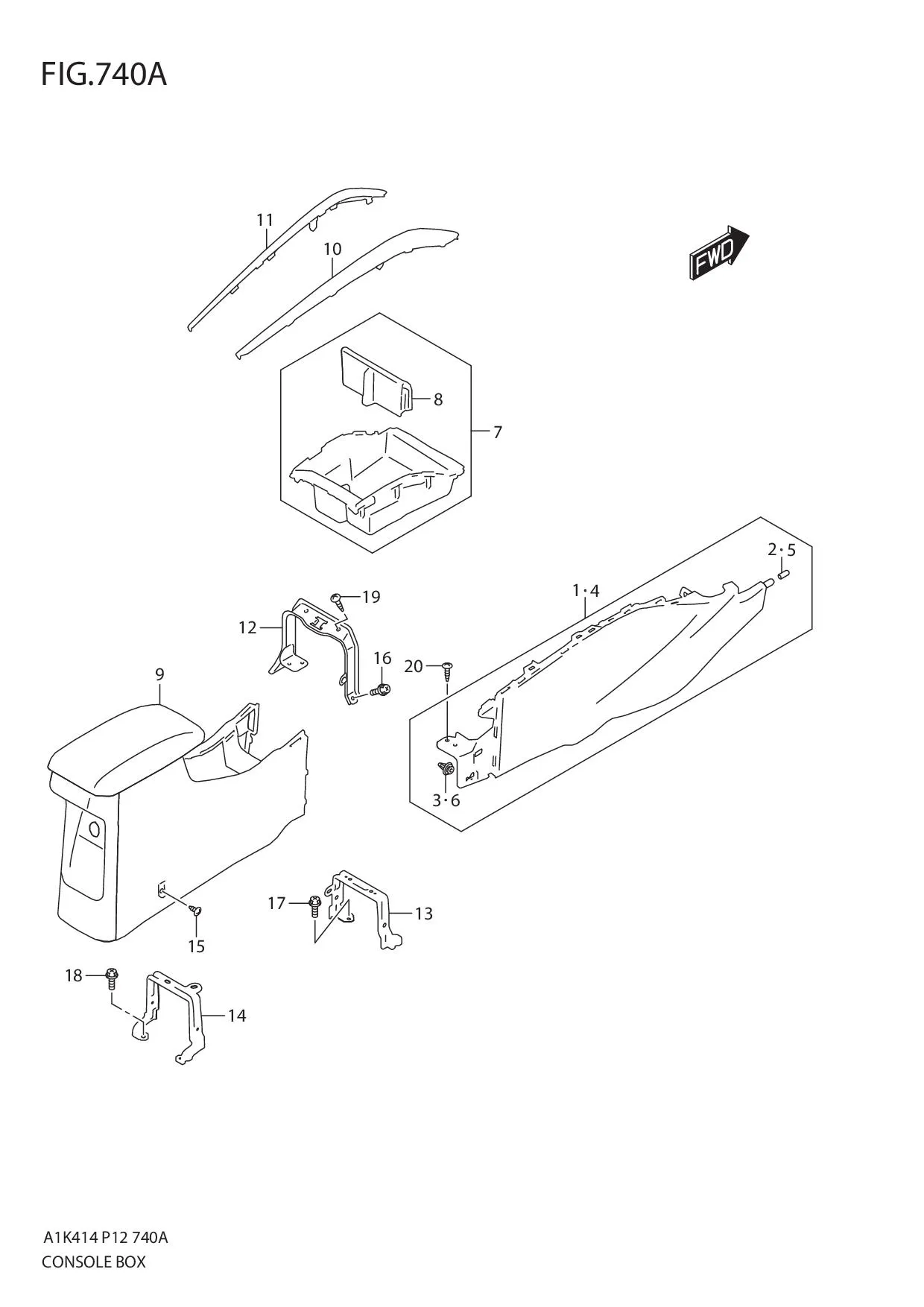

FIG.740A CONSOLE BOX

FIG.740A CONSOLE BOX
No No. Part Description Qty Price Per Pcs Remarks
1 75811M68P10-5PK COVER, FLOOR CONSOLE FR RH (BLACK) 1 Rp149.500
2 73132-57L00-000 •CAP, I/P PIN 1 Rp38.000
3 09409M10321-000 •CLIP 1 Rp5.000
4 75821M68P10-5PK COVER, FLOOR CONSOLE FR LH (BLACK) 1 Rp149.500
5 73132-57L00-000 •CAP, I/P PIN 1 Rp38.000
6 09409M10321-000 •CLIP 1 Rp5.000
7 75840M68P10-5PK HOLDER, CUP (BLACK) 1 Rp87.500
8 75842M68P00-5PK •SUPPORT, CUP HOLDER (BLACK) 1 Rp27.000
9 75850M68P00-5PK BASE, FLOOR CONSOLE REAR (BLACK) 1 Rp1.719.500
10 75861M68P10-ZML ORNAMENT, FLOOR CONSOLE FR RH (SILVER) 1 Rp111.000
11 75862M68P10-ZML ORNAMENT, FLOOR CONSOLE FR LH (SILVER) 1 Rp111.000
12 75880M68P01-000 BRACKET, FL CONSOLE COVER 1 Rp37.000
13 75881M68P00-000 BRACKET, FLOOR CONSOLE BOX FR 1 Rp22.500
14 75882M68P00-000 BRACKET, FLOOR CONSOLE BOX RR 1 Rp31.000
15 09125M05144-000 SCREW (5X16) 2 Rp7.500
16 02162-0612A-000 SCREW 2 Rp11.000
17 02162-0612A-000 SCREW 2 Rp11.000
18 02162-0612A-000 SCREW 2 Rp11.000
19 03141-0516B-000
SUB: 03141M0512A-000		 SCREW 2 Rp3.500
20 03141-0516B-000
SUB: 03141M0512A-000		 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
