BALENO AK414

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANEL FIG.580A FRONT FENDER PANEL FIG.590A FRONT BODY PANEL FIG.600A FLOOR PANEL FIG.640A SIDE BODY PANEL FIG.660A ROOF PANEL FIG.717A FRONT BUMPER FIG.718A REAR BUMPER FIG.720A INSTRUMENT PANEL FIG.730A VENTILATOR FIG.732A HEATER UNIT FIG.740A CONSOLE BOX FIG.73AA HEATER CONTROL FIG.741A FLOOR CARPET FIG.745A INTERIOR TRIM FIG.750A COVER/CAP FIG.755A FUEL LID OPENER FIG.757A ROOF SIDE PAD FIG.760A ROOF LINING FIG.772A MOLDING FIG.774A SPLASH GUARD FIG.780A EMBLEM FIG.790A WINDSHIELD FIG.800A FRONT DOOR PANEL FIG.801A REAR DOOR PANEL FIG.805A BACK DOOR PANEL FIG.810A FRONT DOOR REGULATOR FIG.811A REAR DOOR REGULATOR FIG.820A FRONT DOOR LOCK FIG.821A REAR DOOR LOCK FIG.824A BACK DOOR LOCK FIG.835A MIRROR/SUNVISOR FIG.840A SEAT BELT FIG.848A FRONT LH SEAT FIG.849A FRONT RH SEAT FIG.850A REAR SEAT FIG.860A PARCEL SHELF FIG.865A FUEL TANK FIG.893A TOOL FIG.952A AIR CONDITIONER FIG.990A COMPRESSOR

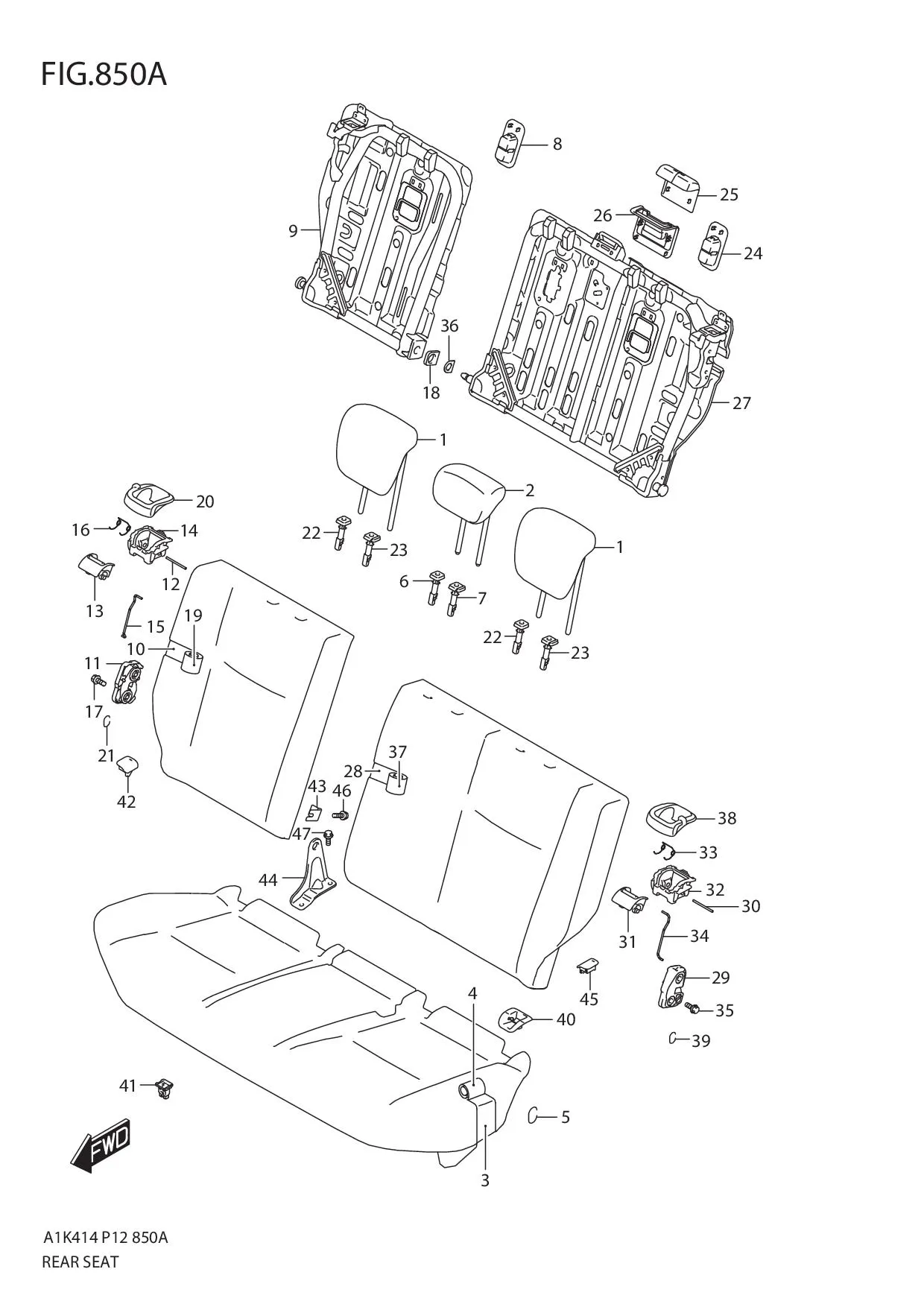

FIG.850A REAR SEAT

No	No. Part	Description	Qty	Price Per Pcs
1	86401M68P10-PYD	HEADRESTRAINT ASSY, RR (BLACK)	2	Rp460.000
2	86401M68P20-PYD	HEADRESTRAINT ASSY, RR CTR (BLACK)	1	Rp387.000
3	87160M68PA1-000 SUB: 87160M68PA0-000	PAD, RR CUSH RH	1	Rp1.556.000
4	87180M68PA0-CSQ	TRIM, RR CUSH RH (BLACK)	1	Rp1.263.500
5	09387-19001-000 SUB: 09387B19001N000	RING (OD:22.6)	37	Rp9.000
6	85341M79M10-5PK	GUIDE, HEADRESTRAINT CTR (BLACK)	1	Rp9.500
7	85840M79M20-5PK	GUIDE, HEADRESTRAINT CTR (BLACK)	1	Rp11.000
8	87225M68P00-5PK	COVER, TETHER ANCHOR RH (BLACK)	1	Rp20.500
9	87310M68PG0-000	FRAME, RR BACK RH	1	Rp733.500
10	87360M68PG0-000	PAD, RR BACK RH	1	Rp260.500
11	87480M83P00-000	LOCK ASSY, RR BACK RH	1	Rp470.500
12	87293-54G00-000	PIN, REAR BACK KNOB RH	1	Rp50.000
13	87483-80J11-5PK	KNOB, RR BACK LOCK RH (BLACK)	1	Rp86.500
14	87484-80J11-000	CASE, RR BACK LOCK RH	1	Rp177.000
15	87485M68PA0-000	WIRE, RR BACK LOCK RH	1	Rp10.500
16	87486M68P00-000	SPRING, RR BACK KNOB RH	1	Rp11.500
17	01550-0835A-000 SUB: 01550B0835AN000	BOLT	2	Rp3.500
18	87341M68P00-000	PAD, RR BACK HINGE RH	1	Rp25.000
19	87380M68PG0-CSQ	TRIM, RR BACK RH (BLACK)	1	Rp1.406.000
20	87482M68P00-5PK	BEZEL, RR BACK LOCK RH (BLACK)	1	Rp24.000
21	09387-19001-000 SUB: 09387B19001N000	RING (OD:22.6)	3	Rp9.000
22	85341M79M10-5PK	GUIDE, HEADRESTRAINT (BLACK)	2	Rp9.500
23	85840M79M20-5PK	GUIDE, HEADRESTRAINT (BLACK)	2	Rp11.000
24	87225M68P00-5PK	COVER, TETHER ANCHOR LH (BLACK)	1	Rp20.500
25	87227M68PA0-5PK	COVER, SHOULDER ANCHOR LH (BLACK)	1	Rp42.000
26	87321M68PA0-000	COVER, SHOULDER ANCHOR INNER LH	1	Rp44.000
27	87810M68PG0-000	FRAME, RR BACK LH	1	Rp1.445.500
28	87860M68PG0-000	PAD, RR BACK LH	1	Rp433.000
29	87980M83P00-000	LOCK ASSY, RR BACK LH	1	Rp470.500
30	87293-54G00-000	PIN, REAR BACK KNOB LH	1	Rp50.000
31	87483-80J11-5PK	KNOB, RR BACK LOCK LH (BLACK)	1	Rp86.500
32	87484-80J11-000	CASE, RR BACK LOCK LH	1	Rp177.000
33	87486M68P00-000	SPRING, RR BACK KNOB LH	1	Rp11.500
34	87985M68PA0-000	WIRE, RR BACK LOCK LH	1	Rp10.500
35	01550-0835A-000 SUB: 01550B0835AN000	BOLT	2	Rp3.500
36	87342M68PA0-000	PAD, RR BACK HINGE LH	1	Rp15.000
37	87880M68PG0-CSQ	TRIM, RR BACK LH (BLACK)	1	Rp1.406.000
38	87982M68P00-5PK	BEZEL, RR BACK LOCK LH (BLACK)	1	Rp24.000
39	09387-19001-000 SUB: 09387B19001N000	RING (OD:22.6)	3	Rp9.000
40	87228M68P00-5PK	BEZEL, LOWER ANCHOR (BLACK)	4	Rp17.500
41	87460-76G11-000 SUB: 87460-76G01-000	HOOK, RR SEAT CUSH	2	Rp39.000
42	87491M68P10-5PK	COVER, RR SEAT HINGE RH (BLACK)	1	Rp10.000
43	87911M68P00-000	BRACKET, RR HINGE	1	Rp24.000
44	87950M68P00-000	HINGE, RR CENTER	1	Rp138.000
45	87991M68P10-5PK	COVER, RR SEAT HINGE LH (BLACK)	1	Rp10.000
46	01550M0612A-000	BOLT	1	Rp5.000
47	01551-1025A-000	BOLT	2	Rp29.000
