BALENO AK414

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANEL FIG.580A FRONT FENDER PANEL FIG.590A FRONT BODY PANEL FIG.600A FLOOR PANEL FIG.640A SIDE BODY PANEL FIG.660A ROOF PANEL FIG.717A FRONT BUMPER FIG.718A REAR BUMPER FIG.720A INSTRUMENT PANEL FIG.730A VENTILATOR FIG.732A HEATER UNIT FIG.740A CONSOLE BOX FIG.73AA HEATER CONTROL FIG.741A FLOOR CARPET FIG.745A INTERIOR TRIM FIG.750A COVER/CAP FIG.755A FUEL LID OPENER FIG.757A ROOF SIDE PAD FIG.760A ROOF LINING FIG.772A MOLDING FIG.774A SPLASH GUARD FIG.780A EMBLEM FIG.790A WINDSHIELD FIG.800A FRONT DOOR PANEL FIG.801A REAR DOOR PANEL FIG.805A BACK DOOR PANEL FIG.810A FRONT DOOR REGULATOR FIG.811A REAR DOOR REGULATOR FIG.820A FRONT DOOR LOCK FIG.821A REAR DOOR LOCK FIG.824A BACK DOOR LOCK FIG.835A MIRROR/SUNVISOR FIG.840A SEAT BELT FIG.848A FRONT LH SEAT FIG.849A FRONT RH SEAT FIG.850A REAR SEAT FIG.860A PARCEL SHELF FIG.865A FUEL TANK FIG.893A TOOL FIG.952A AIR CONDITIONER FIG.990A COMPRESSOR

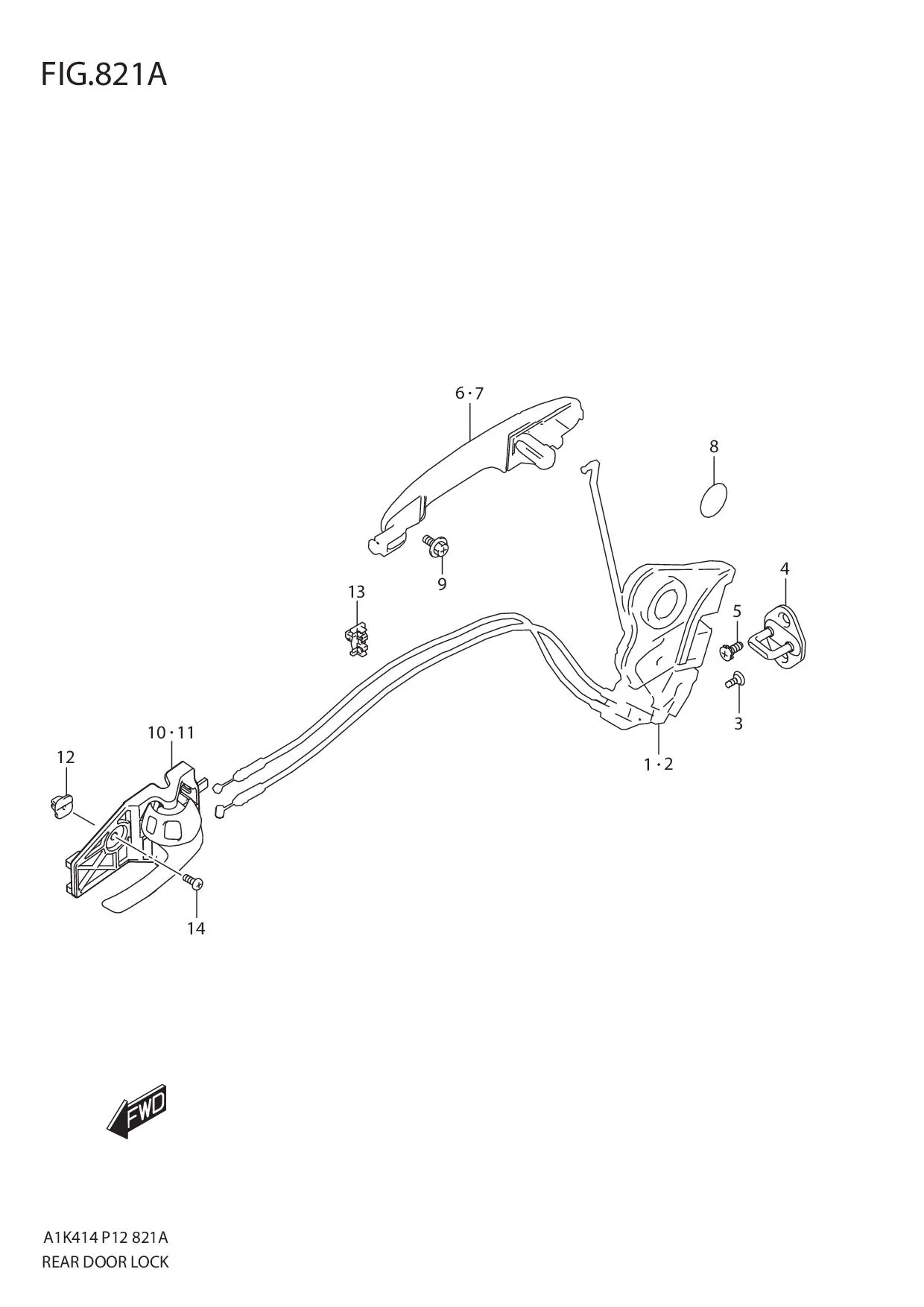

FIG.821A REAR DOOR LOCK

FIG.821A REAR DOOR LOCK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	82301M68P15-000 SUB: 82301M68P11-000	LATCH ASSY, RR DR RH	1	Rp561.000
2	82302M68P14-000 SUB: 82302M68P11-000	LATCH ASSY, RR DR LH	1	Rp411.000
3	09137-06032-000	SCREW (6X18)	6	Rp16.500
4	82610M76M01-000 SUB: 82610M76M00-000	STRIKER, DR LATCH	2	Rp27.000
5	09137-08014-000 SUB: 09137-08004-000	SCREW (8X18)	4	Rp23.000
6	82830M68P20-0PG	HANDLE, REAR DOOR OUT RH (CHROME)	1	Rp464.000
7	82840M68P20-0PG	HANDLE, REAR DOOR OUT LH (CHROME)	1	Rp464.000
8	83919M68P00-000	SHEET, REAR DOOR OUT HANDLE	2	Rp4.500
9	09116-06168-000 SUB: 09116-06001-000	BOLT (6X12)	4	Rp15.000
10	83110M74L10-C48	HANDLE, SIDE DOOR INSIDE RH (CHROME/BLACK)	1	Rp111.000
11	83130M74L10-C48	HANDLE, SIDE DOOR INSIDE LH (CHROME/BLACK)	1	Rp111.000
12	83119M75J00-000	NUT, SIDE DOOR INSIDE HANDLE	2	Rp5.500
13	83271M50E00-000	CLIP, DR HANDLE ROD	2	Rp6.500
14	09132-05058-000	SCREW (5X12)	2	Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
